Wastewater/Activity/PacpInspection/1.0Aug 4, 2017, 10:59 AM
B 1274_B 1273_842017_042008.mp4
- Date
- 08/04/2017
- W/O
- 0640704
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01126
- PipeID
- P25169
- Time
- 3:59 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0608
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170804MDM_JOINT_OUTFALL_B_UNIT_6J
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- B 1274
- Downstream MH
- B 1273
- Dir. of Survey
- Downstream
- Length Surveyed
- 168.8 ft.
- Total Length
- 168.8 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

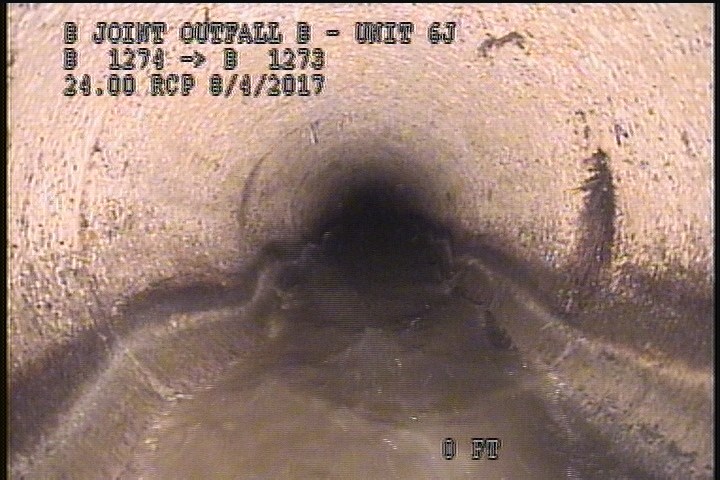

2 ft. - General Observation - MAG COAT 90% START 8:00 TO 4:00

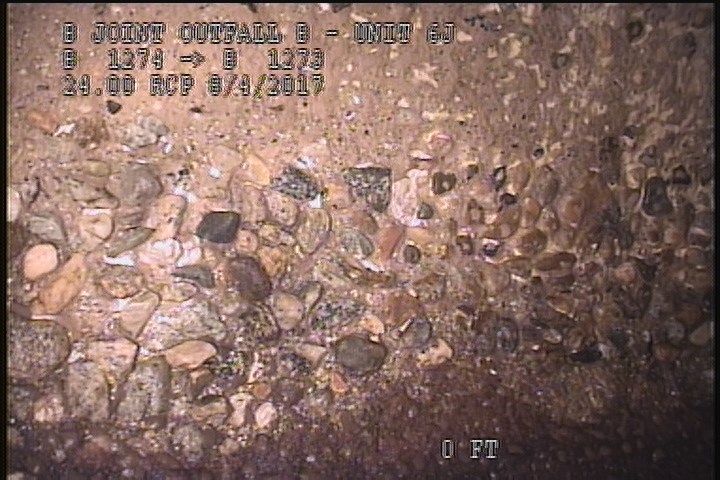

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

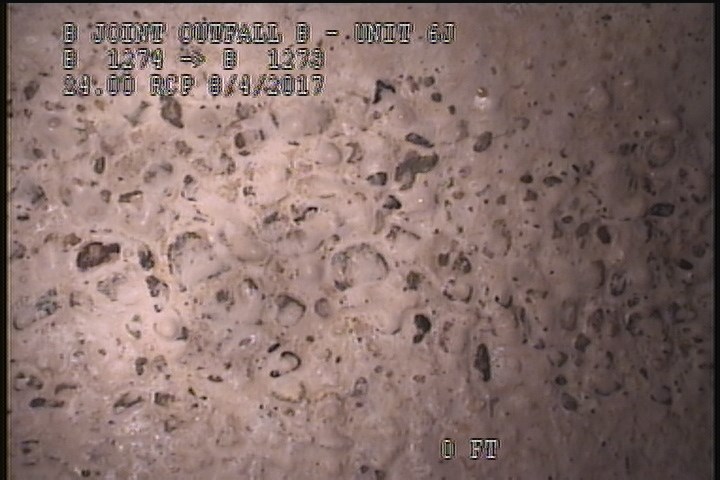

2 ft. - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES, - SEVERE AGG UNDER MAG COAT

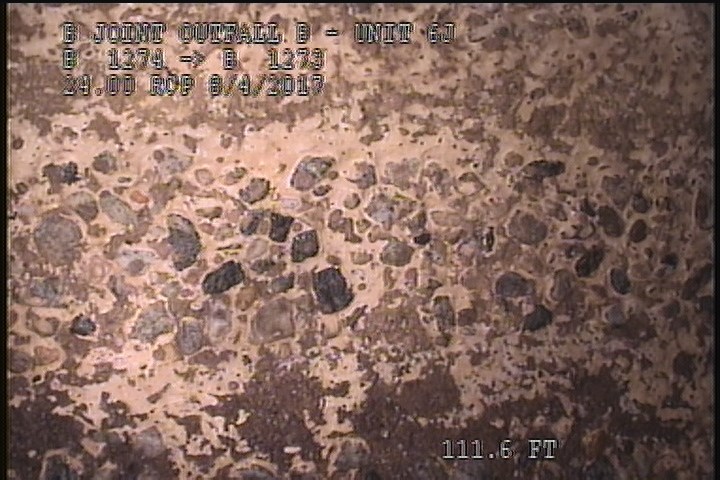

111.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COAT 90% START 8:00 TO 4:00 |
| 168.6 | MGO | 90% MAG COAT FINISH |
| 2 | SAP | SEVERE AGG |
| 0 | MWM | — |
| 163.7 | DSZ | ROCK |
| 168.8 | AMH | 4:35AM |
| 130.7 | MWM | — |
| 0 | MWL | — |
| 10.1 | RFJ | 4% |
| 0 | AMH | 4:20AM |
| 2 | SAP | SEVERE AGG UNDER MAG COAT |
| 168.6 | SAP | SEVERE AGG |
| 111.6 | SAP | SEVERE AGG |
Properties (4)
- custom_field_three
- SEVERE AGG PROJECTING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-04T03:59:14-07:00
