Wastewater/Activity/PacpInspection/1.0Feb 17, 2016, 11:54 AM
17 0052_17 0051_17022016_040858.mp4
- Date
- 02/17/2016
- W/O
- 552349
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13773
- Time
- 3:54 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3259
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- ALTADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_552349_TV17005_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Other
- Height
- 24 in.
- Upstream MH
- 17 0052
- Downstream MH
- 17 0051
- Dir. of Survey
- Downstream
- Length Surveyed
- 407.6 ft.
- Total Length
- 407.6 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 237
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 162
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 399
Observation photos (2)

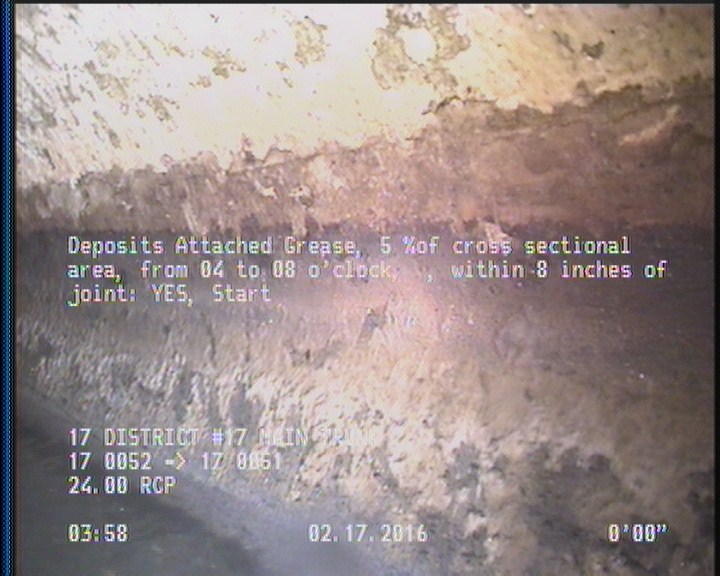

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

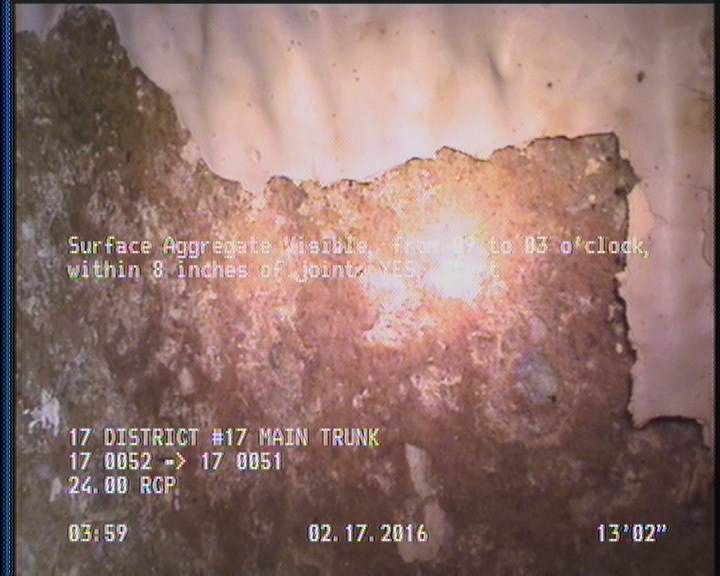

13 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 17 0052 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 407.6 | AMH | 17 0051 |
| 0 | MWL | — |
| 13 | SAV | — |
| 407.6 | DAGS | — |
| 407.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 407.6 | SAV | — |
Properties (4)
- additional_info
- SC225481
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-17T03:54:02-08:00
