Wastewater/Activity/PacpInspection/1.0Mar 1, 2017, 07:14 AM
01 1516_01 1084_28022017_231501.mp4
- Date
- 02/28/2017
- W/O
- 619125
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00210
- PipeID
- P01934
- Time
- 11:14 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- 4362
- Sewer Name
- 01 HUNTINGTON PARK TRUNK
- City
- CUDAHY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_619125_TV01246_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 01 1084
- Downstream MH
- 01 1516
- Dir. of Survey
- Upstream
- Length Surveyed
- 373.8 ft.
- Total Length
- 373.8 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 216
Observation photos (2)
15.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

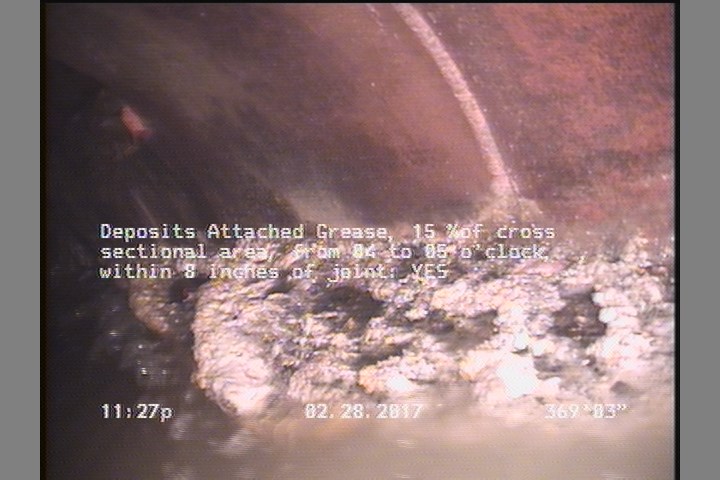

369.2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 05 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01 1084 |
| 0 | MWM | — |
| 373.8 | AMH | 01 1516 |
| 0 | MWL | — |
| 369.2 | DAGS | — |
| 369.2 | CM | — |
| 373.8 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 15.6 | CM | — |
| 373.8 | MGO | CONNECTION AT MH 1 O'CLOCK |
Properties (4)
- additional_info
- SC306874
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-28T23:14:21-08:00
