Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2017, 12:36 PM

  • 05 1801_05 1800 _22022017_043719.mpg

Date
02/22/2017
W/O
618877
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00466
PipeID
P07023
Time
4:36 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4357
Sewer Name
05 JANET LANE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Routine Assessment
Project
WO_618877_TV05053_FEB2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1801
Downstream MH
05 1800
Dir. of Survey
Downstream
Length Surveyed
264.7 ft.
Total Length
264.7 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
156
O&M Index
1
O&M Quick
411J
O&M Rating
57
Overall Index
2
Overall Quick
—
Overall Rating
213
Pipe schematic from manhole 05 1801 to 05 1800
MH: 05 1801MH: 05 1800downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 18010 ft. MWL - Water Level, 5 %of cross sectional area3.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"53.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"96.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"96.2 ft. RFL - Roots Fine Lateral, at 02 o'clock264.7 ft. AMH - Downstream Manhole, Survey Ends - 05 1800264.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish264.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

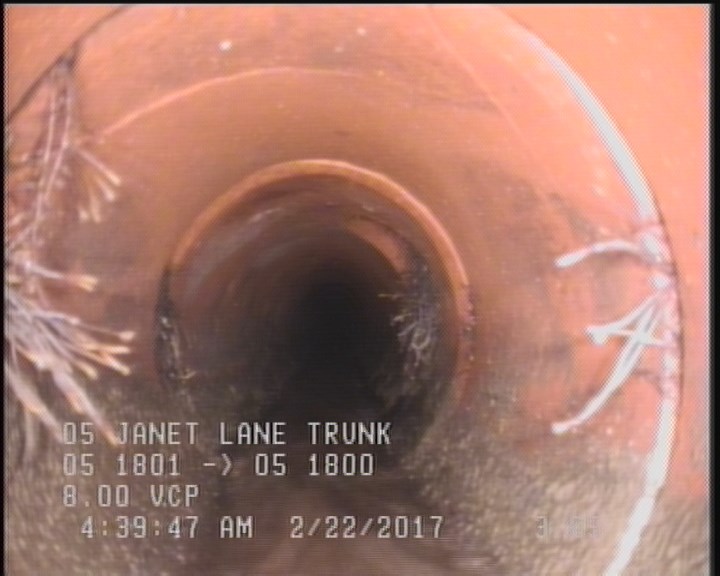

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07023Work order 618877

Observations (12)

DistanceCodeObservation
264.7AMH05 1800
0MWM—
5.9TF—
96.2TF—
0AMH05 1801
53.2TF—
264.7CM—
264.7RFJ—
0MWL—
3.9CM—
96.2RFL—
3.9RFJ—

Properties (4)

additional_info
SC306868
custom_field_two
3
customer
LACSD
datetime
2017-02-22T04:36:30-08:00
