Wastewater/Activity/PacpInspection/1.0Apr 1, 2016, 07:25 AM

  • B 0294_B 0293_01042016_002555.mp4

Date
04/01/2016
W/O
563385
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00083
PipeID
P08785
Time
12:25 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3303
Sewer Name
B JOINT OUTFALL B - UNIT 1J
City
ROSEMEAD
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_563385_TV15176_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
B 0294
Downstream MH
B 0293
Dir. of Survey
Downstream
Length Surveyed
329.1 ft.
Total Length
329.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
135
Pipe schematic from manhole B 0294 to B 0293
MH: B 0294MH: B 0293downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 02940 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES73.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"73.9 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES117.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"155.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"248.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish327.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE329.1 ft. AMH - Downstream Manhole, Survey Ends - B 0293

Observation photos (5)

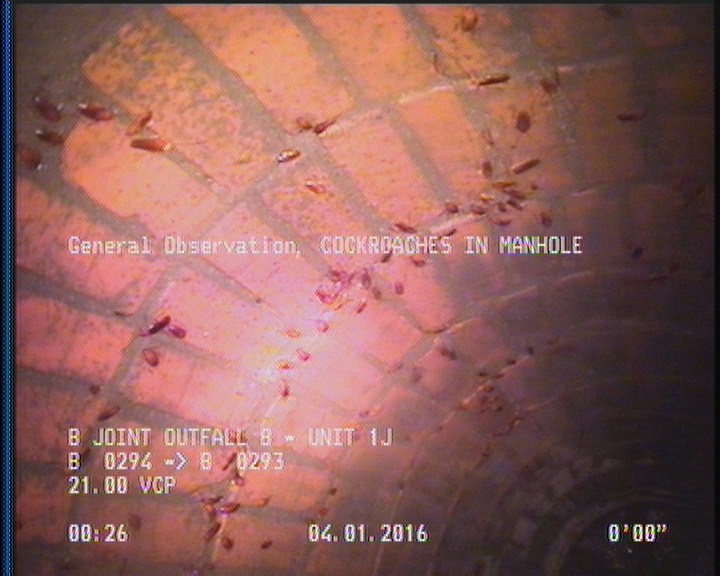

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

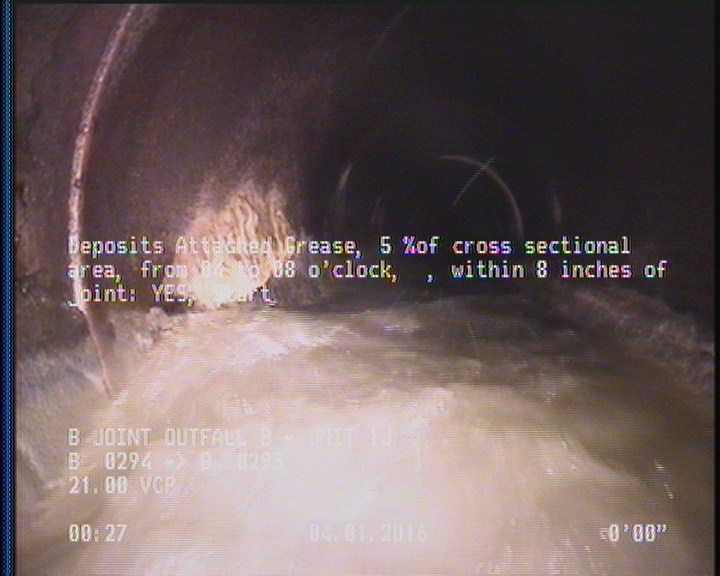

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

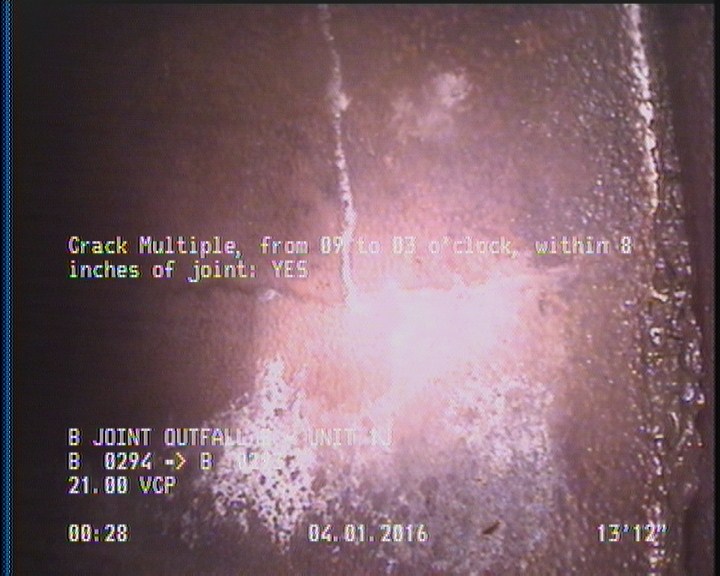

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    14 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

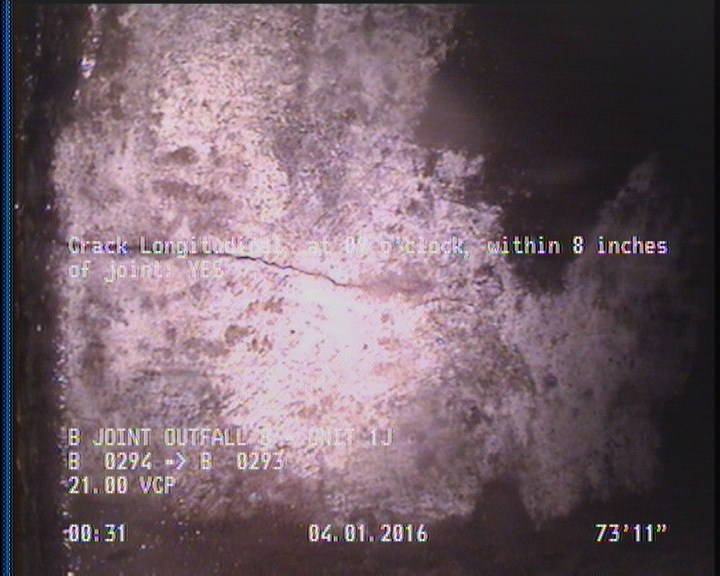

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    73.9 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

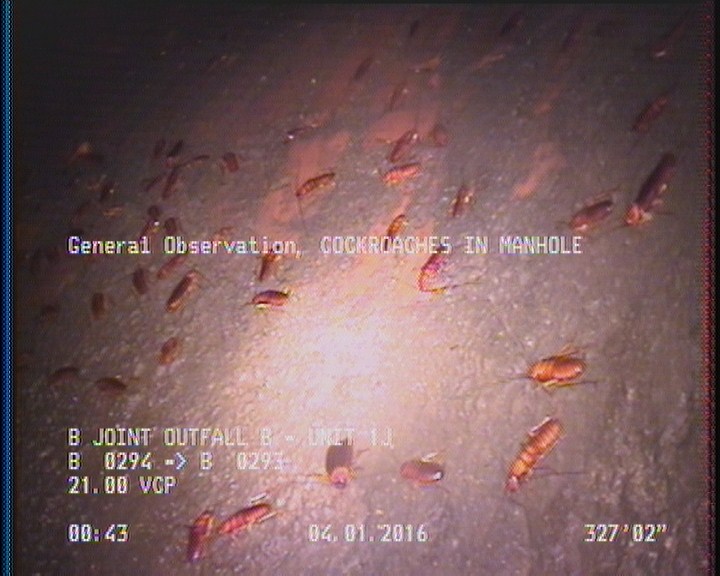

  • General Observation - COCKROACHES IN MANHOLE

    327.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P08785Work order 563385

Observations (15)

DistanceCodeObservation
276.8TFC—
117.1TB—
248.4TBA—
2DAGS—
155.9TB—
14CM—
327.2DAGS—
73.9CL—
329.1AMHB 0293
327.2MGOCOCKROACHES IN MANHOLE
73.1TFC—
0MWM—
0AMHB 0294
0MWL—
0MGOCOCKROACHES IN MANHOLE

Properties (4)

additional_info
SC305429
custom_field_two
4
customer
LACSD
datetime
2016-04-01T00:25:38-07:00
