Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2016, 07:03 AM

  • B 0295_B 0294_01042016_000406.mp4

Date
04/01/2016
W/O
563385
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00083
PipeID
P08786
Time
12:03 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3303
Sewer Name
B JOINT OUTFALL B - UNIT 1J
City
ROSEMEAD
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_563385_TV15176_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
B 0295
Downstream MH
B 0294
Dir. of Survey
Downstream
Length Surveyed
356.3 ft.
Total Length
356.3 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
412W
O&M Rating
240
Overall Index
2
Overall Quick
—
Overall Rating
244
Pipe schematic from manhole B 0295 to B 0294
MH: B 0295MH: B 0294downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - B 02952.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start36.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"62.1 ft. H - Hole, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE WITH REPAIR VISIBLE62.1 ft. MGP - General Photograph - HOLE WITH REPAIR VISIBLE76.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start124 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6"181.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"306.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"328.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"354.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish354.5 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish354.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE356.3 ft. AMH - Downstream Manhole, Survey Ends - B 0294

Observation photos (5)

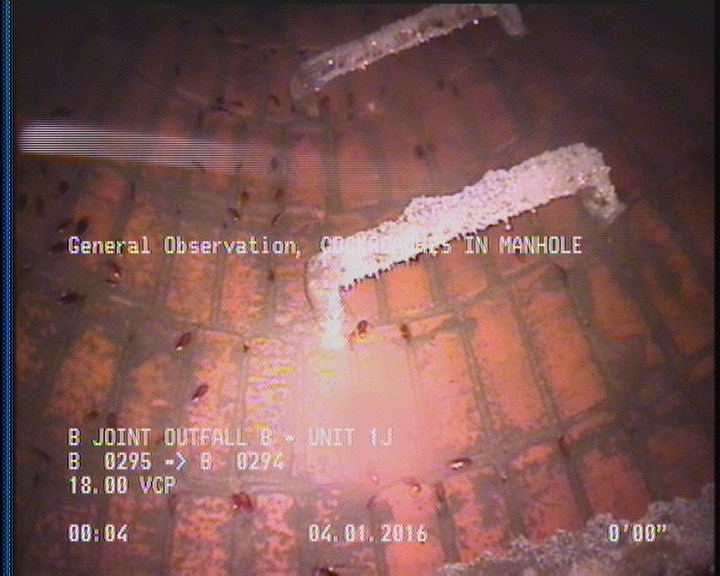

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

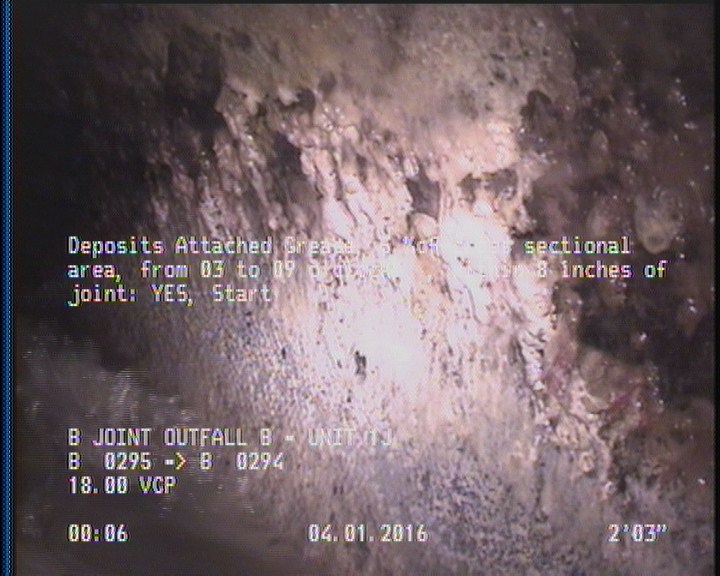

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

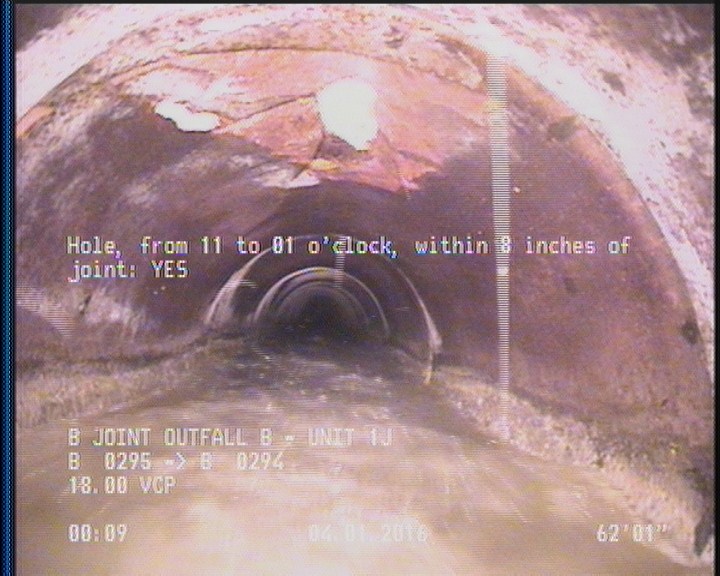

  • Hole, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE WITH REPAIR VISIBLE

    62.1 ft. - Hole, from 11 to 01 o'clock, within 8 inches of joint: YES - HOLE WITH REPAIR VISIBLE

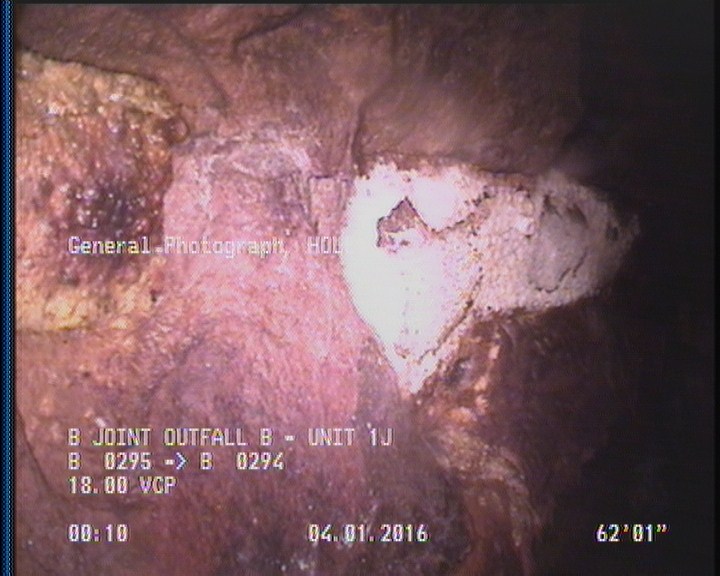

  • General Photograph - HOLE WITH REPAIR VISIBLE

    62.1 ft. - General Photograph - HOLE WITH REPAIR VISIBLE

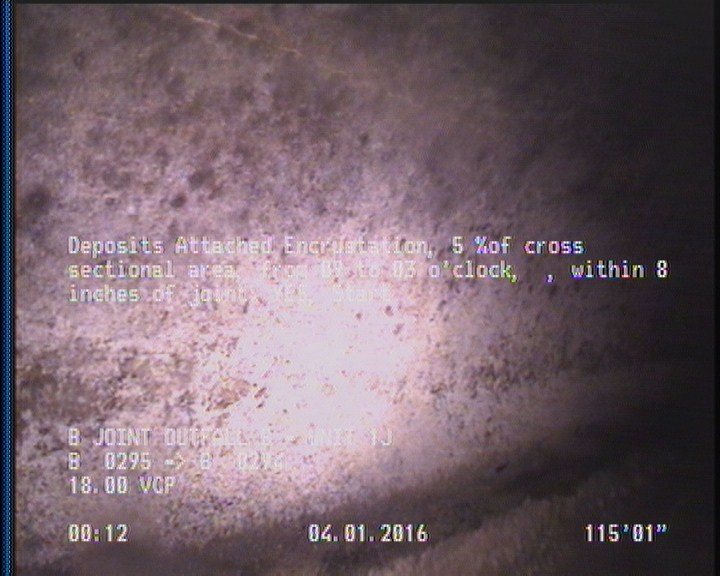

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    115.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

All inspections of P08786Work order 563385

Observations (21)

DistanceCodeObservation
0MWL—
112.3TBA—
354.5DAGS—
36.8TB—
2.3DAGS—
115.1DAE—
242.6TB—
354.5DAE—
124TB—
354.5MGOCOCKROACHES IN MANHOLE
62.1HHOLE WITH REPAIR VISIBLE
306.1TB—
0MWM—
76.1TFC—
356.3AMHB 0294
328.8TFC—
181.8TF—
0MGOCOCKROACHES IN MANHOLE
0AMHB 0295
62.1MGPHOLE WITH REPAIR VISIBLE
231.8TB—

Properties (4)

additional_info
SC305429
custom_field_two
3
customer
LACSD
datetime
2016-04-01T00:03:50-07:00
