Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 09:31 AM
16 0097_16 0096 _09242018_023413.mp4
- Date
- 09/24/2018
- W/O
- 729635
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00641
- PipeID
- P13135
- Time
- 2:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6039
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_729635_TV16074_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0097
- Downstream MH
- 16 0096
- Dir. of Survey
- Downstream
- Length Surveyed
- 377 ft.
- Total Length
- 377 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 225
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 150
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 375
Observation photos (3)

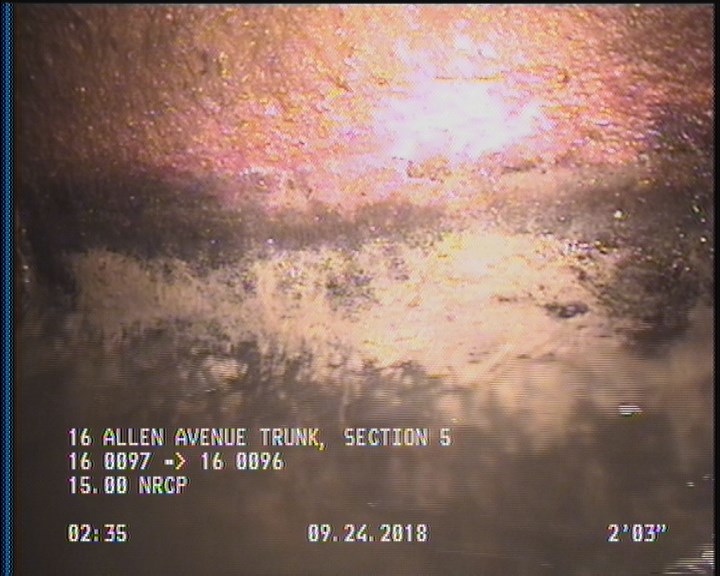

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

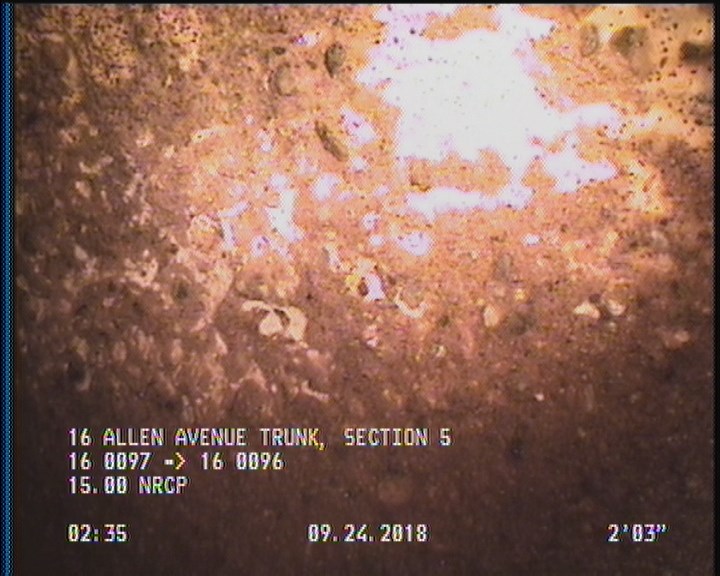

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

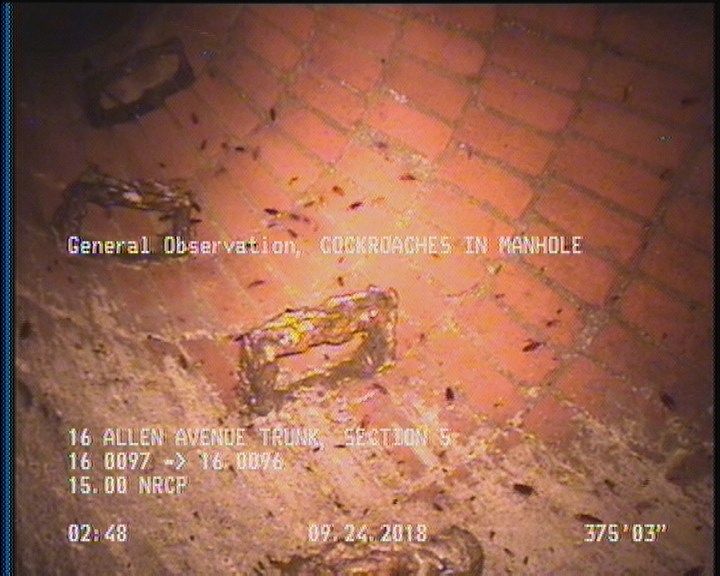

375.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 377 | AMH | 16 0096 |
| 375.2 | DAGS | — |
| 0 | AMH | 16 0097 |
| 375.2 | SAP | — |
| 375.2 | MGO | COCKROACHES IN MANHOLE |
Properties (4)
- additional_info
- SC365101
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-24T02:31:33-07:00
