Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 09:45 AM
16 0553_16 0552 _05102018_024609.mp4
- Date
- 10/05/2018
- W/O
- 729441
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00659
- PipeID
- P13604
- Time
- 2:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6135
- Sewer Name
- 16 LAMANDA PARK TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_729441_TV16077_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 16 0553
- Downstream MH
- 16 0552
- Dir. of Survey
- Downstream
- Length Surveyed
- 99.3 ft.
- Total Length
- 99.3 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 57
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 95
Observation photos (3)

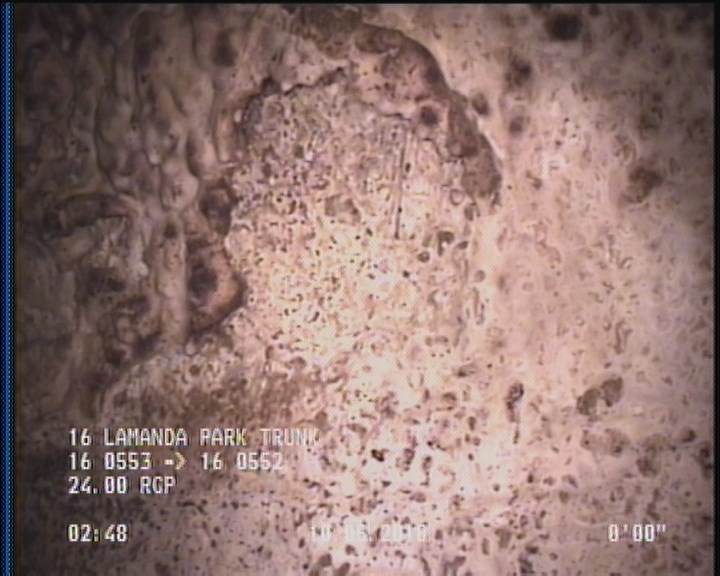

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

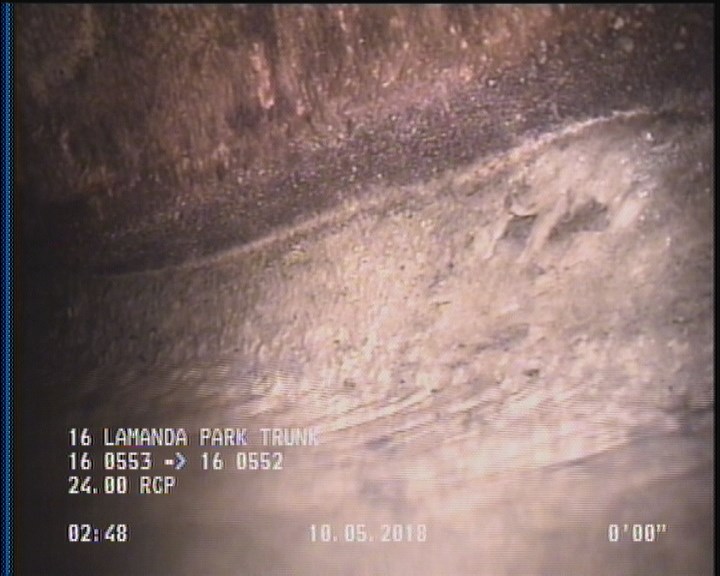

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

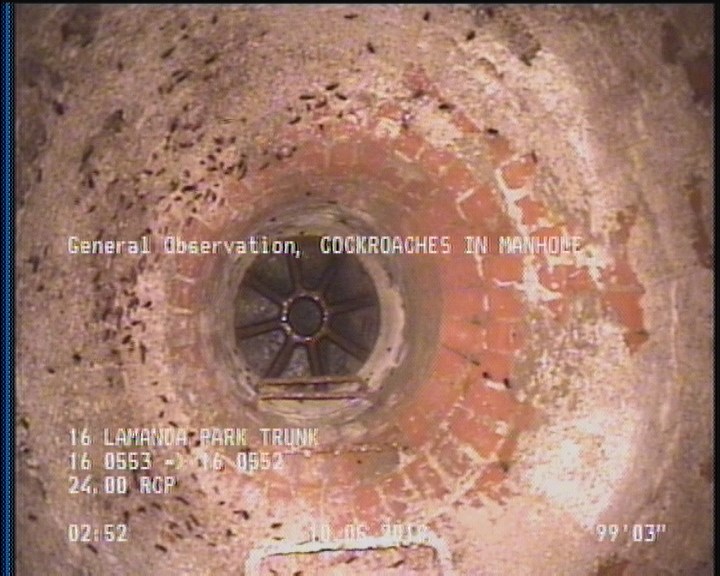

99.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 99.3 | MGO | COCKROACHES IN MANHOLE |
| 86.2 | TBA | — |
| 34.9 | TFA | — |
| 2 | SAP | — |
| 98.2 | DAGS | — |
| 0 | AMH | 16 0553 |
| 98.2 | SAP | — |
| 0 | MWM | — |
| 99.3 | AMH | 16 0552 |
| 82.7 | TFC | — |
| 98.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC365121
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-05T02:45:50-07:00
