Wastewater/Activity/PacpInspection/1.0Sep 12, 2018, 06:16 AM
17 0002_17 0001 _11092018_231654.mp4
- Date
- 09/11/2018
- W/O
- 724194
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00668
- PipeID
- P13727
- Time
- 11:16 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6001
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_724194_TV17004_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 17 0002
- Downstream MH
- 17 0001
- Dir. of Survey
- Downstream
- Length Surveyed
- 152.6 ft.
- Total Length
- 152.6 ft.
- Structural Index
- 3
- Structural Quick
- 4D2E
- Structural Rating
- 166
- O&M Index
- 3
- O&M Quick
- 3B00
- O&M Rating
- 42
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 208
Observation photos (4)

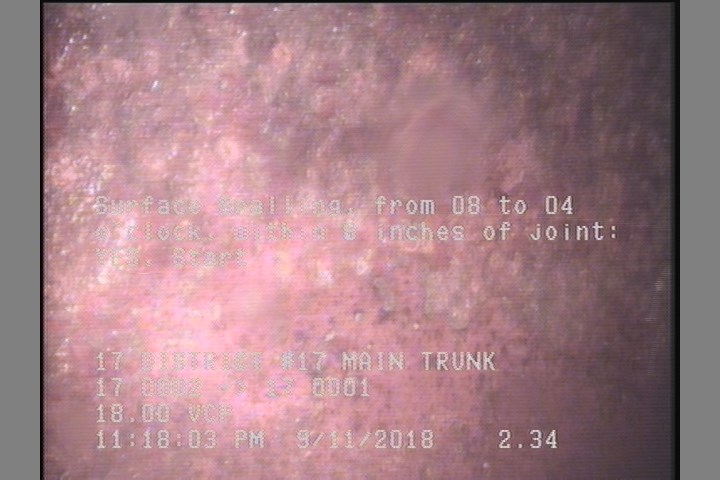

2.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

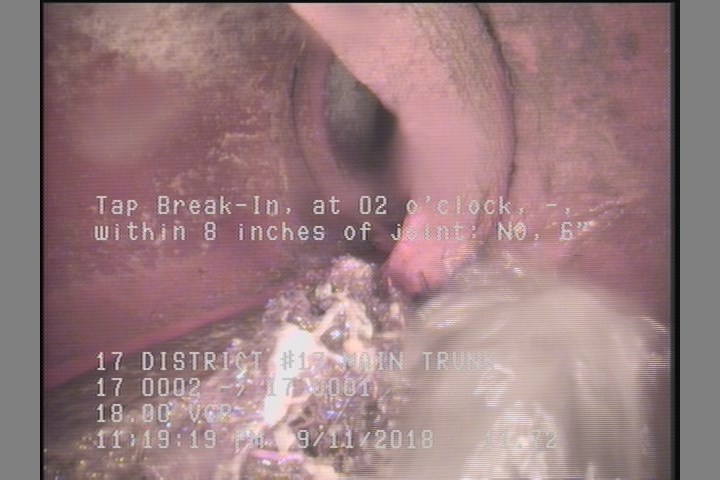

11.7 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

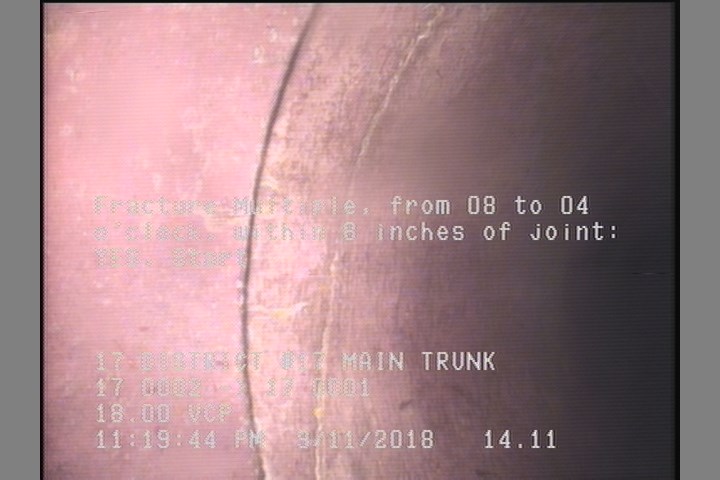

14.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

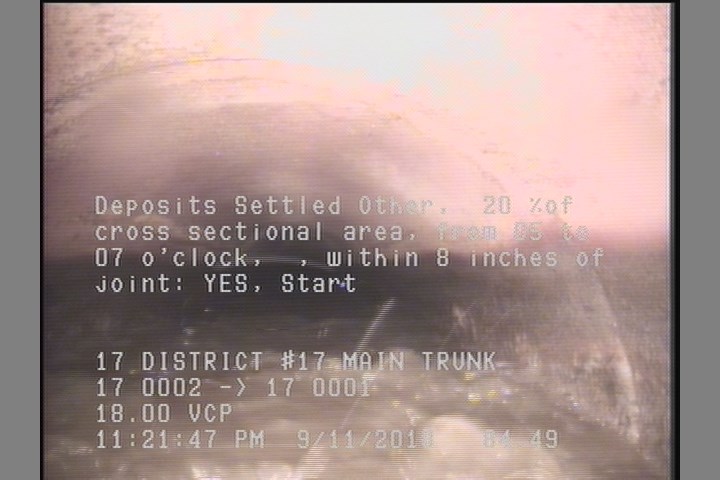

84.5 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 149.6 | SSS | — |
| 97.4 | TF | — |
| 84.5 | DSZ | — |
| 149.6 | AMH | 17 0001 |
| 149.4 | FM | — |
| 11.7 | TB | — |
| 0 | MWM | — |
| 14.1 | FM | — |
| 10.1 | TF | — |
| 101.8 | TF | — |
| 0 | AMH | 17 0002 |
| 0 | MWL | — |
| 152.6 | DSZ | — |
| 2.3 | SSS | — |
| 149.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC364816
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-11T23:16:24-07:00
