Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 12, 2018, 08:25 AM

  • 17 0023_17 0022 _12092018_012539.mp4

Date
09/12/2018
W/O
724194
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00668
PipeID
P13747
Time
1:25 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6001
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
06
Purpose
Routine Assessment
Project
WO_724194_TV17004_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
17 0023
Downstream MH
17 0022
Dir. of Survey
Downstream
Length Surveyed
359.6 ft.
Total Length
359.6 ft.
Structural Index
4
Structural Quick
4M00
Structural Rating
284
O&M Index
2
O&M Quick
3221
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
293
Pipe schematic from manhole 17 0023 to 17 0022
MH: 17 0023MH: 17 0022downstream0 ft. AMH - Upstream Manhole, Survey Begins - 17 00230 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area6.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"41.6 ft. RFJ - Roots Fine Joint, from 08 to 12 o'clock, within 8 inches of joint: YES43.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"74.1 ft. RFB - Roots Fine Barrell, from 09 to 10 o'clock99.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"210.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"305.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"328.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"328.2 ft. RMC - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO332.1 ft. RMJ - Roots Medium Joint, from 12 to 05 o'clock, 15 %, within 8 inches of joint: YESR353.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"359.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish359.6 ft. AMH - Downstream Manhole, Survey Ends - 17 0022

Observation photos (5)

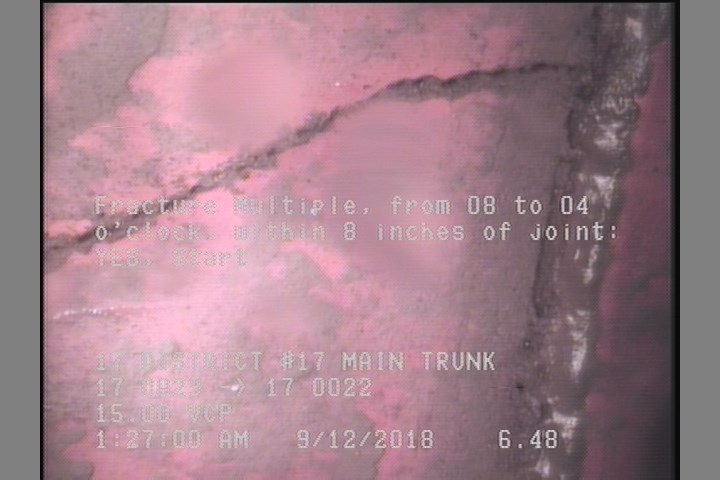

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

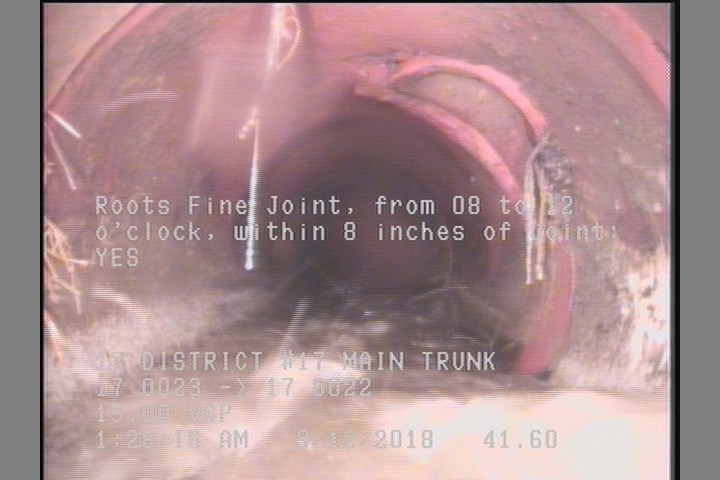

  • Roots Fine Joint, from 08 to 12 o'clock, within 8 inches of joint: YES

    41.6 ft. - Roots Fine Joint, from 08 to 12 o'clock, within 8 inches of joint: YES

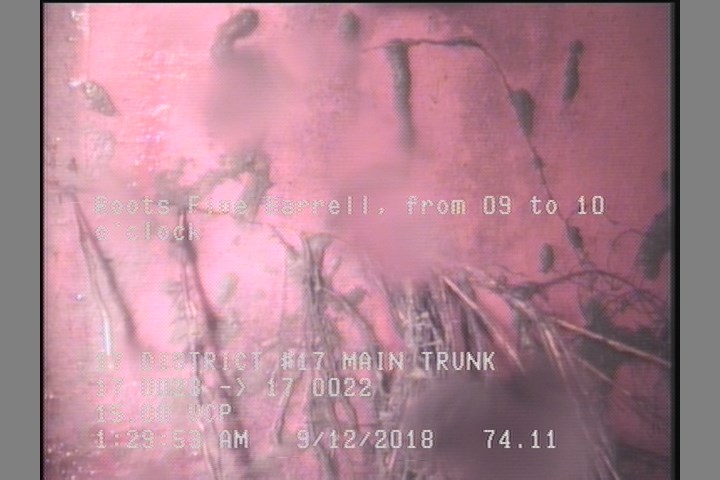

  • Roots Fine Barrell, from 09 to 10 o'clock

    74.1 ft. - Roots Fine Barrell, from 09 to 10 o'clock

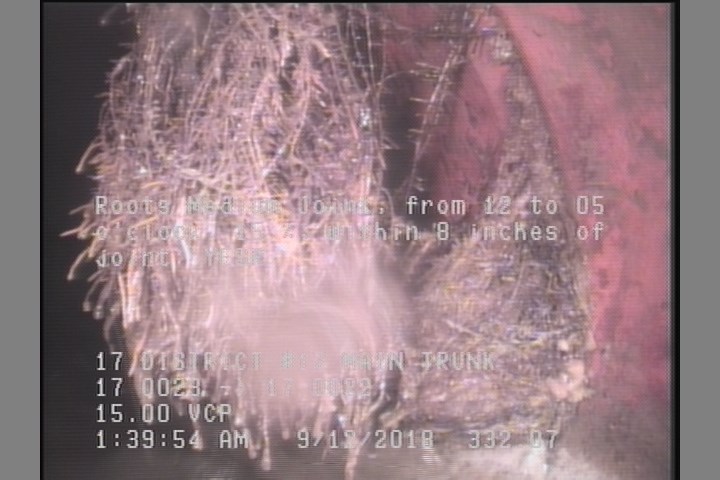

  • Roots Medium Joint, from 12 to 05 o'clock, 15 %, within 8 inches of joint: YESR

    332.1 ft. - Roots Medium Joint, from 12 to 05 o'clock, 15 %, within 8 inches of joint: YESR

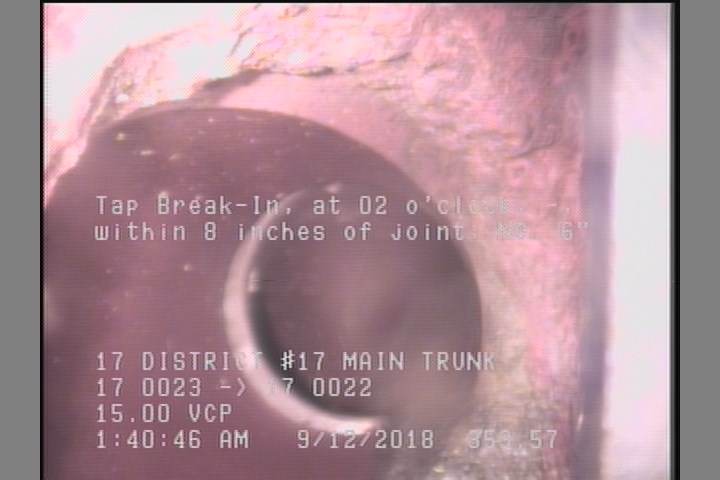

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    353.6 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P13747Work order 724194

Observations (22)

DistanceCodeObservation
16.3TF—
99.4TF—
332.1RMJ—
305.6TF—
158.4TF—
0AMH17 0023
254.5TF—
359.6FM—
289.3TF—
328.2TF—
0MWM—
41.6RFJ—
6.5FM—
43.3TF—
210.3TF—
359.6AMH17 0022
328.2RMC—
233.5TF—
0MWL—
353.6TB—
74.1RFB—
183.2TF—

Properties (3)

additional_info
SC364816
customer
LACSD
datetime
2018-09-12T01:25:26-07:00
