Wastewater/Activity/PacpInspection/1.0Sep 12, 2018, 09:40 AM
17 0047_17 0046 _12092018_024035.mp4
- Date
- 09/12/2018
- W/O
- 724194
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00668
- PipeID
- P13768
- Time
- 2:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6001
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_724194_TV17004_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 17 0047
- Downstream MH
- 17 0046
- Dir. of Survey
- Downstream
- Length Surveyed
- 436.7 ft.
- Total Length
- 436.7 ft.
- Structural Index
- 2
- Structural Quick
- 2P00
- Structural Rating
- 170
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 174
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 344
Observation photos (2)

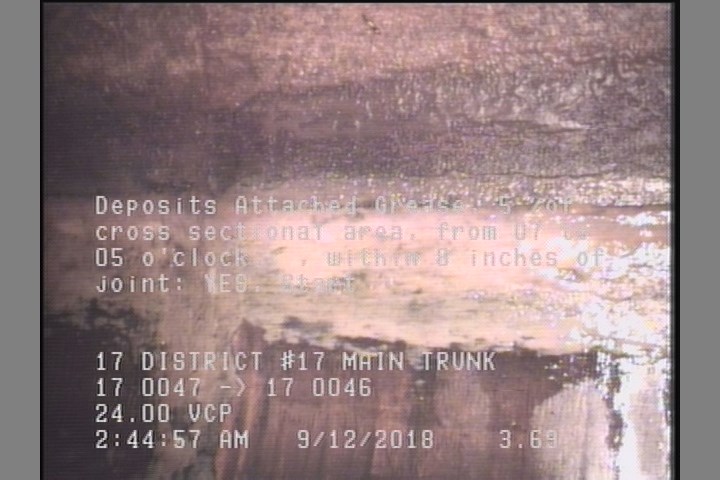

3.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

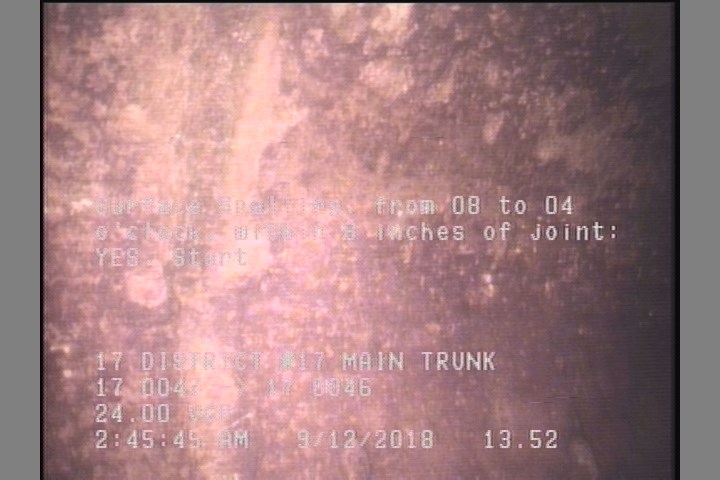

13.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 436.7 | AMH | 17 0046 |
| 13.5 | SSS | — |
| 436.7 | DAGS | — |
| 436.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 436.7 | SSS | — |
| 3.7 | DAGS | — |
| 0 | AMH | 17 0047 |
| 0 | MWL | — |
| 436.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC364816
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-12T02:40:26-07:00
