Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 12, 2018, 07:36 AM

  • 17 0018_17 0017 _12092018_003858.mp4

Date
09/12/2018
W/O
724194
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00668
PipeID
P13742
Time
12:36 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6001
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
07
Purpose
Routine Assessment
Project
WO_724194_TV17004_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
17 0018
Downstream MH
17 0017
Dir. of Survey
Downstream
Length Surveyed
342.6 ft.
Total Length
342.6 ft.
Structural Index
4
Structural Quick
4L00
Structural Rating
268
O&M Index
3
O&M Quick
4132
O&M Rating
11
Overall Index
4
Overall Quick
—
Overall Rating
279
Pipe schematic from manhole 17 0018 to 17 0017
MH: 17 0018MH: 17 0017downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 17 00180 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area5.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start41.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"72.3 ft. RBL - Roots Ball Lateral, at 10 o'clock, 90 %72.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"88.3 ft. RML - Roots Medium Lateral, at 02 o'clock, 35 %, within 8 inches of joint: NO88.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"96.2 ft. RFL - Roots Fine Lateral, at 10 o'clock96.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"135.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"198.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"205.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"217.6 ft. RML - Roots Medium Lateral, at 02 o'clock, 25 %, within 8 inches of joint: NO217.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.3 ft. TS - Tap Saddle, at 10 o'clock, -, within 8 inches of joint: NO, 6"342.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish342.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK342.6 ft. AMH - Downstream Manhole, Survey Ends - 17 0017

Observation photos (2)

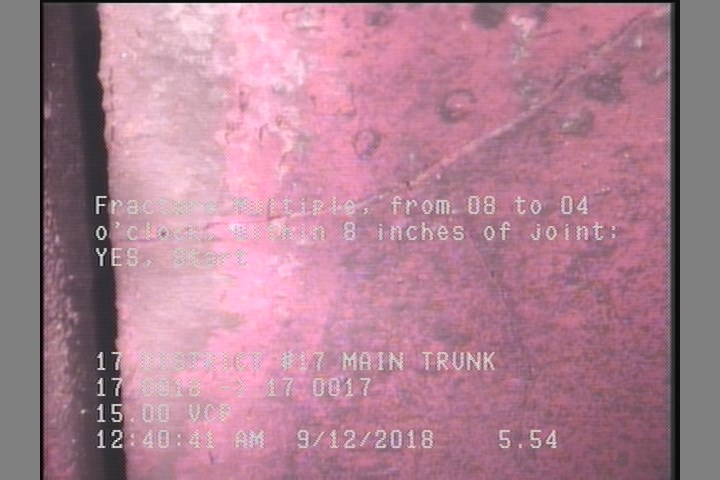

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

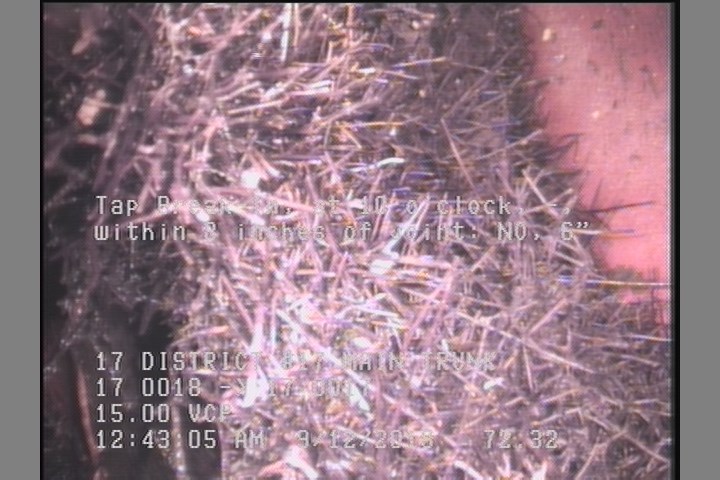

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    72.3 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P13742Work order 724194

Observations (22)

DistanceCodeObservation
342.6AMH17 0017
0MGOCONNECTION AT MH 9 O'CLOCK
72.3RBL—
342.3FM—
241.3TS—
0AMH17 0018
198.1TF—
88.3RML—
205.5TB—
96.2RFL—
72.3TB—
5.5FM—
217.6RML—
0MWM—
96.2TF—
88.3TF—
342.3MGOCONNECTION AT MH 9 O'CLOCK
217.6TF—
0MWL—
41.2TFC—
135.3TF—
139.1TF—

Properties (4)

additional_info
SC364816
custom_field_two
2
customer
LACSD
datetime
2018-09-12T00:36:56-07:00
