Wastewater/Activity/PacpInspection/1.0Sep 10, 2018, 10:41 AM
22 0893_22 0892 _10092018_035006.mp4
- Date
- 09/10/2018
- W/O
- 723908
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00799
- PipeID
- P17263
- Time
- 3:41 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5997
- Sewer Name
- 22 CONEY TRUNK, SECTS 2&3
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_723908_TV22162_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0893
- Downstream MH
- 22 0892
- Dir. of Survey
- Downstream
- Length Surveyed
- 513 ft.
- Total Length
- 513 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

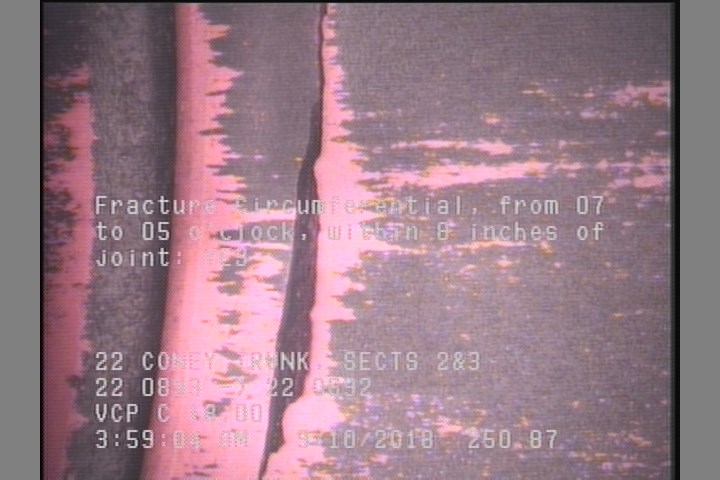

250.9 ft. - Fracture Circumferential, from 07 to 05 o'clock, within 8 inches of joint: YES

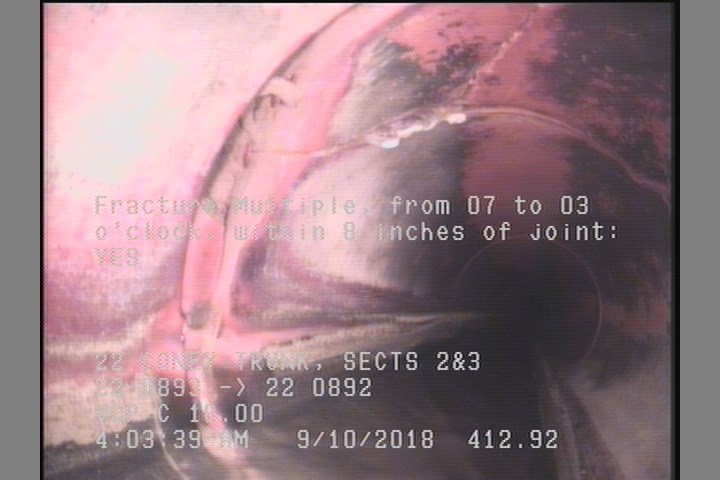

412.9 ft. - Fracture Multiple, from 07 to 03 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 412.9 | FM | — |
| 513 | AMH | 22 0892 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 250.9 | FC | — |
| 0 | MWL | — |
| 0 | AMH | 22 0893 |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC364812
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-10T03:41:12-07:00
