Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 06:39 AM
29 0174A_29 0174 _02102018_233950.mp4
- Date
- 10/02/2018
- W/O
- 729478
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00354
- PipeID
- P24071
- Time
- 11:39 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6124
- Sewer Name
- 29 28TH STREET TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729478_TV29052_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 29 0174A
- Downstream MH
- 29 0174
- Dir. of Survey
- Downstream
- Length Surveyed
- 32.3 ft.
- Total Length
- 32.3 ft.
- Structural Index
- 3
- Structural Quick
- 4134
- Structural Rating
- 16
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (3)

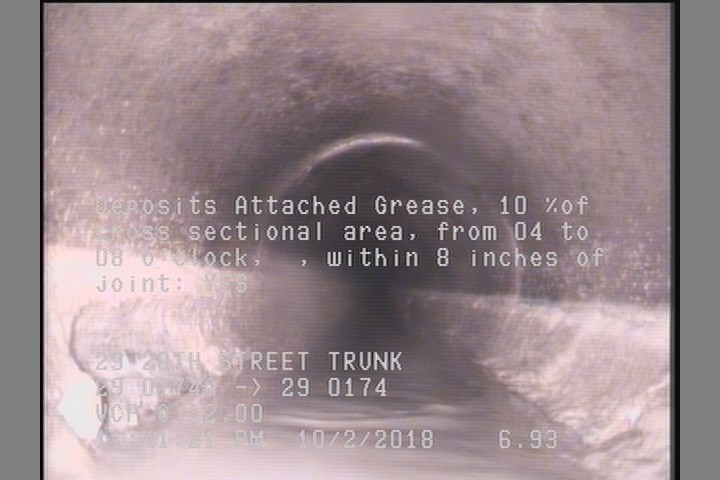

6.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

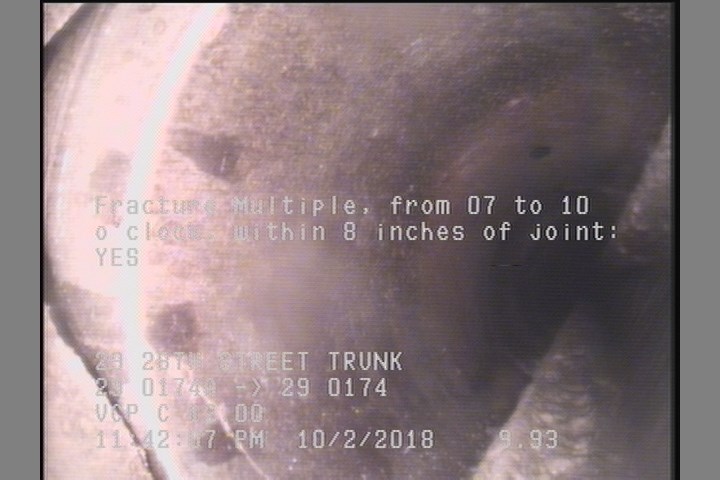

9.9 ft. - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

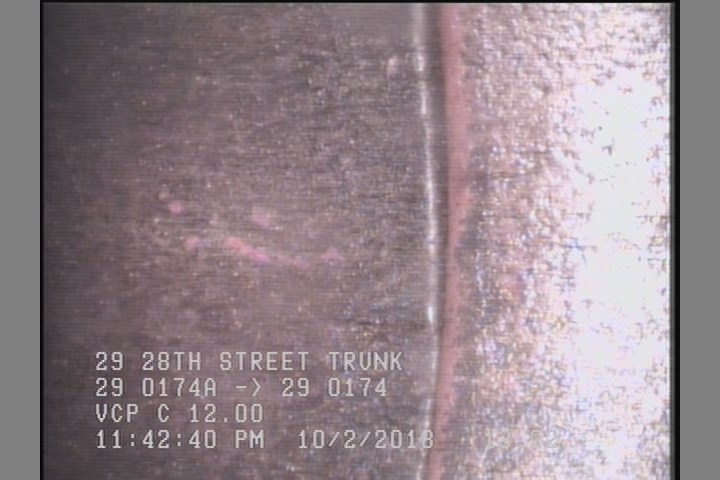

13.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 9.9 | FM | — |
| 32.3 | CM | — |
| 32.3 | AMH | 29 0174 |
| 0 | MWM | — |
| 0 | AMH | 29 0174A |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 13.1 | CM | — |
| 0 | MWL | — |
| 6.9 | DAGS | — |
Properties (4)
- additional_info
- SC364844
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-02T23:39:38-07:00
