Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 08:26 AM

  • 16 0332_16 0331 _05102018_012651.mp4

Date
10/05/2018
W/O
729367
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00665
PipeID
P13383
Time
1:26 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6134
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
RFIR_WO_729367_TV16060_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
20 in.
Width
20 in.
Upstream MH
16 0332
Downstream MH
16 0331
Dir. of Survey
Downstream
Length Surveyed
175.6 ft.
Total Length
175.6 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
93
O&M Index
2
O&M Quick
2F11
O&M Rating
71
Overall Index
2
Overall Quick
—
Overall Rating
164
Pipe schematic from manhole 16 0332 to 16 0331
MH: 16 0332MH: 16 0331downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 03320 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 6 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start19 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"22.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start73.4 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR90.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"95.2 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"137.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"143.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"175.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE175.6 ft. AMH - Downstream Manhole, Survey Ends - 16 0331175.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish175.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (6)

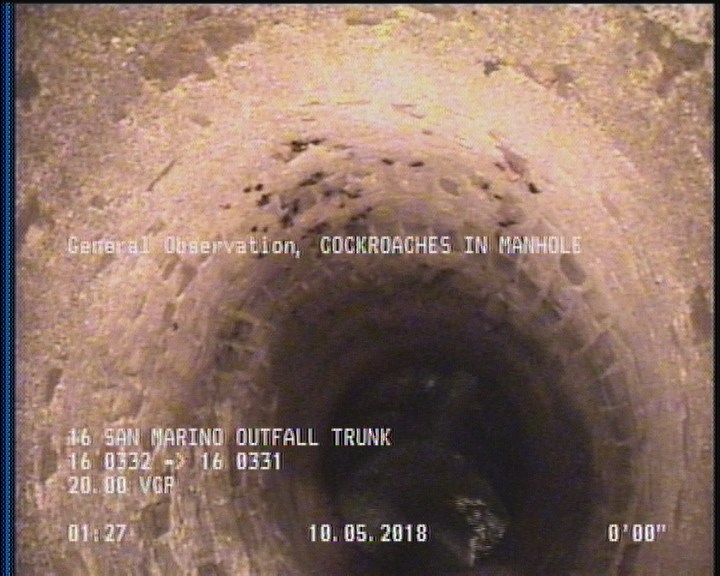

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

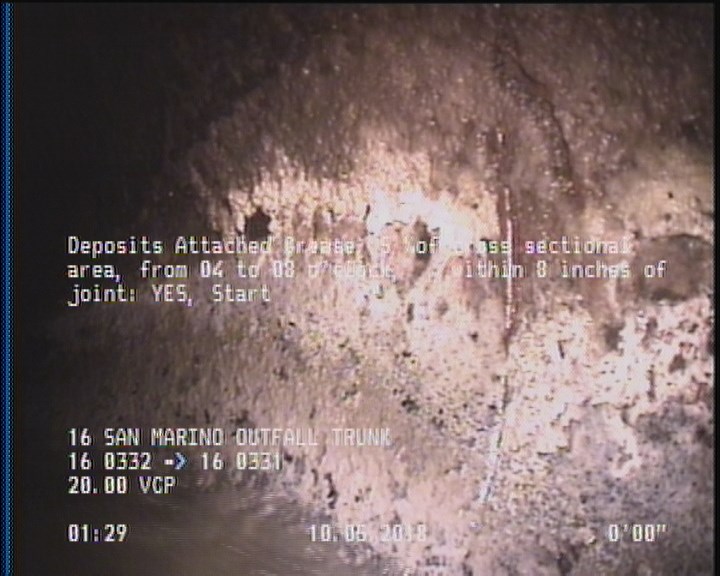

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

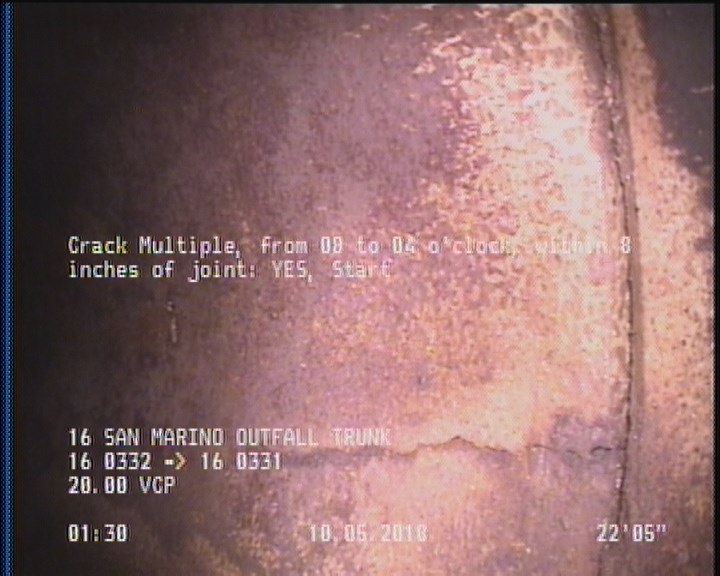

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    22.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

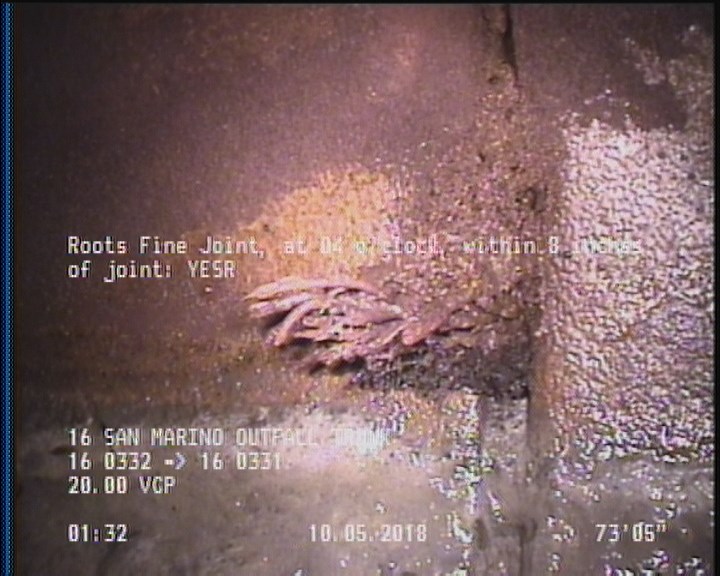

  • Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR

    73.4 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YESR

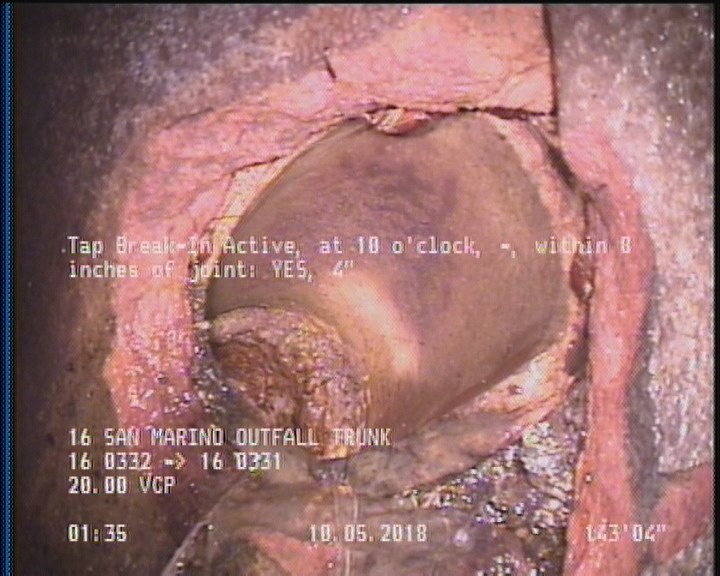

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    143.3 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

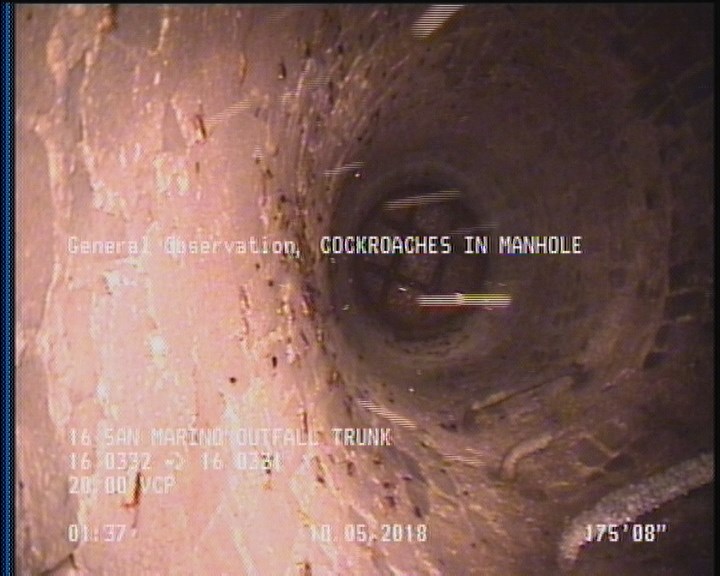

  • General Observation - COCKROACHES IN MANHOLE

    175.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13383Work order 729367

Observations (17)

DistanceCodeObservation
90.7TF—
0AMH16 0332
175.6MGOCOCKROACHES IN MANHOLE
143.3TBA—
0MGOACTIVE CONNECTION AT MH 6 O'CLOCK
19TF—
95.2TBA—
2DAGS—
175.6AMH16 0331
73.4RFJ—
0MGOCOCKROACHES IN MANHOLE
137.2TF—
175.6CM—
175.6DAGS—
0MWM—
0MWL—
22.4CM—

Properties (4)

additional_info
SC365120
custom_field_two
3
customer
LACSD
datetime
2018-10-05T01:26:22-07:00
