Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 07:55 AM
16 0310_16 0309 _05102018_005608.mp4
- Date
- 10/05/2018
- W/O
- 729367
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00665
- PipeID
- P13361
- Time
- 12:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6134
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729367_TV16060_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- 16 0310
- Downstream MH
- 16 0309
- Dir. of Survey
- Downstream
- Length Surveyed
- 85.6 ft.
- Total Length
- 85.6 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 392B
- O&M Rating
- 61
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 68
Observation photos (3)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
16.9 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

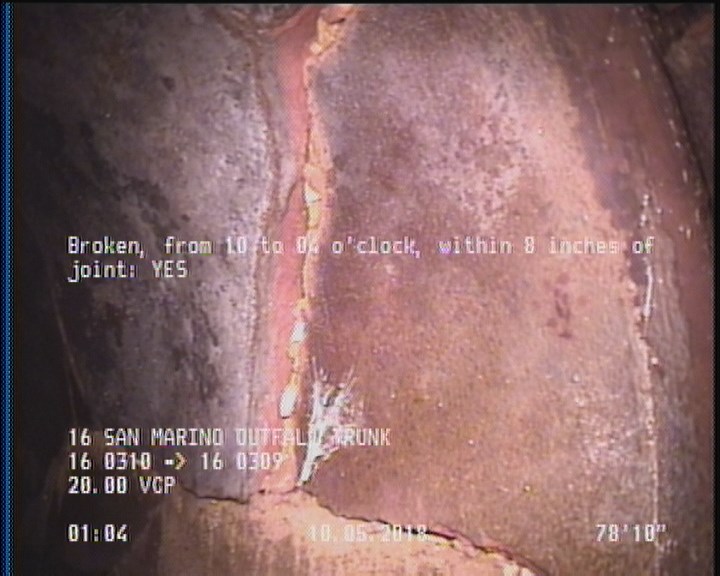

78.8 ft. - Broken, from 10 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 16.9 | CL | — |
| 78.8 | B | — |
| 0 | MWL | — |
| 0 | AMH | 16 0310 |
| 85.3 | DAGS | — |
| 0 | MWM | — |
| 85.3 | DSZ | — |
| 36.3 | TBA | — |
| 2 | DAGS | — |
| 85.6 | AMH | 16 0309 |
| 38.3 | DSZ | DEBRIS |
Properties (4)
- additional_info
- SC365120
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-05T00:55:06-07:00
