Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 07:08 AM

  • 16 0317_16 0316 _05102018_000902.mp4

Date
10/05/2018
W/O
729367
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00665
PipeID
P13368
Time
12:08 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6134
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_729367_TV16060_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0317
Downstream MH
16 0316
Dir. of Survey
Downstream
Length Surveyed
361.5 ft.
Total Length
361.5 ft.
Structural Index
3
Structural Quick
413L
Structural Rating
193
O&M Index
2
O&M Quick
312M
O&M Rating
147
Overall Index
2
Overall Quick
—
Overall Rating
340
Pipe schematic from manhole 16 0317 to 16 0316
MH: 16 0317MH: 16 0316downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 03170 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start9.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"14.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"16.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"37.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES53.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start58.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"62.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"133.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"156.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS188.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"269.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"270.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4"361.5 ft. AMH - Downstream Manhole, Survey Ends - 16 0316361.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish361.5 ft. TFA - Tap Factory Made Active, at 06 o'clock, -, within 8 inches of joint: YES, 12" - DROP CONNECTION361.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish361.5 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

Observation photos (4)

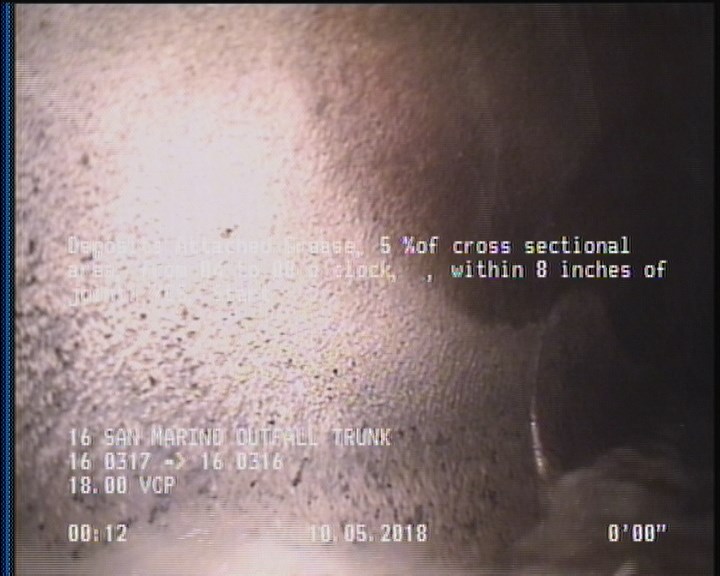

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

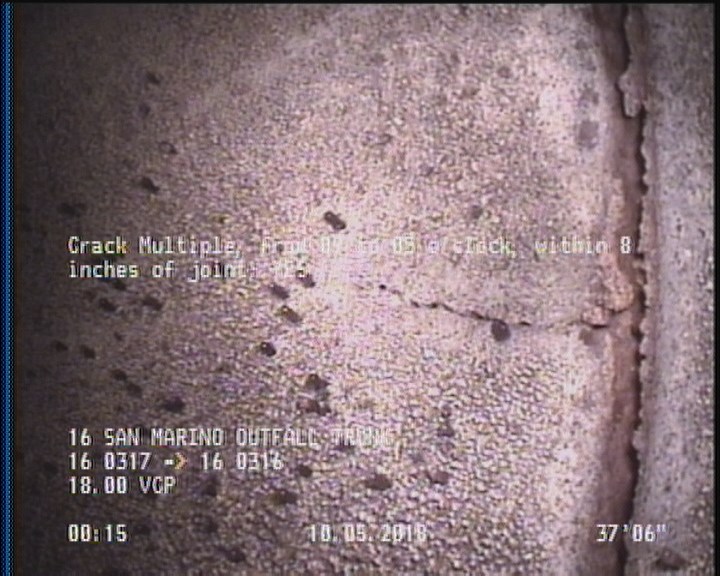

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    37.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

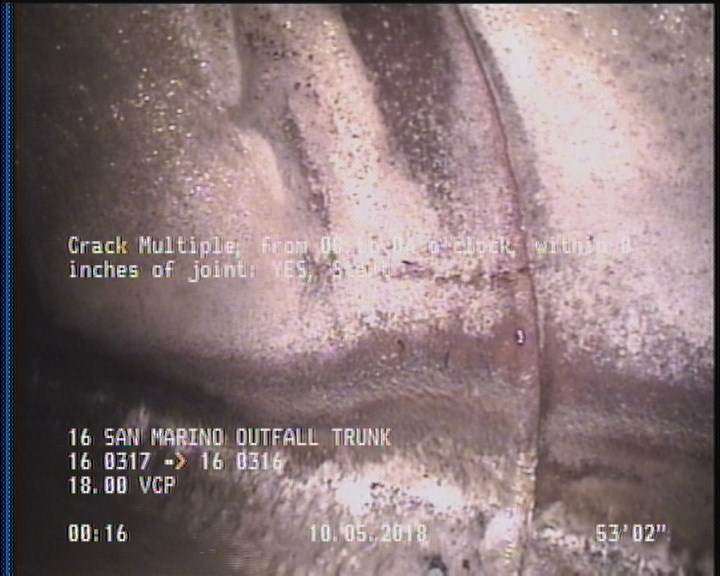

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    53.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

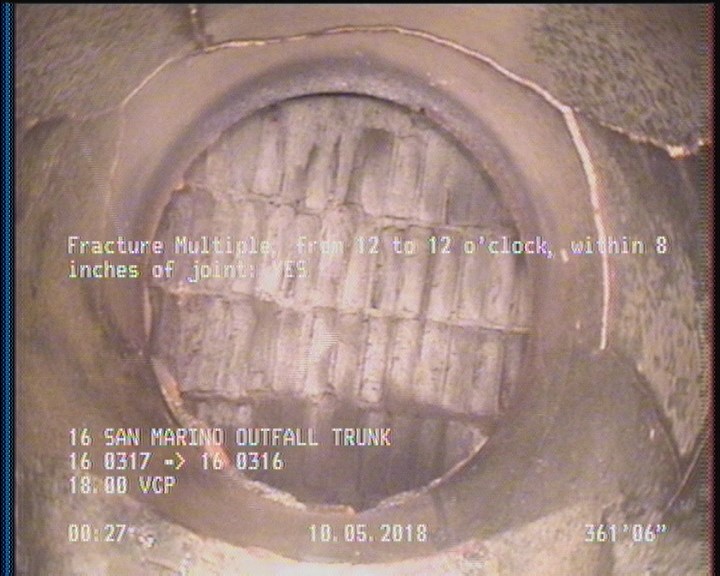

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    361.5 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

All inspections of P13368Work order 729367

Observations (23)

DistanceCodeObservation
9.2TFA—
0AMH16 0317
62.1TFA—
361.5AMH16 0316
2DAGS—
53.2CM—
188.2TFC—
270.5TB—
361.5CM—
247.2TF—
361.5TFADROP CONNECTION
156.5DSZDEBRIS
269.6TFC—
361.5DAGS—
58.3TFA—
0MWL—
16.1TFC—
0MWM—
133.3TF—
14.2TFC—
141.4TFA—
37.5CM—
361.5FM—

Properties (4)

additional_info
SC365120
custom_field_two
2
customer
LACSD
datetime
2018-10-05T00:08:08-07:00
