Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 06:41 AM
16 0348_16 0347 _10012018_234315.mp4
- Date
- 10/01/2018
- W/O
- 729367
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00665
- PipeID
- P13399
- Time
- 11:41 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6053
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729367_TV16060_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0348
- Downstream MH
- 16 0347
- Dir. of Survey
- Downstream
- Length Surveyed
- 197.7 ft.
- Total Length
- 197.7 ft.
- Structural Index
- 4
- Structural Quick
- 4G00
- Structural Rating
- 156
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 78
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 234
Observation photos (4)

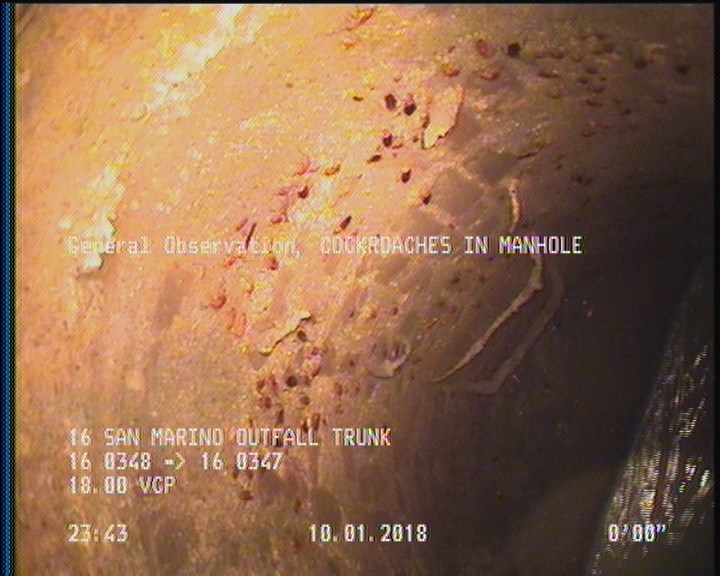

0 ft. - General Observation - COCKROACHES IN MANHOLE

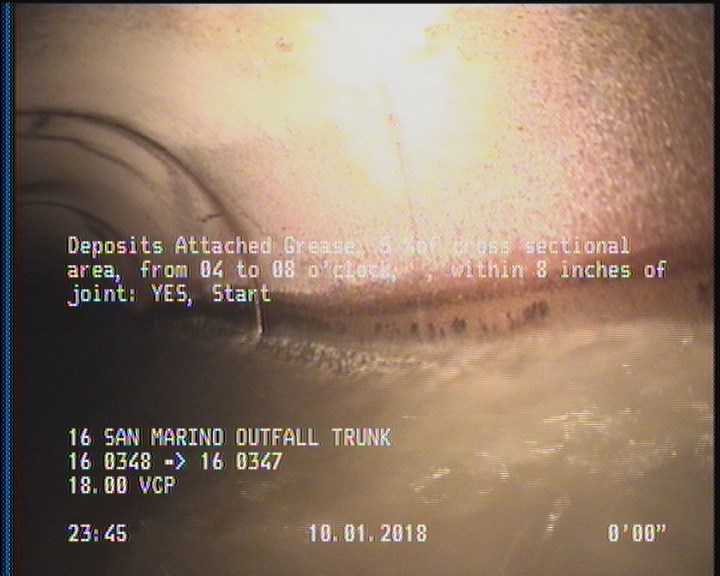

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

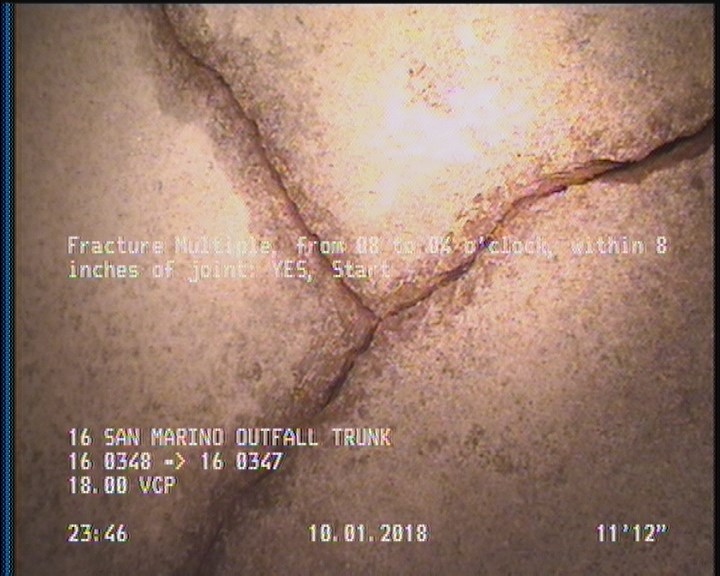

2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

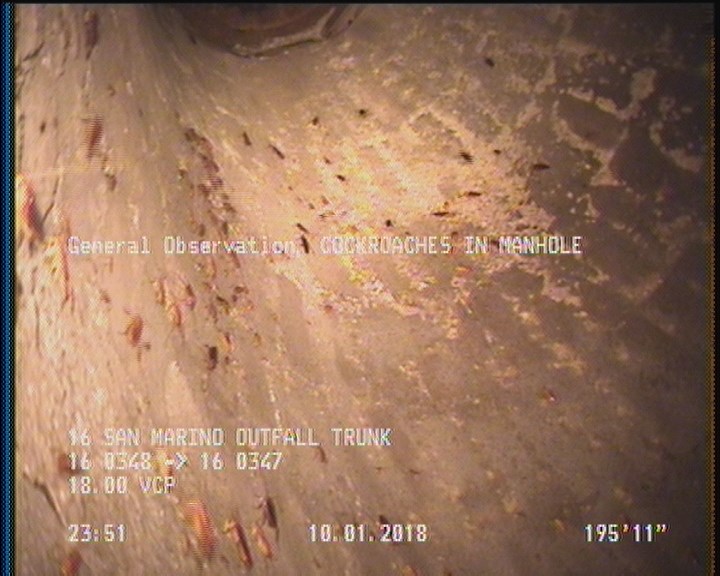

195.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 195.9 | DAGS | — |
| 195.9 | MGO | COCKROACHES IN MANHOLE |
| 132.7 | TFC | — |
| 197.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 197.7 | AMH | 16 0347 |
| 0 | AMH | 16 0348 |
| 195.9 | FM | — |
| 65.4 | TFC | — |
| 2 | FM | — |
Properties (3)
- additional_info
- SC365116
- customer
- LACSD
- datetime
- 2018-10-01T23:41:40-07:00
