Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 05:16 AM
16 0340_16 0339 _04102018_221706.mp4
- Date
- 10/04/2018
- W/O
- 729367
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00665
- PipeID
- P13391
- Time
- 10:16 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6134
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729367_TV16060_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0340
- Downstream MH
- 16 0339
- Dir. of Survey
- Downstream
- Length Surveyed
- 300.1 ft.
- Total Length
- 300.1 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 159
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 277
Observation photos (4)

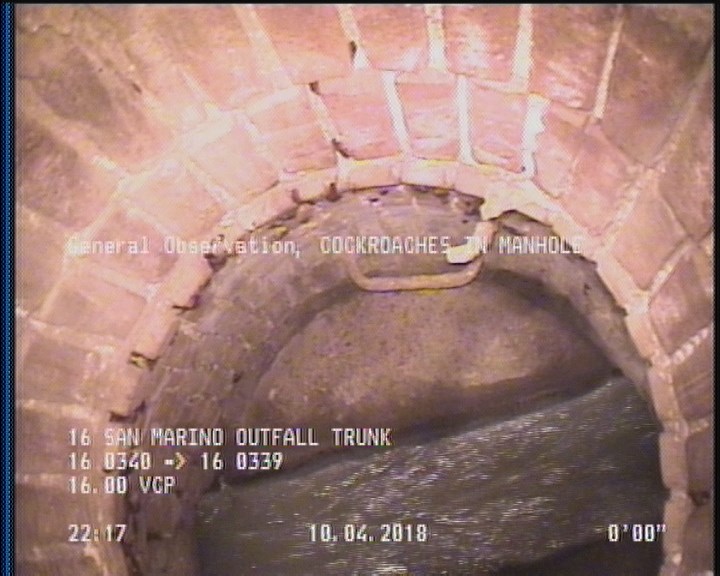

0 ft. - General Observation - COCKROACHES IN MANHOLE

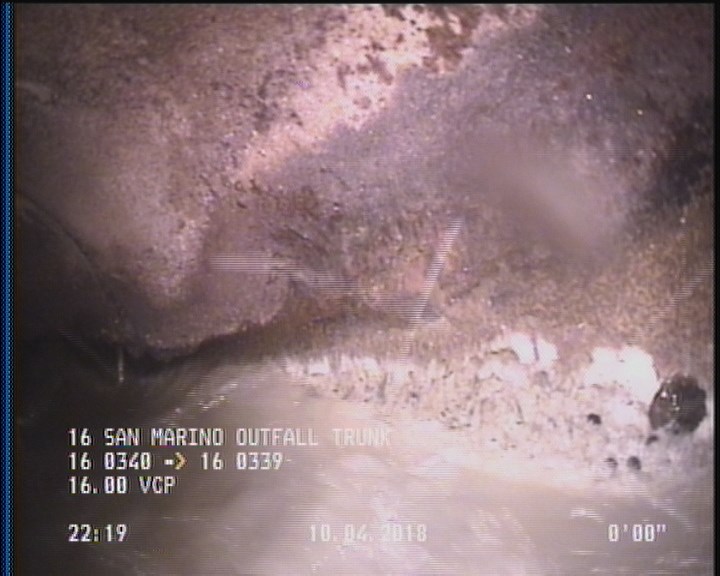

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

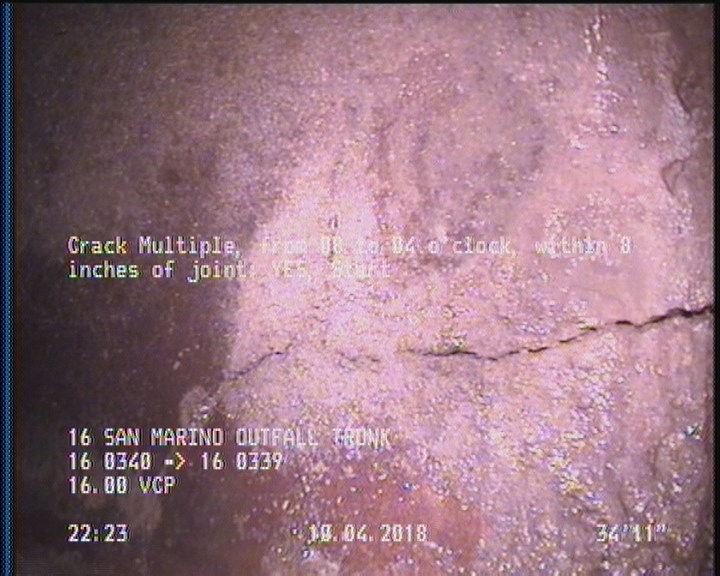

35 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

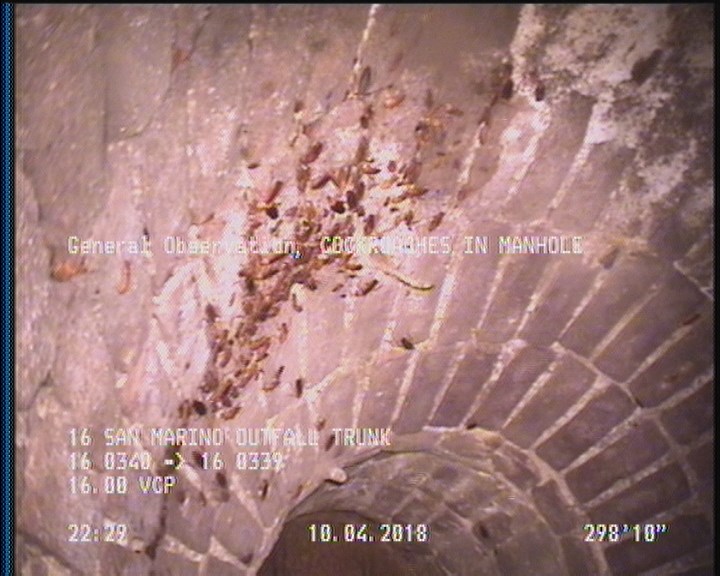

298.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 298.8 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 300.1 | AMH | 16 0339 |
| 174.6 | TFC | — |
| 33.4 | TFC | — |
| 0 | AMH | 16 0340 |
| 298.8 | MGO | COCKROACHES IN MANHOLE |
| 298.8 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 105.6 | TFA | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 35 | CM | — |
| 243.7 | TFC | — |
Properties (4)
- additional_info
- SC365120
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-04T22:16:06-07:00
