Wastewater/Activity/PacpInspection/1.0Apr 25, 2017, 07:32 AM
21 0455_21 0454 _20170425_014338.mp4
- Date
- 04/25/2017
- W/O
- 630321
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00777
- PipeID
- P15664
- Time
- 12:32 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4513
- Sewer Name
- 21 MOUNT SAN ANTONIO TRUNK
- City
- WALNUT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_630321_TV21046_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 21 0455
- Downstream MH
- 21 0454
- Dir. of Survey
- Downstream
- Length Surveyed
- 301.1 ft.
- Total Length
- 301.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (2)

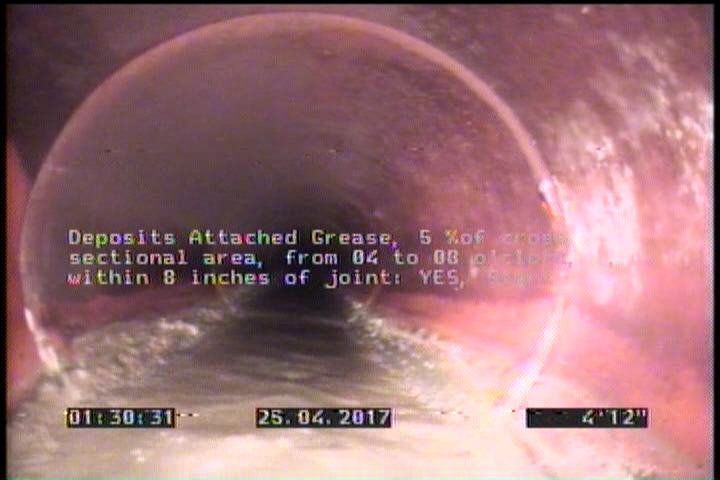

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

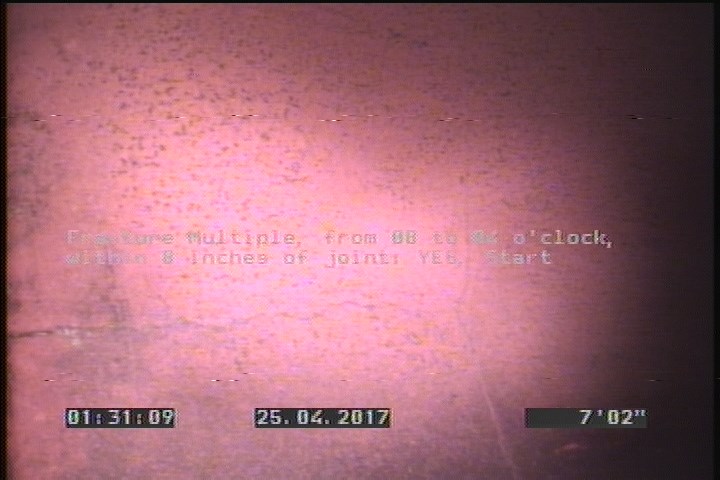

7.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 7.2 | CM | — |
| 301.1 | CM | — |
| 191.6 | TBC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 301.1 | AMH | 21 0454 |
| 288.1 | TBC | — |
| 301.1 | DAGS | — |
| 89.8 | TBC | — |
| 5 | DAGS | — |
| 0 | AMH | 21 0455 |
Properties (4)
- additional_info
- SC340727
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-25T00:32:40-07:00
