Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 10:10 AM
21 0442_21 0441 _20170421_032322.mp4
- Date
- 04/21/2017
- W/O
- 630321
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00777
- PipeID
- P15650
- Time
- 3:10 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4511
- Sewer Name
- 21 MOUNT SAN ANTONIO TRUNK
- City
- WALNUT
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_630321_TV21046_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 21 0442
- Downstream MH
- 21 0441
- Dir. of Survey
- Downstream
- Length Surveyed
- 218.3 ft.
- Total Length
- 218.3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 3122
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

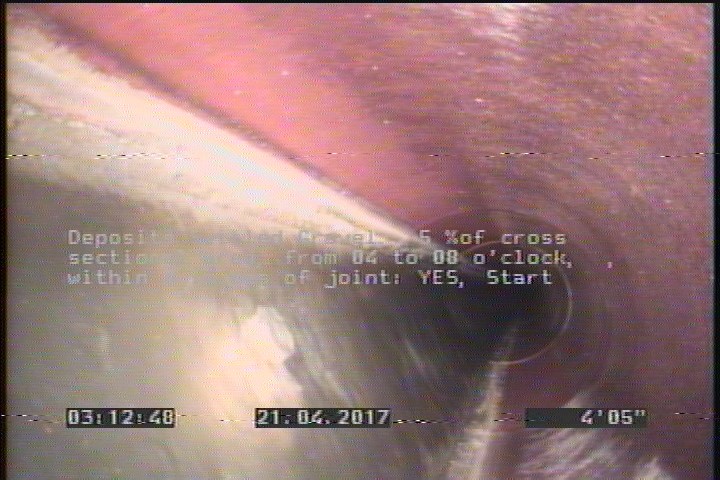

4.4 ft. - Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

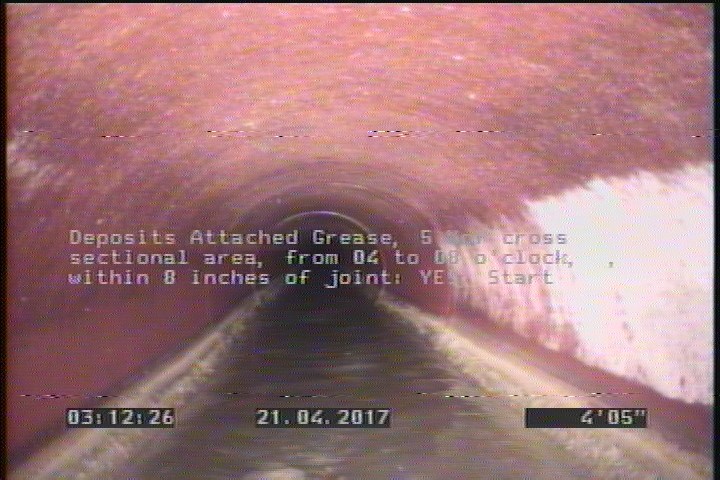

4.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 4.4 | DSGV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 218.3 | MSA | DSGV |
| 4.4 | DAGS | — |
| 0 | AMH | 21 0442 |
| 218.2 | DAGS | — |
| 218.2 | MWLS | — |
| 134.2 | DSGV | — |
| 207.3 | MWLS | — |
| 218.2 | DSGV | — |
Properties (4)
- additional_info
- SC340725
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-04-21T03:10:43-07:00
