Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 06:44 AM
22 0482_22 0481 _20170419_001009.mp4
- Date
- 04/18/2017
- W/O
- 630167
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00800
- PipeID
- P16821
- Time
- 11:44 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4506
- Sewer Name
- 22 COVINA CONNECTION EXTENSION TRUNK
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_630167_TV22031_APR2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 22 0482
- Downstream MH
- 22 0481
- Dir. of Survey
- Downstream
- Length Surveyed
- 171.3 ft.
- Total Length
- 171.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

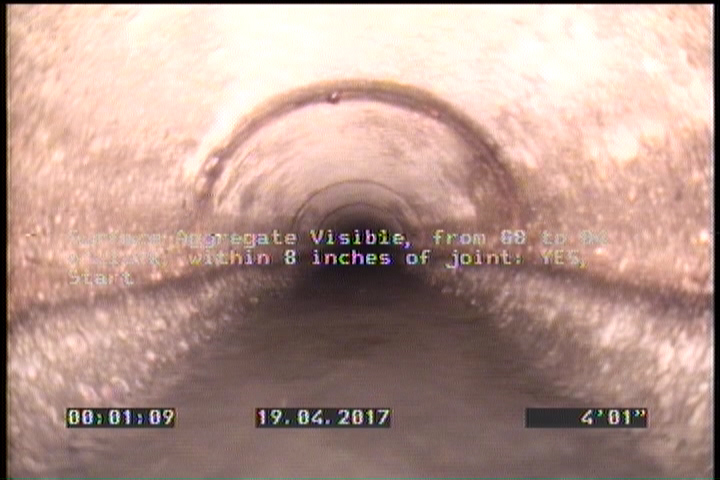

4.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

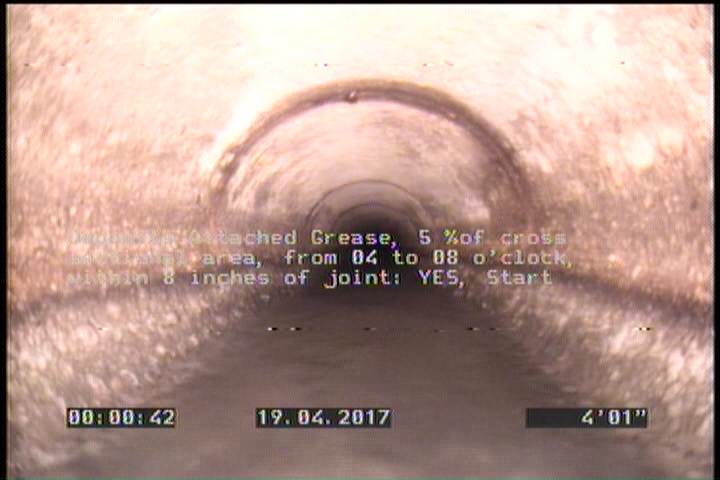

4.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 148.5 | TFC | — |
| 171.3 | DAGS | — |
| 171.3 | AMH | 22 0481 |
| 151.6 | TFC | — |
| 70.4 | TF | — |
| 0 | MWL | — |
| 0 | AMH | 22 0482 |
| 49.1 | TFC | — |
| 4.1 | SAV | — |
| 171.3 | SAV | — |
| 4.1 | DAGS | — |
| 100.4 | TFC | — |
| 46 | TFC | — |
| 0 | MWM | — |
| 171.3 | MGO | CONNECTION AT 3 OC |
Properties (4)
- additional_info
- SC340720
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-18T23:44:43-07:00
