Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 08:57 AM

  • 18 1024_18 1023 _04182017_015805.mp4

Date
04/18/2017
W/O
630156
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00677
PipeID
P14878
Time
1:57 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4267
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_630156_TV18008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 1023
Downstream MH
18 1024
Dir. of Survey
Upstream
Length Surveyed
156.8 ft.
Total Length
156.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
433B
O&M Rating
89
Overall Index
3
Overall Quick
—
Overall Rating
89
Pipe schematic from manhole 18 1023 to 18 1024
MH: 18 1023MH: 18 1024upstream0 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish0 ft. MCU - Camera Underwater, Finish0 ft. MWL - Water Level, 90 %of cross sectional area0 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH0 ft. MSA - Survey Abandoned - WATER LEVEL HIGH CAMERA UNDERWATER14.2 ft. MCU - Camera Underwater, Start33.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish33.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start75.2 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start75.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish96 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"98.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"154.7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start154.7 ft. MGO - General Observation - MAGNESIUM H.O. START156.8 ft. MWL - Water Level, 10 %of cross sectional area156.8 ft. MWM - Water Mark, 15 %of cross sectional area156.8 ft. AMH - Downstream Manhole, Survey Begins - 18 1023156.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE156.8 ft. MGO - General Observation - LINER

Observation photos (6)

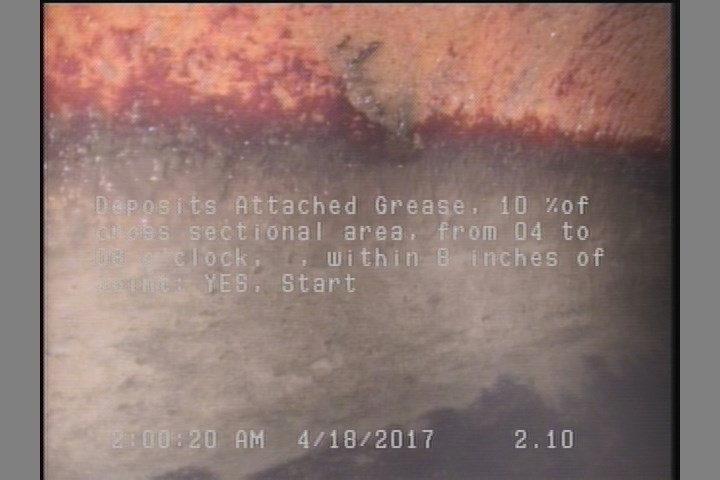

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

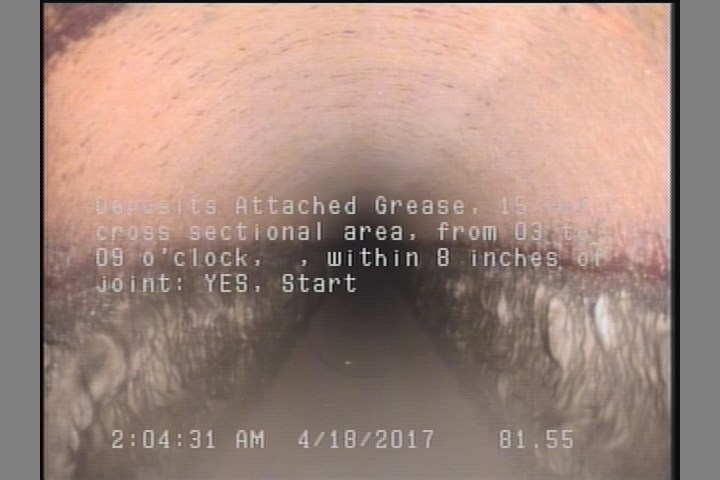

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    81.6 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

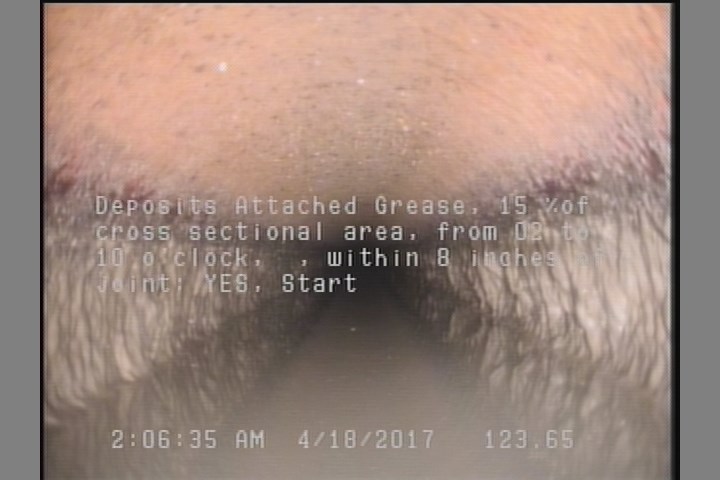

  • Deposits Attached Grease, 15 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    123.7 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

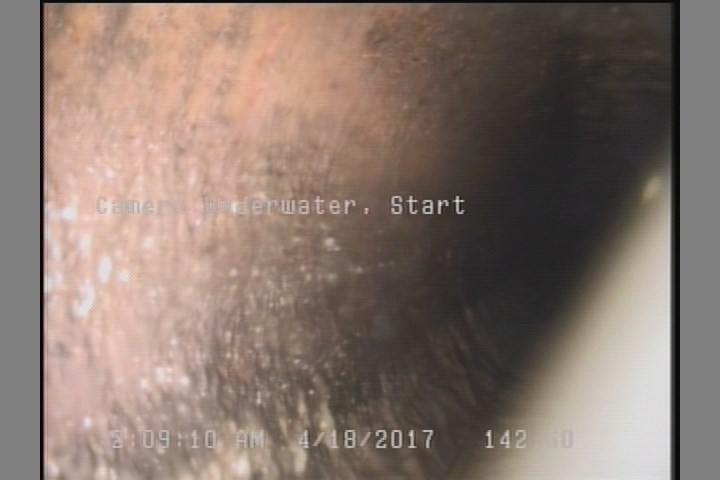

  • Camera Underwater, Start

    142.6 ft. - Camera Underwater, Start

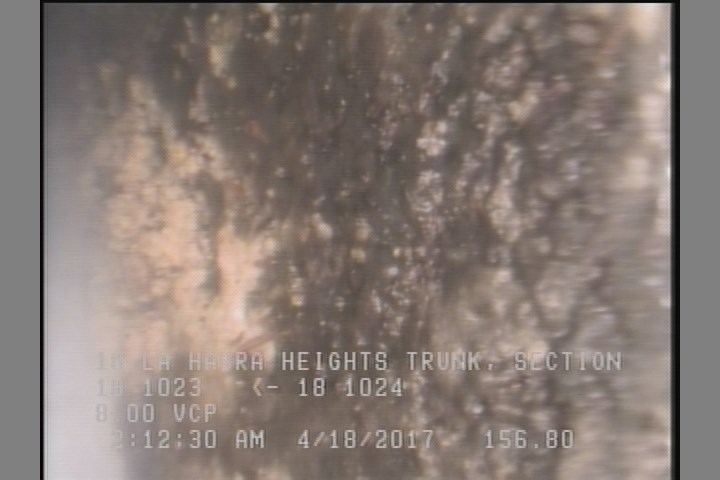

  • Water Level, 90 %of cross sectional area

    156.8 ft. - Water Level, 90 %of cross sectional area

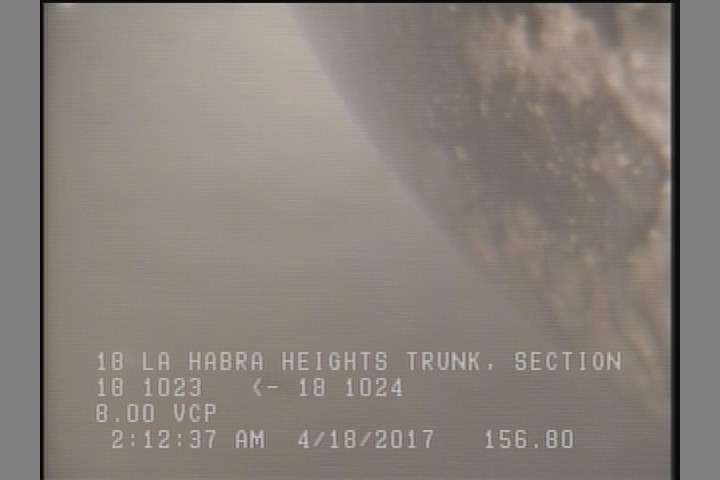

  • Survey Abandoned - WATER LEVEL HIGH CAMERA UNDERWATER

    156.8 ft. - Survey Abandoned - WATER LEVEL HIGH CAMERA UNDERWATER

All inspections of P14878Work order 630156

Observations (19)

DistanceCodeObservation
123.7DAGS—
156.8DAGS—
60.8TFA—
81.6DAGS—
0MWL—
156.8MCU—
156.8MWL—
0MWM—
0AMH18 1023
142.6MCU—
81.5DAGS—
123.7DAGS—
58.2TFA—
2.1DAGS—
156.8MGOMAGNEZIUM H.O. FINISH
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
2.1MGOMAGNESIUM H.O. START
156.8MSAWATER LEVEL HIGH CAMERA UNDERWATER
0MGOLINER

Properties (6)

additional_info
SC306847
custom_field_two
5
customer
LACSD
datetime
2017-04-18T01:57:11-07:00
lining
CIPP
year_laid
35982
