Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 11, 2017, 05:46 AM

  • 04 0069_04 0068_10102017_224756.mp4

Date
10/10/2017
W/O
663102
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11804
Time
10:46 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4746
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
WO_663102_TV04022_OCT2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
04 0069
Downstream MH
04 0068
Dir. of Survey
Downstream
Length Surveyed
286.8 ft.
Total Length
286.8 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 04 0069 to 04 0068
MH: 04 0069MH: 04 0068downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04 00690 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area27.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"31.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"82.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS86.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"104.3 ft. CM - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES107.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"146.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"147.4 ft. H - Hole, at 12 o'clock, within 8 inches of joint: YES186.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.5 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"226.5 ft. H - Hole, at 12 o'clock, within 8 inches of joint: YES228 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"229.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"267.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"284.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE286.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK286.8 ft. AMH - Downstream Manhole, Survey Ends - 04 0068

Observation photos (4)

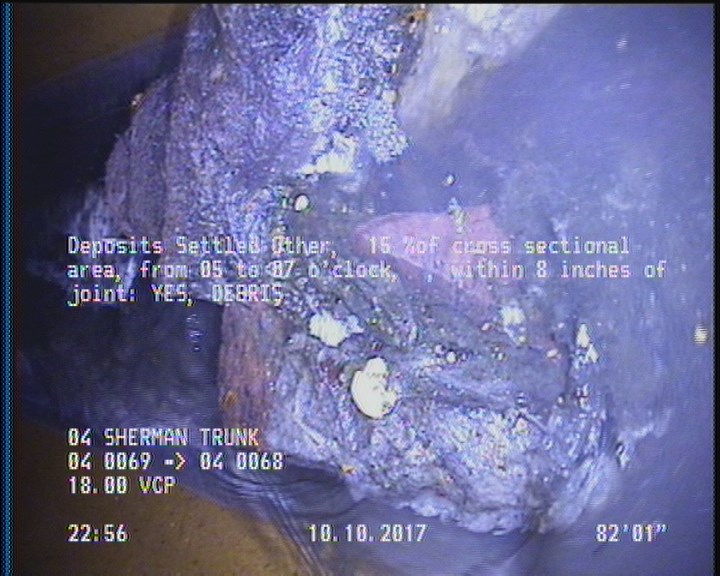

  • Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS

    82.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS

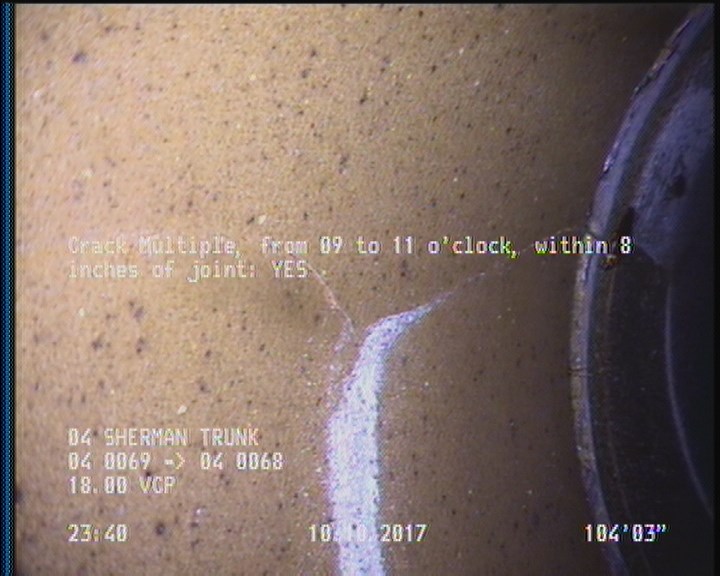

  • Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

    104.3 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

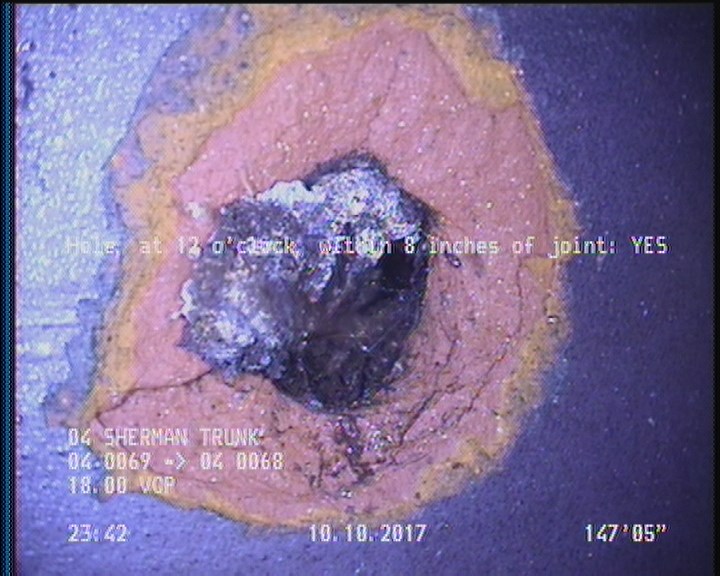

  • Hole, at 12 o'clock, within 8 inches of joint: YES

    147.4 ft. - Hole, at 12 o'clock, within 8 inches of joint: YES

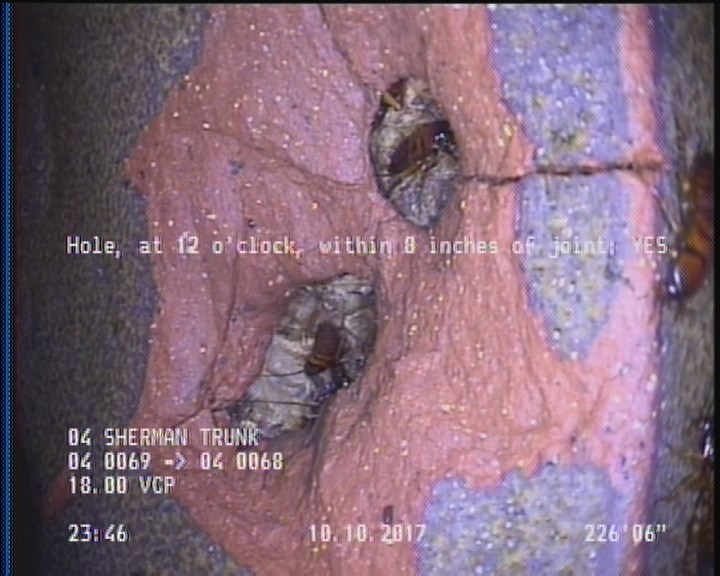

  • Hole, at 12 o'clock, within 8 inches of joint: YES

    226.5 ft. - Hole, at 12 o'clock, within 8 inches of joint: YES

All inspections of P11804Work order 663102

Observations (22)

DistanceCodeObservation
286.8MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH04 0069
0MWM—
107.2TFC—
286.8AMH04 0068
147.4H—
0MWL—
146.5TF—
193.5TBA—
226.5H—
284.6MGOCOCKROACHES IN MANHOLE
267.3TFC—
82.1DSZDEBRIS
86.7TFC—
65.8TF—
104.3CM—
31.6TBA—
186.4TFC—
229.3TBA—
228TFC—
206.9TFC—
27.2TF—

Properties (4)

additional_info
SC346061
custom_field_two
2
customer
LACSD
datetime
2017-10-10T22:46:50-07:00
