Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 08:31 AM

  • A 1210_A 1209 _17102017_095342.mp4

Date
09/21/2017
W/O
658261
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00973
PipeID
P02858
Time
1:31 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3995-SC345595
Sewer Name
A JOINT OUTFALL A - UNIT 9
City
COMMERCE CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
20
Purpose
Routine Assessment
Project
WO_658261_TV02207_SEP2017
Sewer Type
Gravity
Material
RCP-CTL
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
A 1210
Downstream MH
A 1209
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 1210 to A 1209
MH: A 1210MH: A 1209downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 12100 ft. MWM - Water Mark, 40 %of cross sectional area2.1 ft. MSA - Survey Abandoned - UNABLE TO GET PAST GREASE2.1 ft. DAGS - Deposits Attached Grease, 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

Observation photos (1)

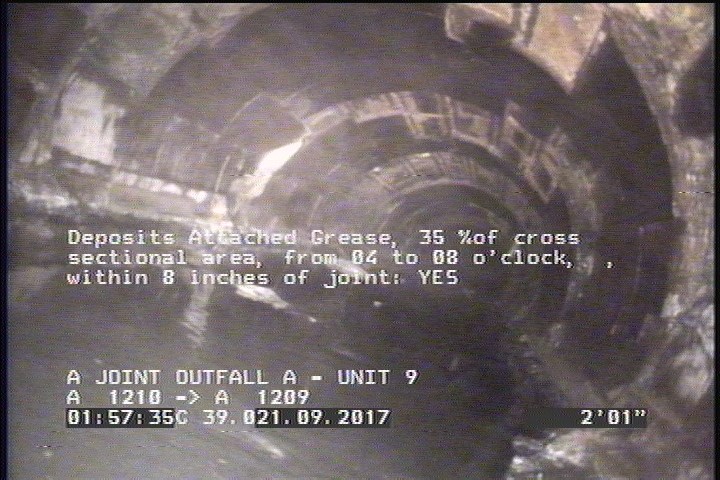

  • Deposits Attached Grease, 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    2.1 ft. - Deposits Attached Grease, 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

All inspections of P02858Work order 658261

Observations (5)

DistanceCodeObservation
2.1MSAUNABLE TO GET PAST GREASE
0MWL—
0AMHA 1210
2.1DAGS—
0MWM—

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2017-09-21T01:31:06-07:00
