Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 07:03 AM

  • 02 0714B_02 0714A_22092017_000405.mpg

Date
09/22/2017
W/O
657991
Weather
Dry
Operator/Surveyor
CORTEZ ESTEBAN
Sewer ID
Z00294
PipeID
P18784
Time
12:03 AM
Certificate
U-209-8148
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4933
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_657991_TV02264_SEP2017
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0714A
Downstream MH
02 0714B
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5141
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 02 0714A to 02 0714B
MH: 02 0714AMH: 02 0714Bupstream0 ft. MGP - General Photograph0 ft. MSA - Survey Abandoned - VIEW OF THE U/S SIPHON FROM D/S MH0 ft. SAM - Surface Aggregate Missing, from 07 to 05 o'clock, within 8 inches of joint: YES0 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES0 ft. BVV - Broken Void Visible, from 11 to 01 o'clock, within 8 inches of joint: YES2 ft. AMH - Downstream Manhole, Survey Begins - 02 0714A

Observation photos (5)

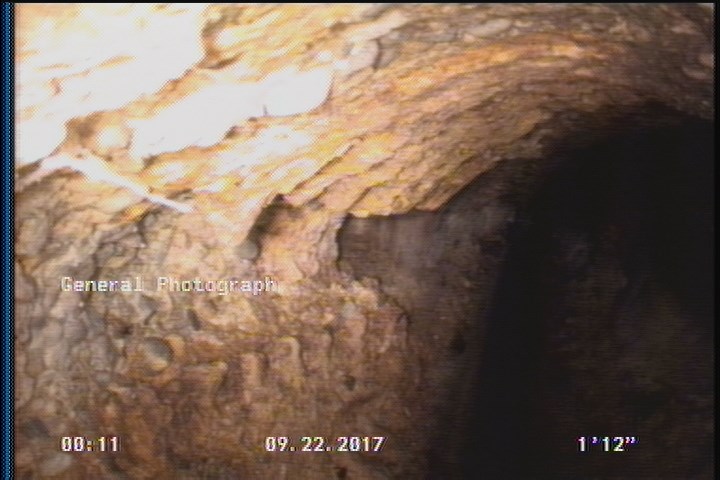

  • General Photograph

    2 ft. - General Photograph

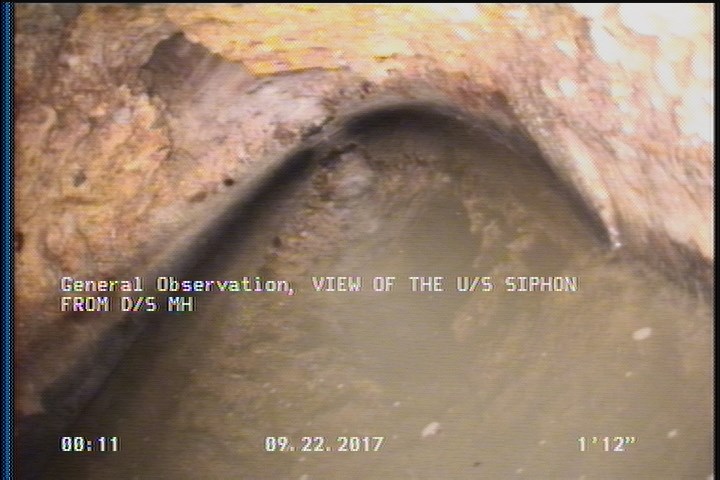

  • Survey Abandoned - VIEW OF THE U/S SIPHON FROM D/S MH

    2 ft. - Survey Abandoned - VIEW OF THE U/S SIPHON FROM D/S MH

  • Surface Aggregate Missing, from 07 to 05 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Missing, from 07 to 05 o'clock, within 8 inches of joint: YES

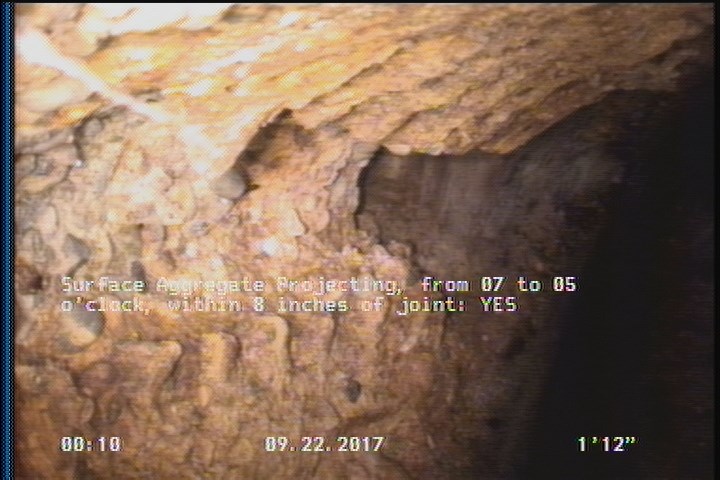

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

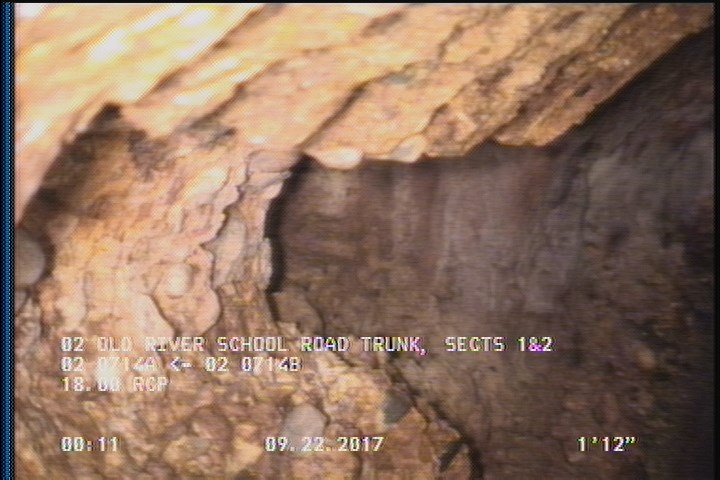

  • Broken Void Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

    2 ft. - Broken Void Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P18784Work order 657991

Observations (6)

DistanceCodeObservation
2MGP—
2MSAVIEW OF THE U/S SIPHON FROM D/S MH
2SAM—
0AMH02 0714A
2SAP—
2BVV—

Properties (4)

additional_info
SC345841
custom_field_two
1
customer
LACSD
datetime
2017-09-22T00:03:41-07:00
