Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 06:38 AM
F 0163_F 0162_20160329_235138.mp4
- Date
- 03/29/2016
- W/O
- 563421
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00044
- PipeID
- P10298
- Time
- 11:38 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3239
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37A
- Purpose
- Routine Assessment
- Project
- WO_563421_TV18071_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- F 0163
- Downstream MH
- F 0162
- Dir. of Survey
- Downstream
- Length Surveyed
- 149.1 ft.
- Total Length
- 149.1 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 1
Observation photos (4)
0 ft. - Water Mark, 35 %of cross sectional area
2 ft. - General Observation - MAGNEZIUM H.O. START

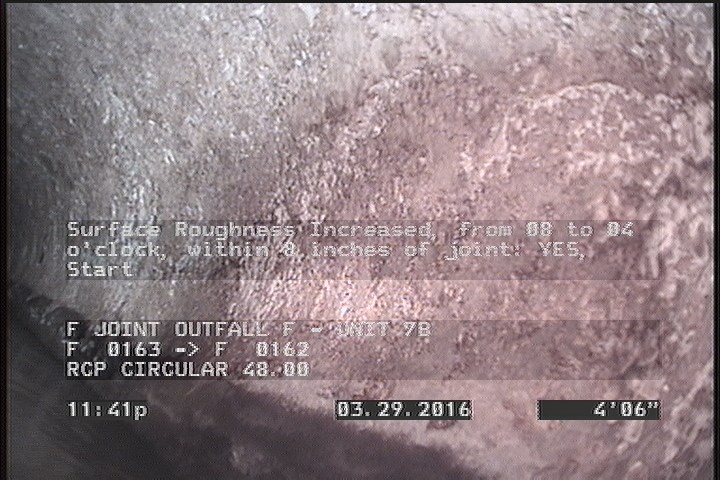

4.4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
149.1 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 149.1 | MSA | DUE TO DEBRIS IN PIPE |
| 2 | MGO | MAGNEZIUM H.O. START |
| 0 | MWM | — |
| 4.4 | SRI | — |
| 0 | AMH | F 0163 |
| 149.1 | SRI | — |
| 149.1 | MGO | DEBRIS IN PIPE |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC305330
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-03-29T23:38:18-07:00
