Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 11:10 AM
01 0093_01 0092_20160330_042729.mp4
- Date
- 03/30/2016
- W/O
- 563897
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00209
- PipeID
- P00762
- Time
- 4:10 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3240
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_563897_TV01254_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 01 0093
- Downstream MH
- 01 0092
- Dir. of Survey
- Downstream
- Length Surveyed
- 338 ft.
- Total Length
- 338 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

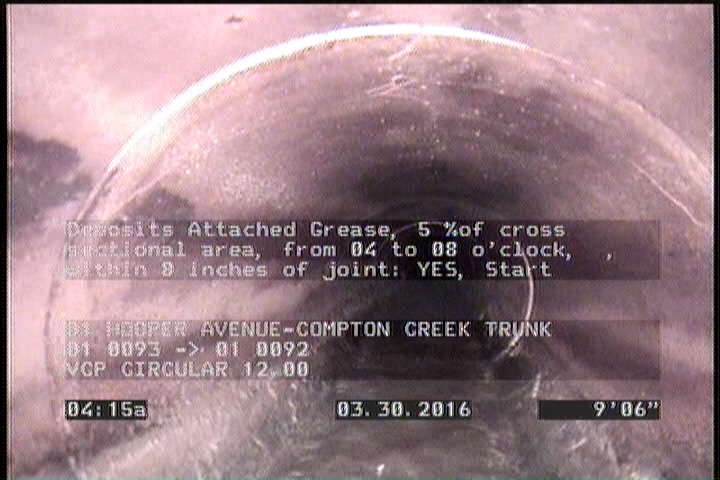

8.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

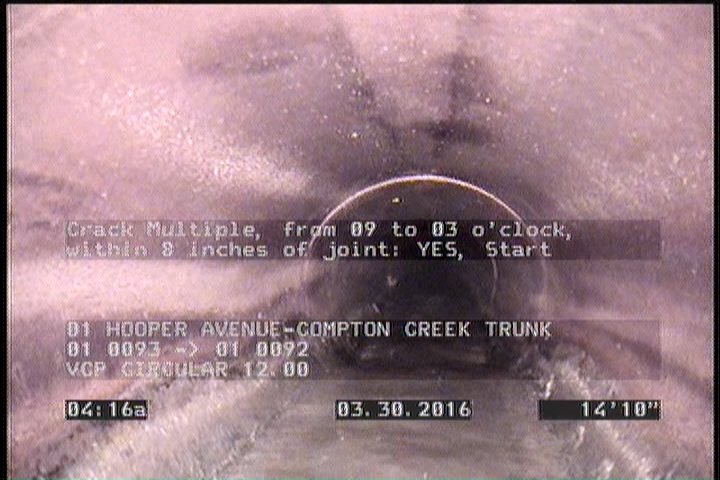

13 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

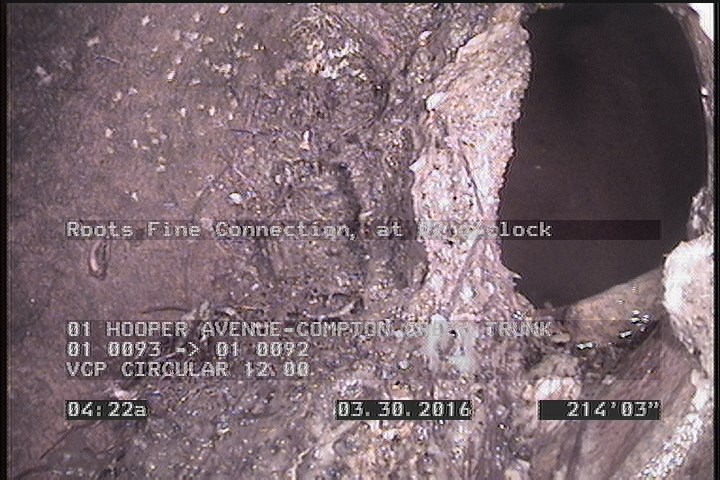

214.2 ft. - Roots Fine Connection, at 02 o'clock

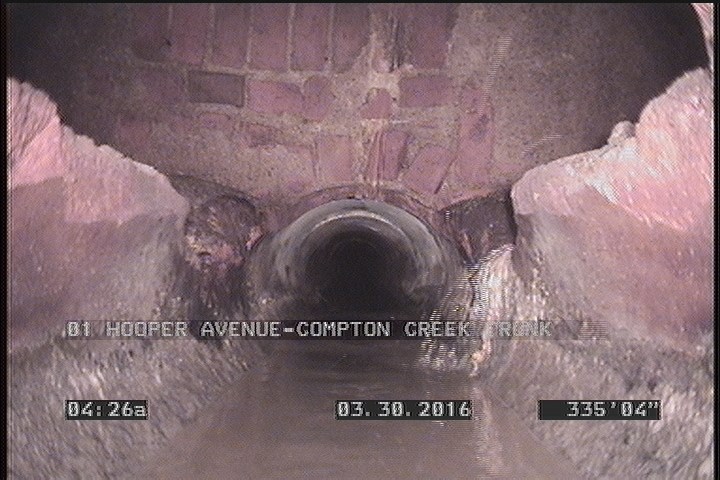

335.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 214.2 | TFA | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | AMH | 01 0093 |
| 214.2 | RFC | — |
| 270.4 | CM | — |
| 265.3 | TFC | — |
| 8.7 | DAGS | — |
| 335.3 | DAGS | — |
| 0 | MWM | — |
| 13 | CM | — |
| 145.8 | TF | — |
| 338 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MWL | — |
| 338 | MGO | LATERAL AT MH 9 OCLOCK |
| 94.8 | TFC | — |
| 338 | AMH | 01 0092 |
Properties (4)
- additional_info
- SC305331
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-30T04:10:45-07:00
