Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 10:44 AM
01 1261_01 1260_15032016_034535.mp4
- Date
- 03/15/2016
- W/O
- 557613
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00208
- PipeID
- P00859
- Time
- 3:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3291
- Sewer Name
- 01 HOLMES-WILLOWBROOK TRUNK
- City
- WILLOWBROOK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_557613_TV01033_2016MAR
- Sewer Type
- SIPHON
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 01 1260
- Downstream MH
- 01 1261
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

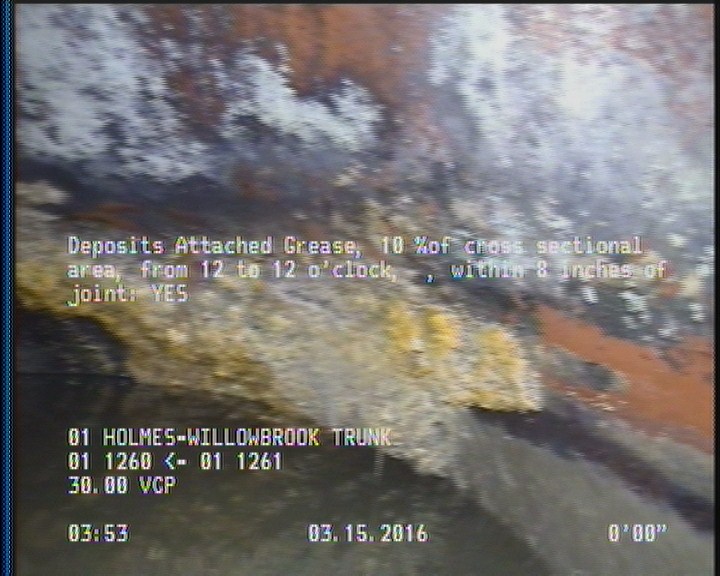

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES

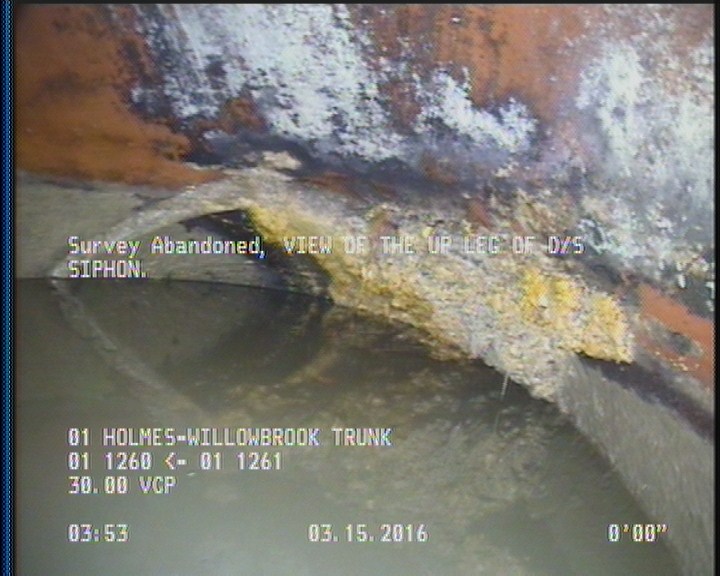

2 ft. - Survey Abandoned - VIEW OF THE UP LEG OF D/S SIPHON.
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 2 | MSA | VIEW OF THE UP LEG OF D/S SIPHON. |
| 0 | AMH | 01 1260 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305415
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-15T03:44:50-07:00
- year_laid
- 19750613
