Wastewater/Activity/PacpInspection/1.0Mar 16, 2016, 05:52 AM
B 0328_B 0327_15032016_225315.mp4
- Date
- 03/15/2016
- W/O
- 557611
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00090
- PipeID
- P08853
- Time
- 10:52 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3293
- Sewer Name
- B JOINT OUTFALL B - UNIT 4B
- City
- ROSEMEAD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_557611_TV15046_2016MAR
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- B 0328
- Downstream MH
- B 0327
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.9 ft.
- Total Length
- 400.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 158
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 158
Observation photos (3)

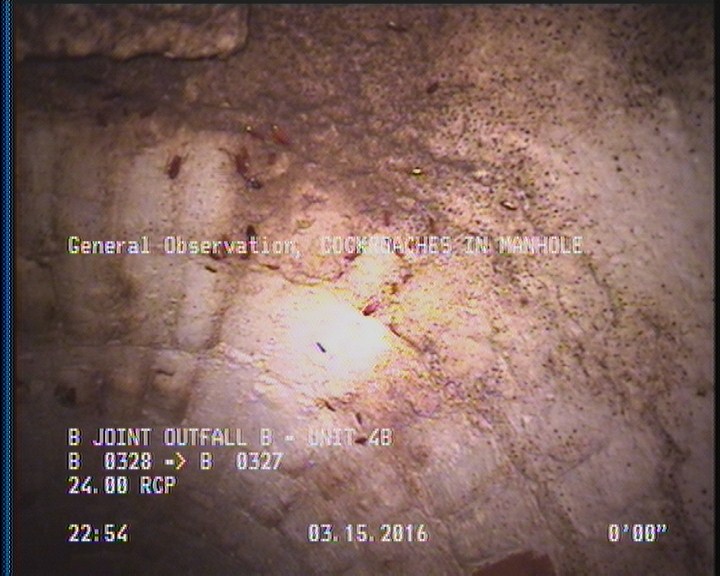

0 ft. - General Observation - COCKROACHES IN MANHOLE

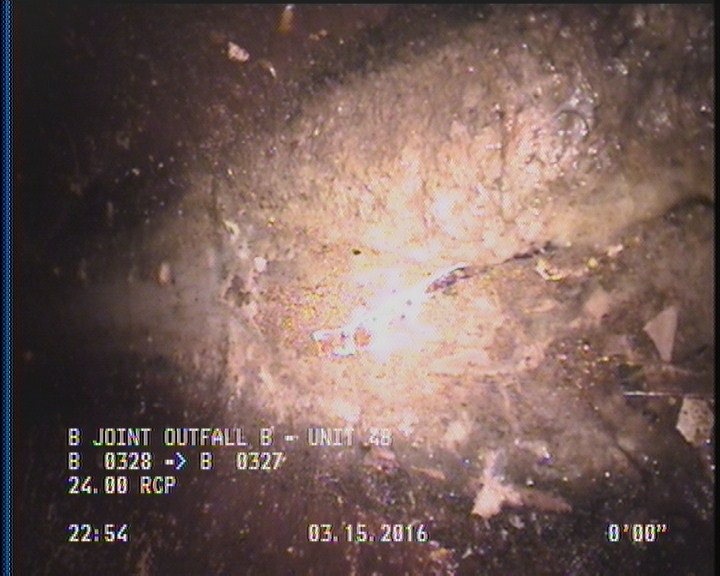

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

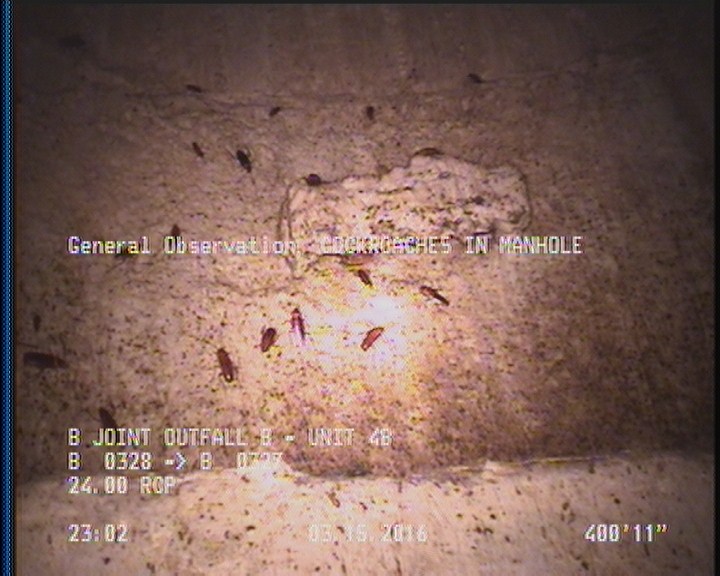

400.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 2 | MGO | MAG COATING 90% |
| 0 | MWL | — |
| 400.9 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | B 0328 |
| 399.3 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 400.9 | AMH | B 0327 |
Properties (4)
- additional_info
- SC305417
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-15T22:52:44-07:00
