Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 18, 2016, 10:42 AM

  • B 0347_B 0346_18032016_034320.mp4

Date
03/18/2016
W/O
557610
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00090
PipeID
P08859
Time
3:42 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3297
Sewer Name
B JOINT OUTFALL B - UNIT 4B
City
ROSEMEAD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
15
Purpose
Routine Assessment
Project
WO_557610_TV15045_2016MAR
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
B 0347
Downstream MH
B 0346
Dir. of Survey
Downstream
Length Surveyed
320.4 ft.
Total Length
320.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412L
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
130
Pipe schematic from manhole B 0347 to B 0346
MH: B 0347MH: B 0346downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 03470 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area2 ft. MGO - General Observation - MAG COATING 30%2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start238.9 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"317.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE317.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish320.4 ft. AMH - Downstream Manhole, Survey Ends - B 0346

Observation photos (3)

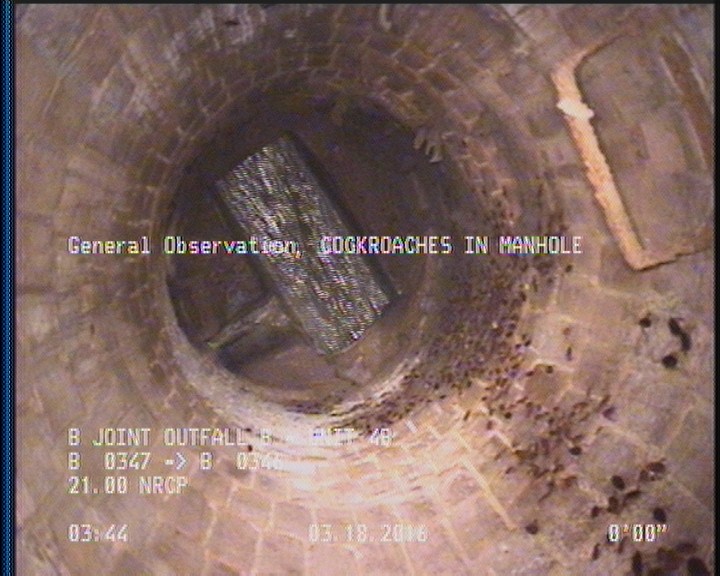

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

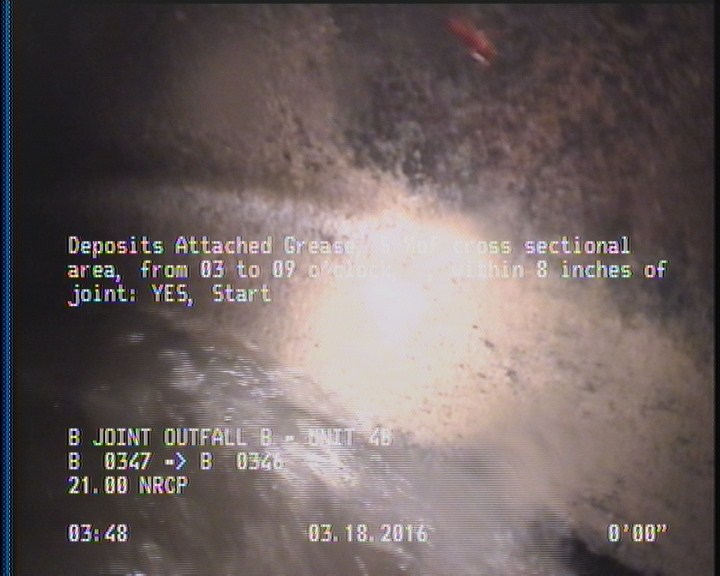

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

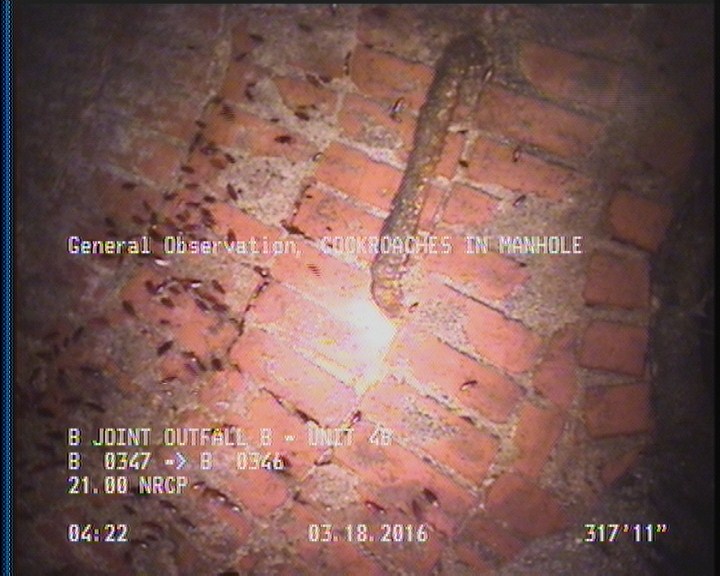

  • General Observation - COCKROACHES IN MANHOLE

    317.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P08859Work order 557610

Observations (10)

DistanceCodeObservation
0AMHB 0347
238.9TBA—
0MGOCOCKROACHES IN MANHOLE
317.9MGOCOCKROACHES IN MANHOLE
0MWM—
2MGOMAG COATING 30%
0MWL—
317.9DAGS—
2DAGS—
320.4AMHB 0346

Properties (4)

additional_info
SC305423
custom_field_two
4
customer
LACSD
datetime
2016-03-18T03:42:08-07:00
