Wastewater/Activity/PacpInspection/1.0Mar 10, 2016, 12:02 PM
08 0559_08 0558_10032016_040255.mp4
- Date
- 03/10/2016
- W/O
- 557595
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00015
- PipeID
- P00144
- Time
- 4:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3282
- Sewer Name
- 08 MAIN STREET RELIEF TRUNK
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_557595_TV08024_2016MAR
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 08 0559
- Downstream MH
- 08 0558
- Dir. of Survey
- Downstream
- Length Surveyed
- 619.8 ft.
- Total Length
- 619.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

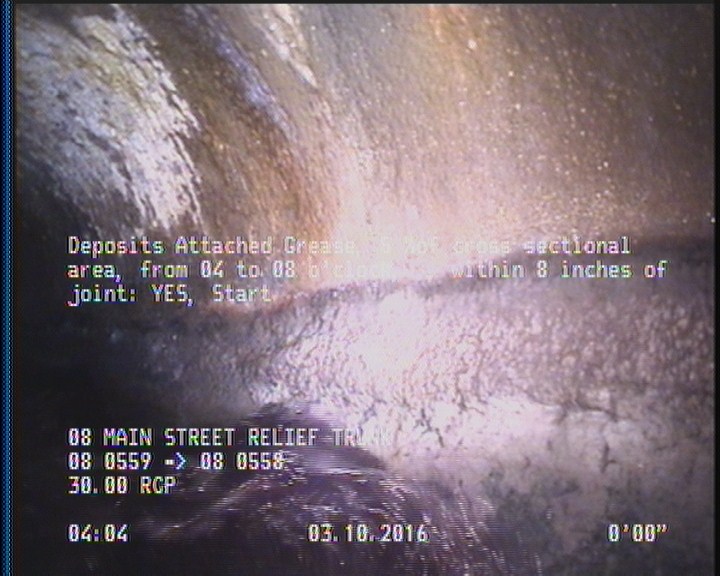

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

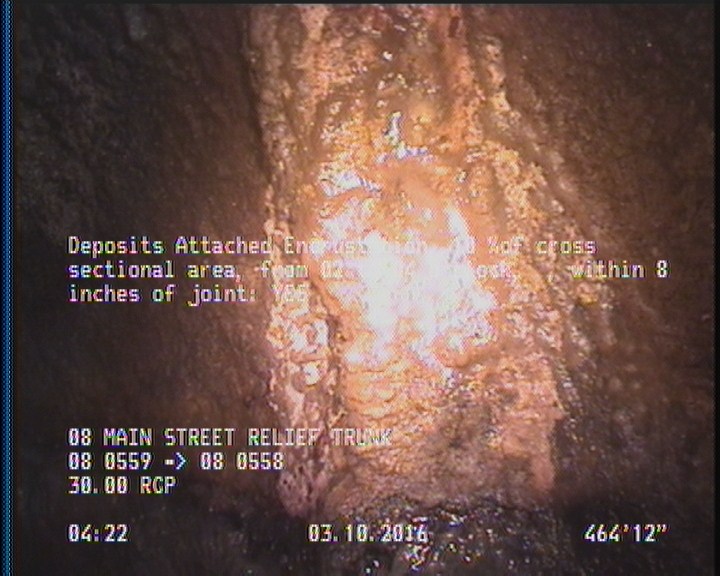

465 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 02 to 04 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 247.6 | TFA | — |
| 0 | AMH | 08 0559 |
| 465 | DAE | — |
| 2 | MGO | MAG COATING 70% |
| 619.8 | AMH | 08 0558 |
| 2 | DAGS | — |
| 618 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305406
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-10T04:02:34-08:00
- year_laid
- 19740709
