Wastewater/Activity/PacpInspection/1.0Mar 7, 2016, 12:37 PM
08 0117_08 0116_07032016_043740.mp4
- Date
- 03/07/2016
- W/O
- 557595
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00015
- PipeID
- P00167
- Time
- 4:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3278
- Sewer Name
- 08 MAIN STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_557595_TV08024_2016MAR
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 08 0117
- Downstream MH
- 08 0116
- Dir. of Survey
- Downstream
- Length Surveyed
- 535.4 ft.
- Total Length
- 535.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2T00
- O&M Rating
- 212
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 212
Observation photos (1)

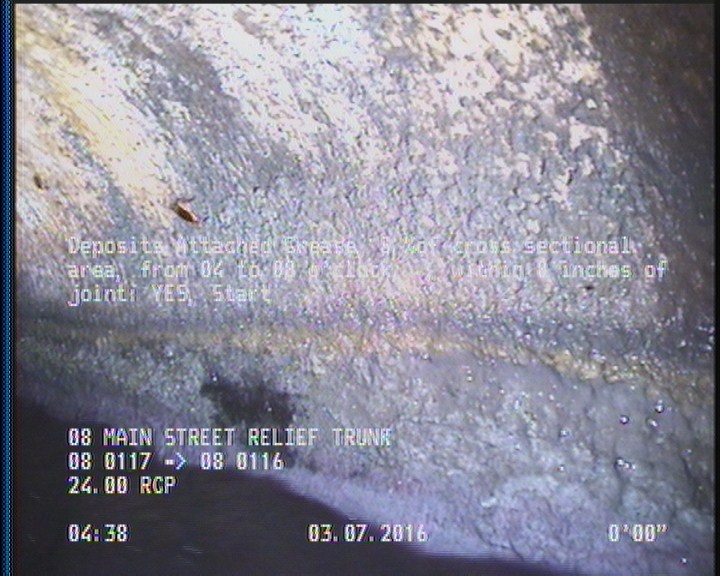

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 533.1 | DAGS | — |
| 535.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 0 | AMH | 08 0117 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 2 | MGO | MAG COATING 80% |
| 535.4 | AMH | 08 0116 |
Properties (4)
- additional_info
- SC305402
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-07T04:37:14-08:00
