Wastewater/Activity/PacpInspection/1.0Mar 17, 2016, 07:43 AM
08 0549_08 0013_17032016_004446.mp4
- Date
- 03/17/2016
- W/O
- 557595
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00015
- PipeID
- P00179
- Time
- 12:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3295
- Sewer Name
- 08 MAIN STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_557595_TV08024_2016MAR
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 08 0549
- Downstream MH
- 08 0013
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (1)

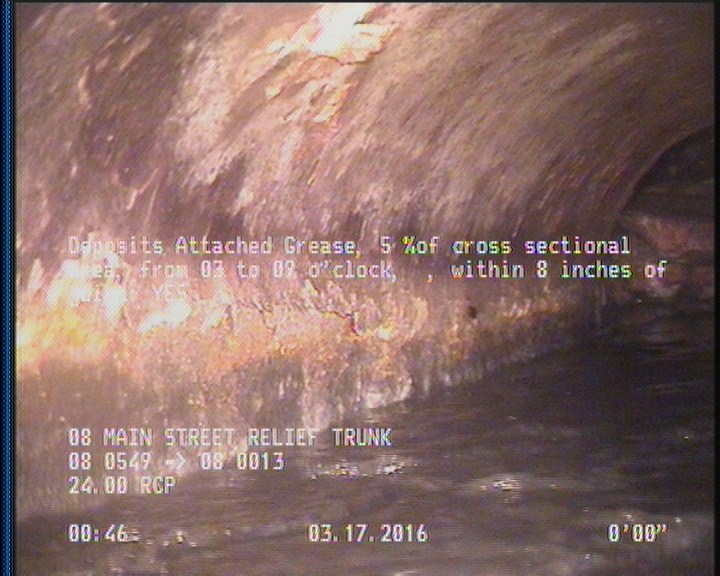

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 08 0549 |
| 0 | MWL | — |
| 2 | SSS | — |
| 2 | DAGS | — |
| 2 | AMH | 08 0013 |
Properties (5)
- additional_info
- SC305419
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-17T00:43:39-07:00
- year_laid
- 19720923
