Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 10, 2016, 06:44 AM

  • 01 1286_01 1285_09032016_224436.mp4

Date
03/09/2016
W/O
557557
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00207
PipeID
P01582
Time
10:44 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3281
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE RELIEF TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_557557_TV01128_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
21 in.
Upstream MH
01 1286
Downstream MH
01 1285
Dir. of Survey
Downstream
Length Surveyed
559.3 ft.
Total Length
559.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
312U
O&M Rating
227
Overall Index
2
Overall Quick
—
Overall Rating
227
Pipe schematic from manhole 01 1286 to 01 1285
MH: 01 1286MH: 01 1285downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 12860 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"34.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"58.8 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"119.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"277.2 ft. TBD - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS351.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"385.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"421.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"472.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"511.8 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"531.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"557.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish559.3 ft. AMH - Downstream Manhole, Survey Ends - 01 1285

Observation photos (2)

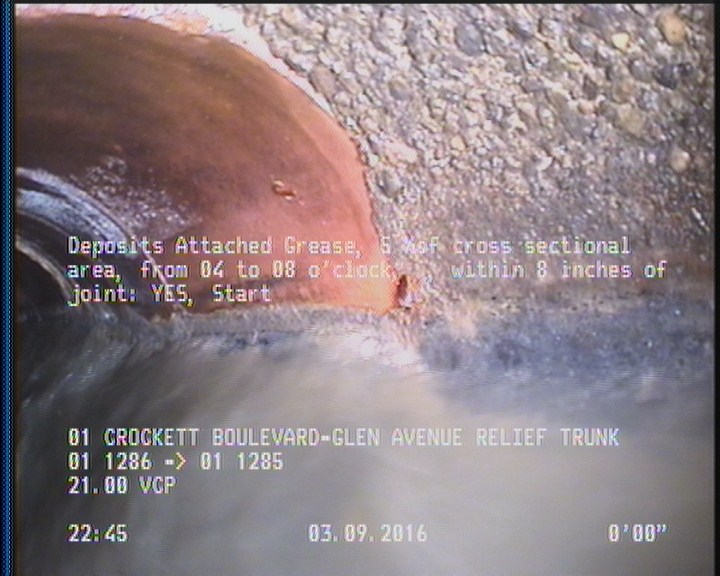

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

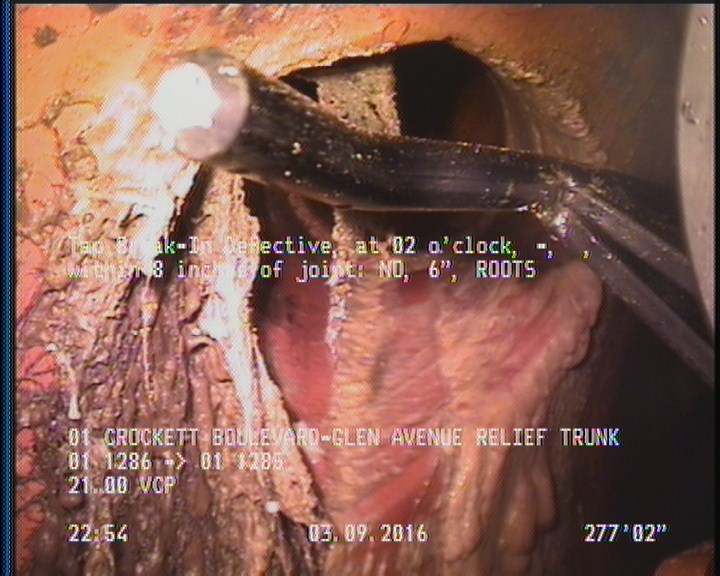

  • Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS

    277.2 ft. - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS

All inspections of P01582Work order 557557

Observations (17)

DistanceCodeObservation
531.2TBA—
559.3AMH01 1285
421.1TFA—
385.4TFA—
557.2DAGS—
119.2TF—
2DAGS—
0MWM—
277.2TBDROOTS
351.2TFA—
6.6TFA—
0AMH01 1286
34.4TBA—
58.8TBC—
0MWL—
472.5TFA—
511.8TBA—

Properties (4)

additional_info
SC305405
custom_field_two
4
customer
LACSD
datetime
2016-03-09T22:44:20-08:00
