Wastewater/Activity/PacpInspection/1.0Mar 10, 2016, 09:30 AM
01 1284_E 0102_10032016_013024.mp4
- Date
- 03/10/2016
- W/O
- 557557
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00207
- PipeID
- P02164
- Time
- 1:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3281
- Sewer Name
- 01 CROCKETT BOULEVARD-GLEN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_557557_TV01128_2016MAR
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 1284
- Downstream MH
- E 0102
- Dir. of Survey
- Downstream
- Length Surveyed
- 24 ft.
- Total Length
- 24 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

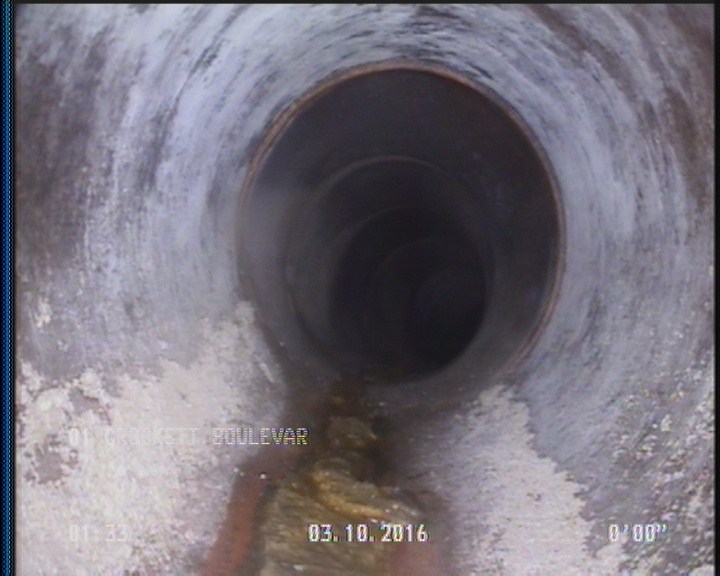

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

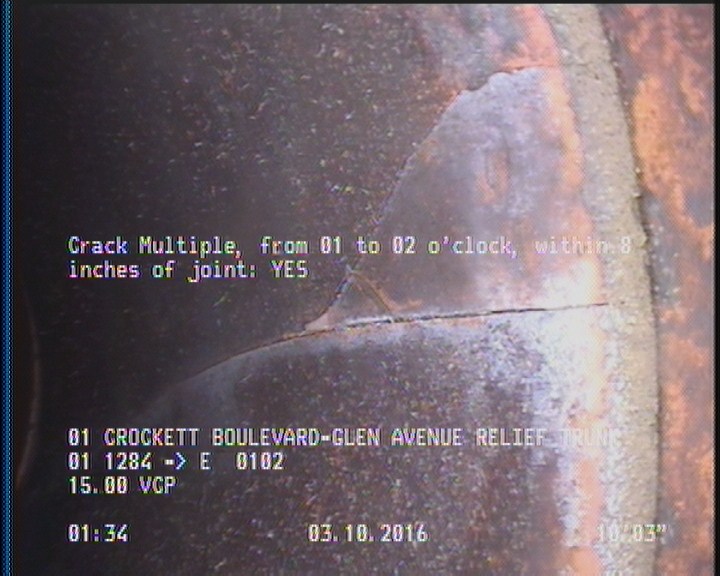

10.2 ft. - Crack Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES

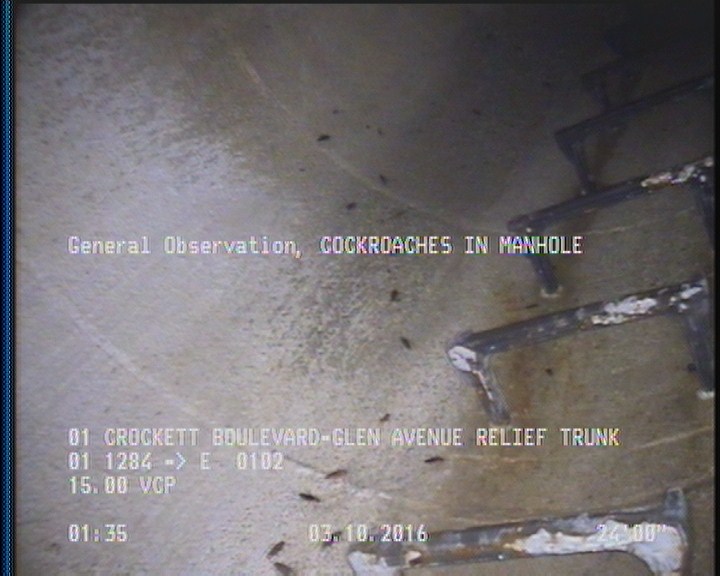

24 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 24 | DAE | — |
| 0 | MWL | — |
| 0 | AMH | 01 1284 |
| 24 | MGO | COCKROACHES IN MANHOLE |
| 24 | AMH | E 0102 |
| 2 | DAE | — |
| 10.2 | CM | — |
| 24 | MGO | CONNECTION AT MH 12 O'CLOCK. |
| 24 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC305405
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-10T01:30:03-08:00
