Wastewater/Activity/PacpInspection/1.0Jan 27, 2016, 07:30 AM
03 0330_03 0329_20160126_233347.mp4
- Date
- 01/26/2016
- W/O
- 531067
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00359
- PipeID
- P04904
- Time
- 11:30 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3127
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- RFIR_WO_531067_TV03106_DEC2015
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0330
- Downstream MH
- 03 0329
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

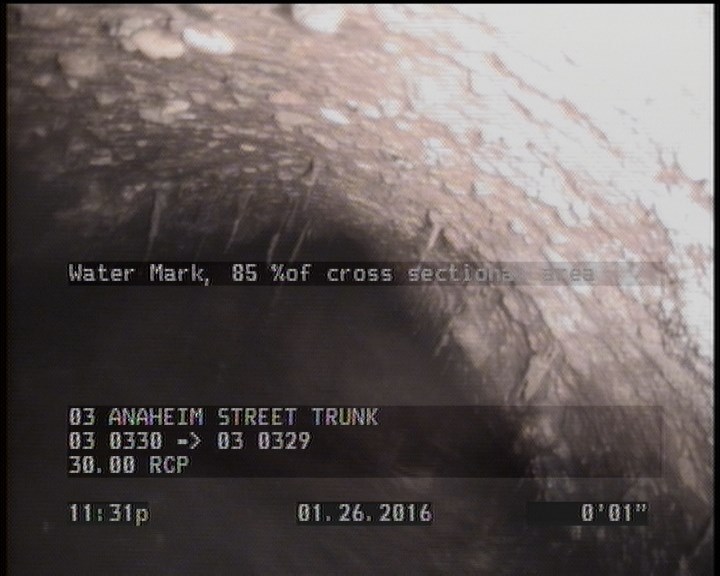

0.1 ft. - Water Mark, 85 %of cross sectional area

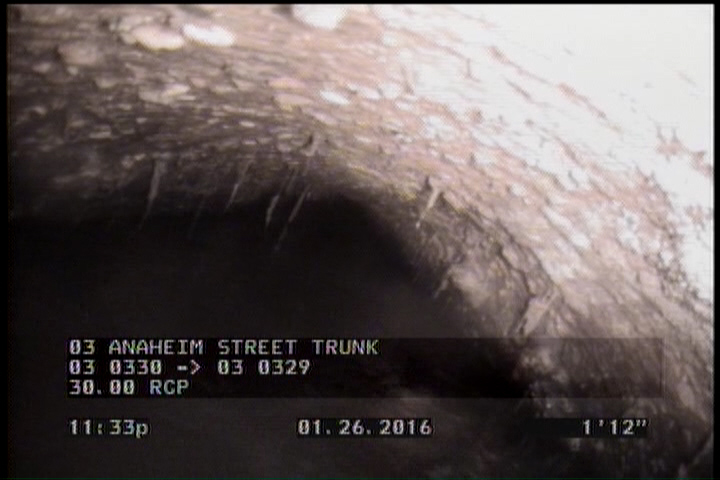

2 ft. - Survey Abandoned - DUE TO CAMERA HITTING TOP OF PIPE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | AMH | 03 0330 |
| 2 | MGO | MAGNESIUM H.O. START |
| 0.1 | MWM | — |
| 2 | MGO | BOAT WILL NOT FLOAT HITTING TOP OF PIPE |
| 2 | MSA | DUE TO CAMERA HITTING TOP OF PIPE |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC225514
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-01-26T23:30:00-08:00
