Wastewater/Activity/PacpInspection/1.0Oct 16, 2015, 07:41 AM

  • H 0476_H 0475_16102015_004305.mp4

Date
10/16/2015
W/O
525248
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00178
PipeID
P10852
Time
12:41 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2804
Sewer Name
H JOINT OUTFALL H - UNIT 5B
City
AVOCADO HEIGHTS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
WO_525248_TV15064_SEPT2015
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
H 0476
Downstream MH
H 0475
Dir. of Survey
Downstream
Length Surveyed
381.5 ft.
Total Length
381.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole H 0476 to H 0475
MH: H 0476MH: H 0475downstream0 ft. MGO - General Observation - CONNECTION AT MH 10 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 04760 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 2 O'CLOCK0 ft. MGO - General Observation - ROACHES IN MH0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.6 ft. MGO - General Observation - MAG COATING 40%10 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"26 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"83.3 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"142.9 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"142.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"238.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"264.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"378.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish378.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish381.5 ft. AMH - Downstream Manhole, Survey Ends - H 0475

Observation photos (3)

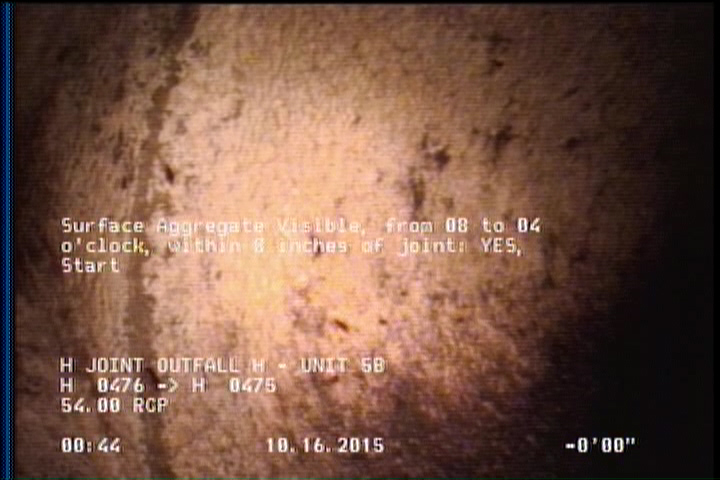

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

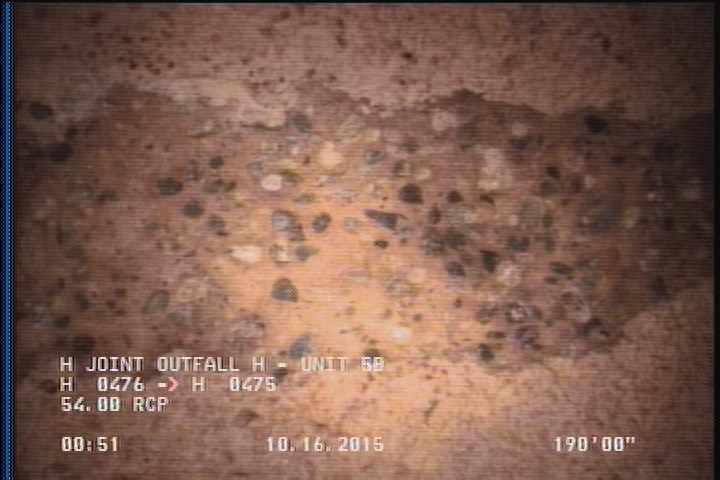

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

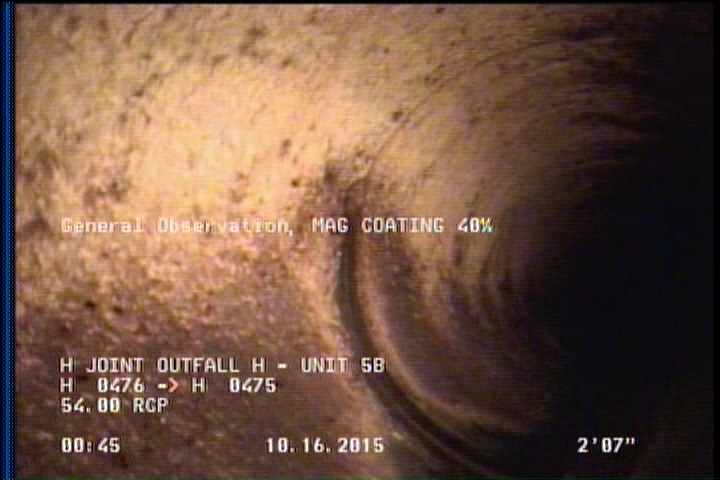

  • General Observation - MAG COATING 40%

    2.6 ft. - General Observation - MAG COATING 40%

All inspections of P10852Work order 525248

Observations (19)

DistanceCodeObservation
0MGOCONNECTION AT MH 10 O'CLOCK
238.9TFC—
0AMHH 0476
264.8TBA—
0MWM—
10TBA—
378.8SAV—
142.9TBA—
142.9TFC—
378.8SAP—
0MGOACTIVE CONNECTION AT MH 2 O'CLOCK
26TBA—
2SAV—
83.3TBA—
2.6MGOMAG COATING 40%
0MGOROACHES IN MH
2SAP—
0MWL—
381.5AMHH 0475

Properties (4)

additional_info
SC203932
custom_field_two
2
customer
LACSD
datetime
2015-10-16T00:41:42-07:00
