Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 10:13 AM
01 0528_01 0527A_12052016_021746.mp4
- Date
- 12/05/2016
- W/O
- 602233
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00206
- PipeID
- P01015
- Time
- 2:13 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3896
- Sewer Name
- 01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_602233_TV01017_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0527A
- Downstream MH
- 01 0528
- Dir. of Survey
- Upstream
- Length Surveyed
- 39.6 ft.
- Total Length
- 39.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2713
- O&M Rating
- 17
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (1)

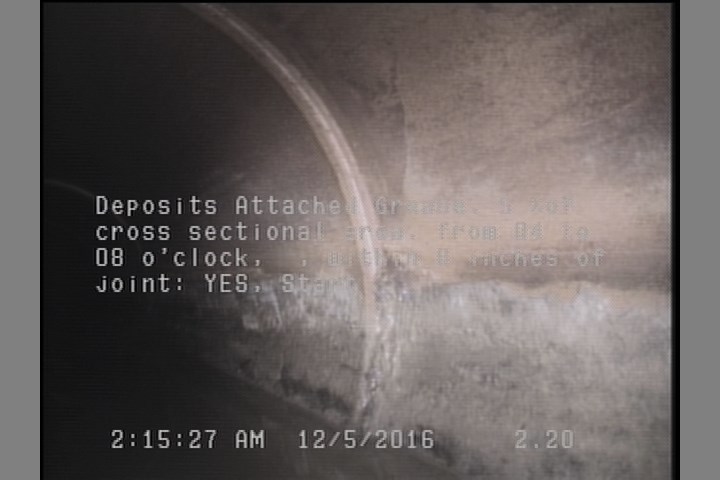

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | AT MH |
| 0 | MWL | — |
| 39.6 | VC | AT MH |
| 0 | MWM | — |
| 2.2 | DAGS | — |
| 0 | AMH | 01 0527A |
| 18.7 | VC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 39.6 | AMH | 0 1 0528 |
| 36.5 | DAGS | — |
Properties (4)
- additional_info
- SC305230
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-05T02:13:39-08:00
