Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 10:18 AM

  • 01 0529_01 0528_12052016_022804.mp4

Date
12/05/2016
W/O
602233
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00206
PipeID
P01016
Time
2:18 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3896
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_602233_TV01017_DEC2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0528
Downstream MH
01 0529
Dir. of Survey
Upstream
Length Surveyed
134.2 ft.
Total Length
134.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D12
O&M Rating
56
Overall Index
2
Overall Quick
—
Overall Rating
56
Pipe schematic from manhole 01 0528 to 01 0529
MH: 01 0528MH: 01 0529upstream0 ft. VC - Vermin Cockroach, within 8 inches of joint: NO - AT MH0 ft. AMH - Upstream Manhole, Survey Ends - 01 05292.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish12.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"14 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE32.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"59.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"107.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"110.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"132 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start134.2 ft. VC - Vermin Cockroach, within 8 inches of joint: NO - AT MH134.2 ft. MWM - Water Mark, 15 %of cross sectional area134.2 ft. AMH - Downstream Manhole, Survey Begins - 01 0528134.2 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (1)

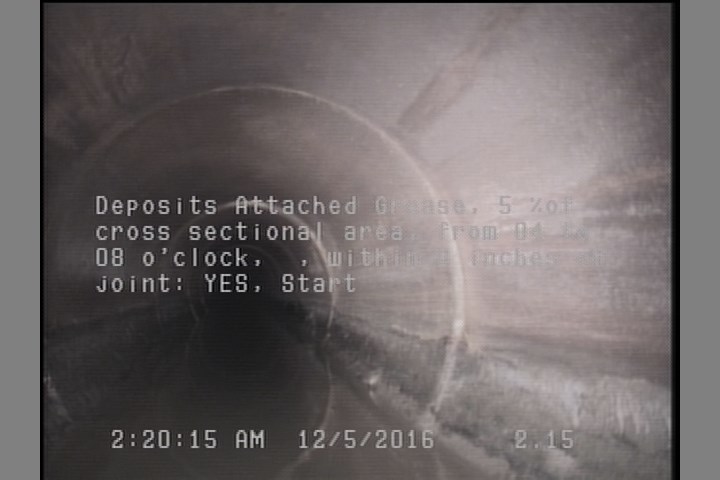

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01016Work order 602233

Observations (14)

DistanceCodeObservation
0VCAT MH
26.5TFC—
2.2DAGS—
0MWM—
101.4TFC—
0AMH01 0528
120.2OBZDEBRIS NOT VISIBLE
23.4TFC—
131.5DAGS—
74.7TFC—
121.5TFC—
134.2VCAT MH
134.2AMH01 0529
0MWL—

Properties (4)

additional_info
SC305230
custom_field_two
4
customer
LACSD
datetime
2016-12-05T02:18:31-08:00
