Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 12:18 PM

  • 01 0520_01 0519_12052016_044210.mp4

Date
12/05/2016
W/O
602233
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00206
PipeID
P01004
Time
4:18 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3896
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_602233_TV01017_DEC2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0520
Downstream MH
01 0519
Dir. of Survey
Downstream
Length Surveyed
304 ft.
Total Length
304 ft.
Structural Index
1
Structural Quick
1B00
Structural Rating
15
O&M Index
2
O&M Quick
412K
O&M Rating
131
Overall Index
2
Overall Quick
—
Overall Rating
146
Pipe schematic from manhole 01 0520 to 01 0519
MH: 01 0520MH: 01 0519downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. VC - Vermin Cockroach, within 8 inches of joint: NO - AT MH0 ft. AMH - Upstream Manhole, Survey Begins - 01 05202.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"6.6 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"12.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"38.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"47.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"54.4 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start77.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"80.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"104.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"110.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"123 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish130.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"144.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"144.7 ft. RBL - Roots Ball Lateral, at 10 o'clock, 95 %168.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"177.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"207 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"210.4 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - BROKEN INSIDE251.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"253.5 ft. VC - Vermin Cockroach253.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - DEBRIS283.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"299.4 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES301.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish304 ft. VC - Vermin Cockroach, within 8 inches of joint: NO - AT MH304 ft. AMH - Downstream Manhole, Survey Ends - 01 0519

Observation photos (5)

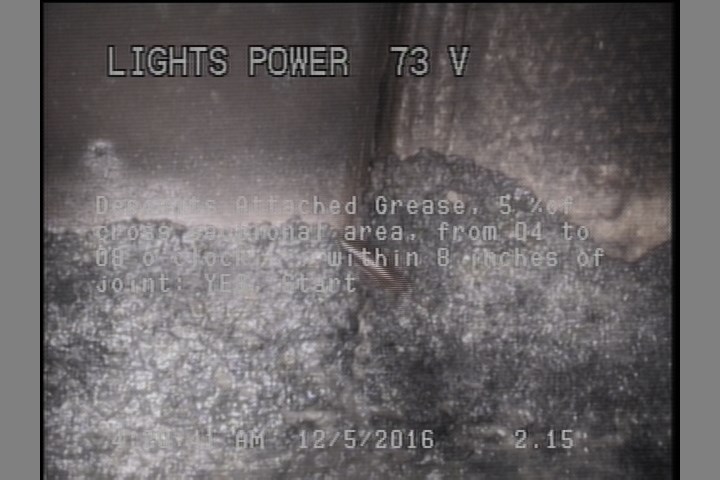

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

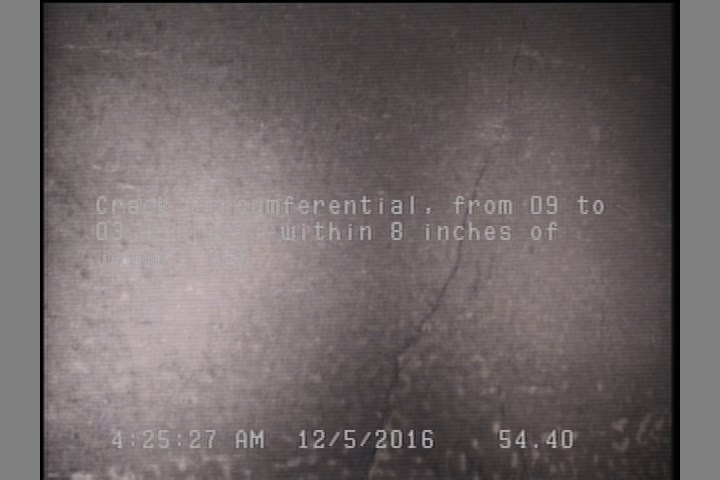

  • Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    54.4 ft. - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

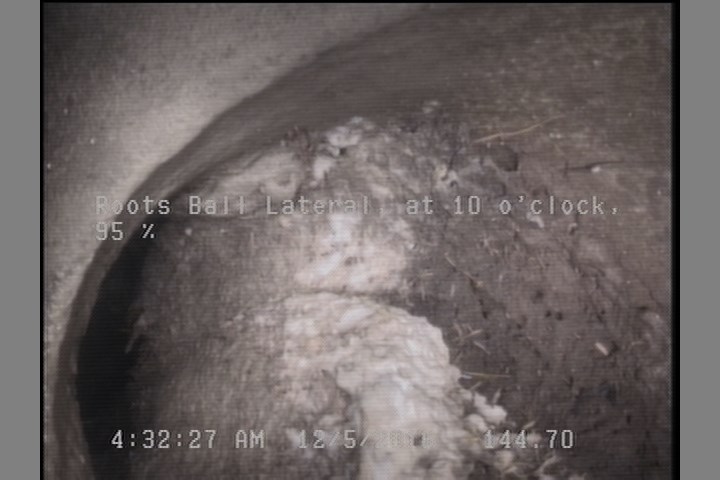

  • Roots Ball Lateral, at 10 o'clock, 95 %

    144.7 ft. - Roots Ball Lateral, at 10 o'clock, 95 %

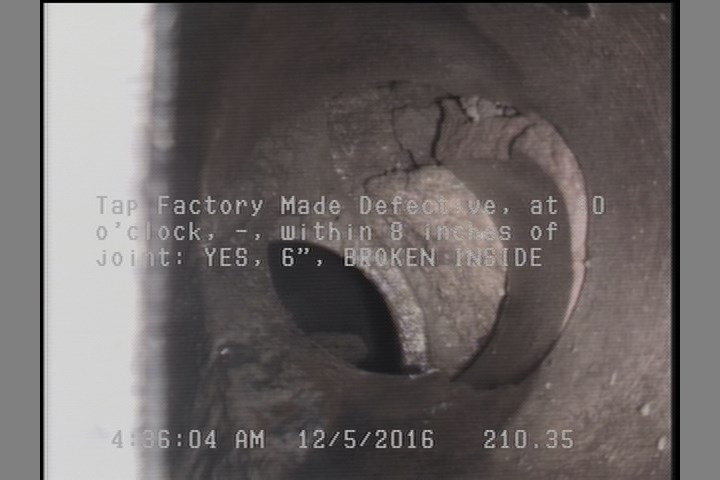

  • Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - BROKEN INSIDE

    210.4 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - BROKEN INSIDE

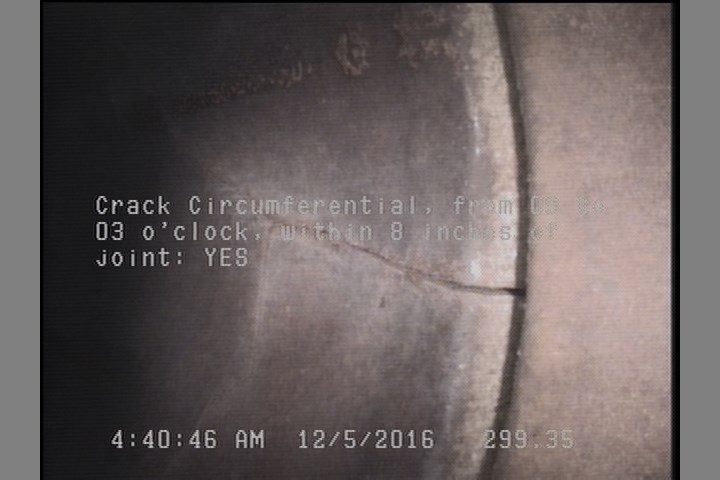

  • Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES

    299.4 ft. - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P01004Work order 602233

Observations (31)

DistanceCodeObservation
0MWL—
12.3TF—
104.7TFC—
210.4TFDBROKEN INSIDE
110.2TFA—
301.2DAGS—
77.2TFC—
2.2DAGS—
6.6TBC—
130.2TFC—
251.1TFA—
304VCAT MH
304AMH01 0519
144.7TFA—
4.1TFA—
0MWM—
177.4TFA—
299.4CC—
38.9TFC—
47.8TFA—
168.7TFC—
54.4CC—
207TFC—
253.6TFDEBRIS
144.7RBL—
283.8TFA—
253.5VC—
123CC—
0VCAT MH
0AMH01 0520
80.9TBA—

Properties (4)

additional_info
SC305230
custom_field_two
3
customer
LACSD
datetime
2016-12-05T04:18:00-08:00
