Wastewater/Activity/PacpInspection/1.0Oct 18, 2016, 08:33 AM
05 2240_05 2239 _18102016_013611.mp4
- Date
- 10/18/2016
- W/O
- 588899
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00429
- PipeID
- P07364
- Time
- 1:33 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3806
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_588899_TV05142_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 2240
- Downstream MH
- 05 2239
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.1 ft.
- Total Length
- 261.1 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

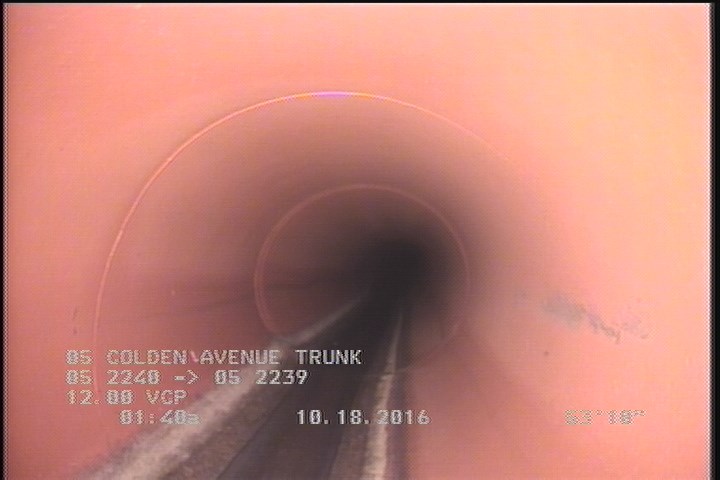

53.9 ft. - Crack Circumferential, from 12 to 12 o'clock, within 8 inches of joint: YES

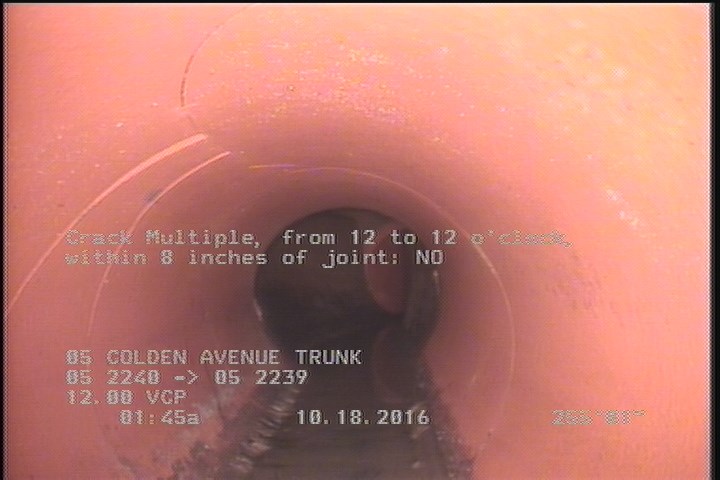

255.1 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 255.1 | CM | — |
| 0 | MWM | — |
| 53.9 | CC | — |
| 0 | MWL | — |
| 0 | AMH | 05 2240 |
| 261.1 | AMH | 05 2239 |
Properties (5)
- additional_info
- SC304551
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-18T01:33:48-07:00
- year_laid
- 28419
