Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 08:39 AM

  • Section#1_02 1757A_02 1757__132018__G6904R.mp4

Date
01/03/2018
W/O
0681588
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00254
PipeID
P04102
Time
12:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6904R
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
DURFEE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Maintenance Related
Project
201803MDM_DOWNEY_BELLFLOWER_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1757A
Downstream MH
02 1757
Dir. of Survey
Downstream
Length Surveyed
196.8 ft.
Total Length
196.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4229
O&M Rating
30
Overall Index
2
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 02 1757A to 02 1757
MH: 02 1757AMH: 02 1757downstream0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN51.6 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 2%69.5 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 2%108.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE110.2 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YESR - 2%131 ft. RTJ - Roots Tap Joint, from 09 to 03 o'clock, 10 %, within 8 inches of joint: YESR137.2 ft. RTJ - Roots Tap Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR138.8 ft. RTJ - Roots Tap Joint, from 07 to 05 o'clock, 10 %, within 8 inches of joint: YESR143.1 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 4%163.9 ft. RTJ - Roots Tap Joint, from 12 to 06 o'clock, 5 %, within 8 inches of joint: YESR175.3 ft. RTJ - Roots Tap Joint, from 09 to 03 o'clock, 10 %, within 8 inches of joint: YESR178.1 ft. RBJ - Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR178.1 ft. RBJ - Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR180.8 ft. RTJ - Roots Tap Joint, from 06 to 11 o'clock, 10 %, within 8 inches of joint: YESR184.5 ft. RTJ - Roots Tap Joint, from 06 to 11 o'clock, 25 %, within 8 inches of joint: YESR192.3 ft. RTJ - Roots Tap Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR196.8 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (4)

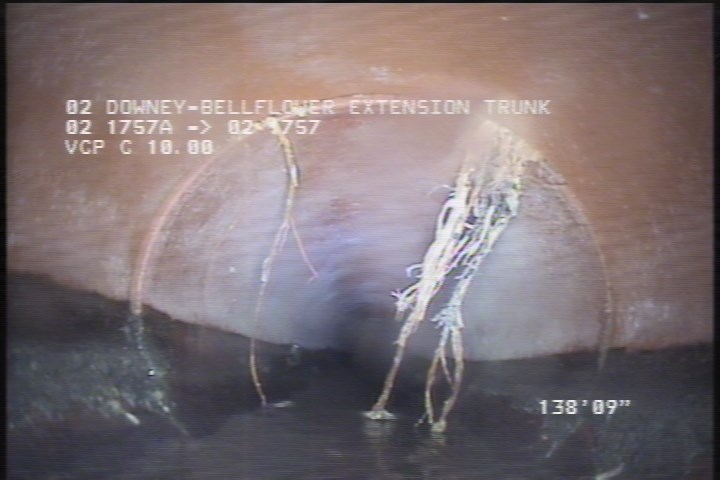

  • Roots Tap Joint, from 07 to 05 o'clock, 10 %, within 8 inches of joint: YESR

    138.8 ft. - Roots Tap Joint, from 07 to 05 o'clock, 10 %, within 8 inches of joint: YESR

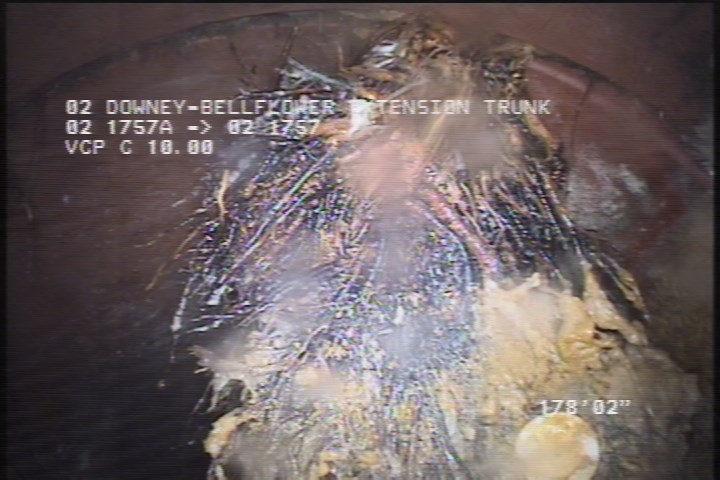

  • Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR

    178.1 ft. - Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR

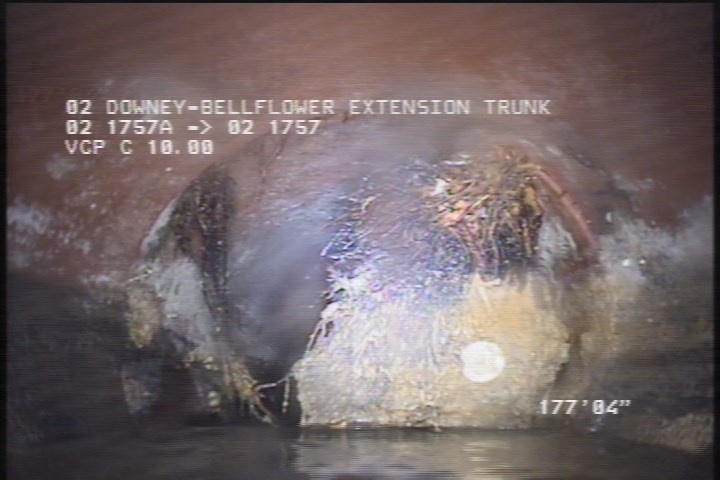

  • Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR

    178.1 ft. - Roots Ball Joint, from 12 to 07 o'clock, 60 %, within 8 inches of joint: YESR

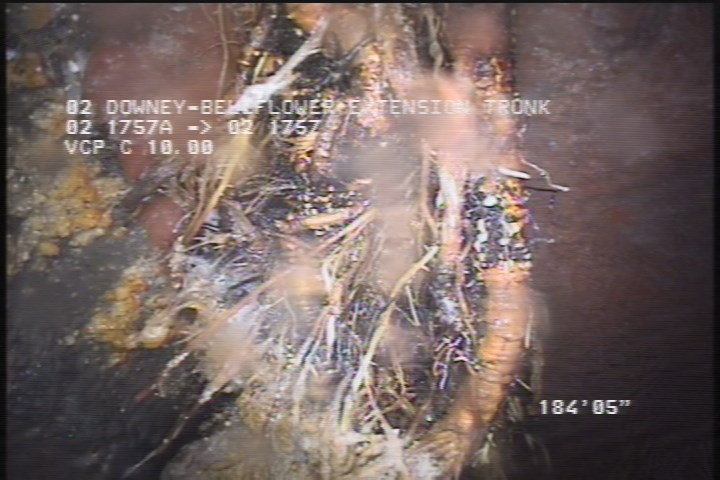

  • Roots Tap Joint, from 06 to 11 o'clock, 25 %, within 8 inches of joint: YESR

    184.5 ft. - Roots Tap Joint, from 06 to 11 o'clock, 25 %, within 8 inches of joint: YESR

All inspections of P04102Work order 0681588

Observations (21)

DistanceCodeObservation
196.8AMH1:05AM
0MGOMH CONN 3:00 ACTIVE
0AMH12:35AM
0MWL—
0MWM—
137.2RTJ—
178.1RBJ—
184.5RTJ—
69.5RFJ2%
51.6RFJ2%
138.8RTJ—
192.3RTJ—
4TFOPEN
143.1RFJ4%
175.3RTJ—
110.2RFJ2%
108.4TFACTIVE
131RTJ—
180.8RTJ—
178.1RBJ—
163.9RTJ—

Properties (3)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2018-01-03T00:39:38-08:00
