Wastewater/Activity/PacpInspection/1.0Sep 7, 2018, 07:24 AM
- Date
- 09/07/2018
- W/O
- 723896
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00639
- PipeID
- P13065
- Time
- 12:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6024
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_723896_TV16113_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- A 0400
- Downstream MH
- 16 0051
- Dir. of Survey
- Downstream
- Length Surveyed
- 321.3 ft.
- Total Length
- 321.3 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 174
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 302
Observation photos (4)

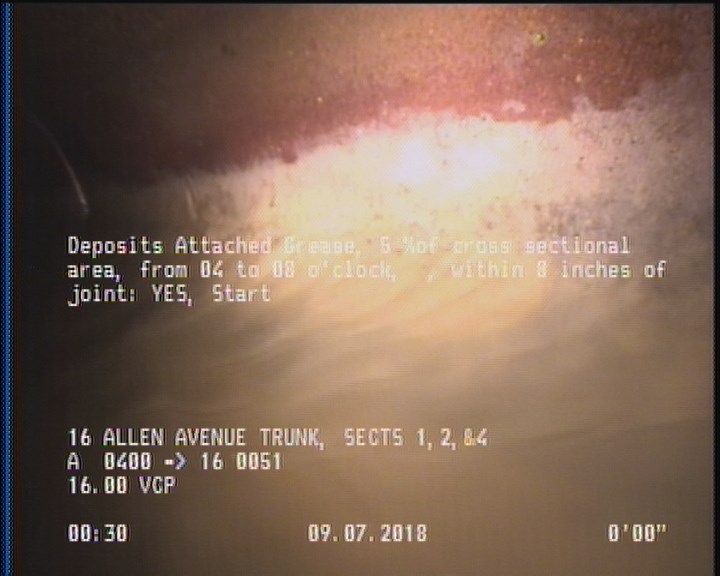

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

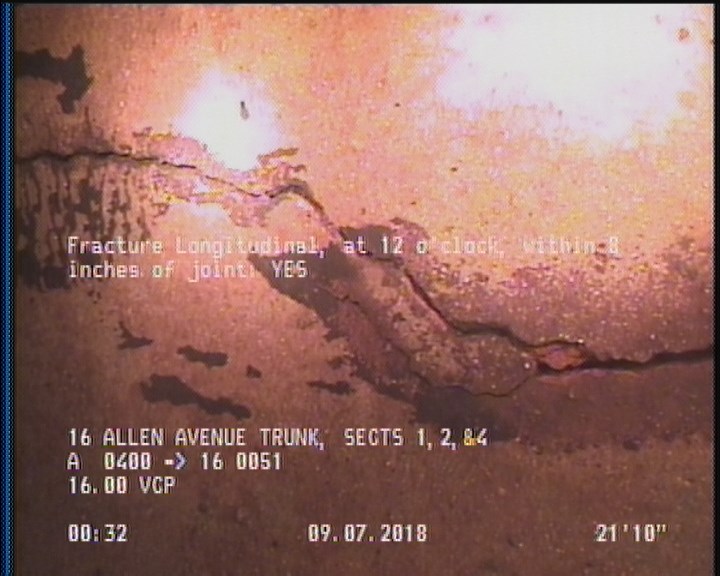

21.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

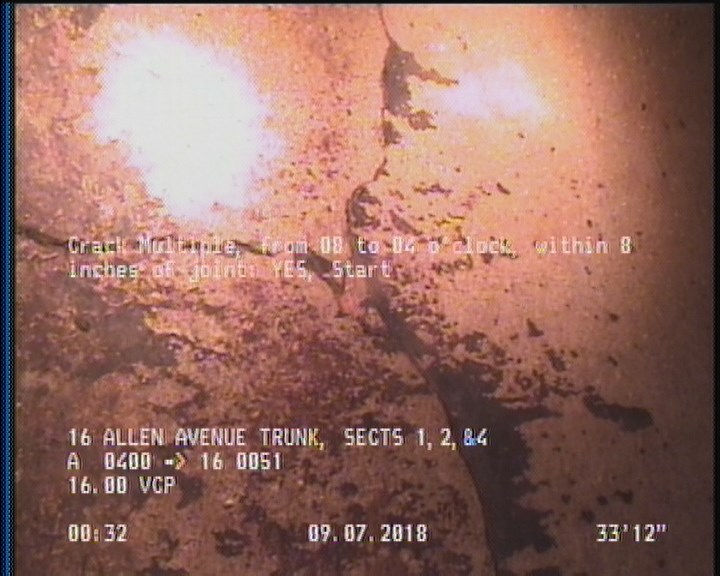

34 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

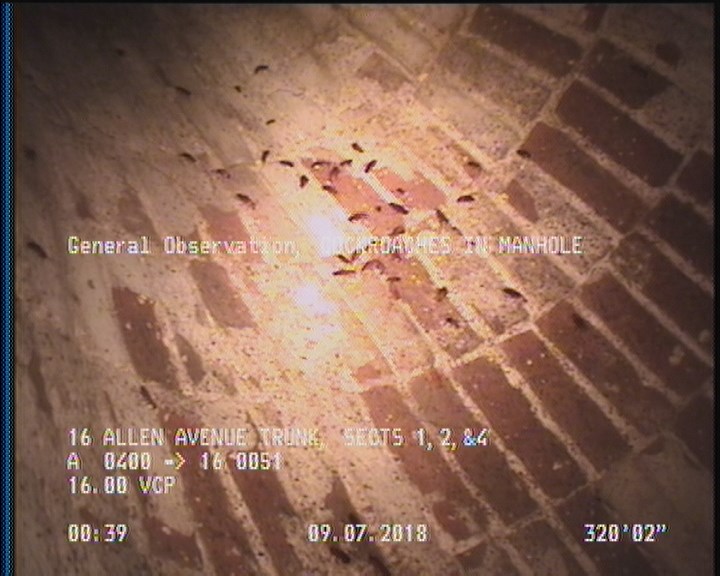

320.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 320.2 | DAGS | — |
| 0 | AMH | A 0400 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 320.2 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 21.8 | FL | — |
| 320.2 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 321.3 | AMH | 16 0051 |
| 34 | CM | — |
Properties (4)
- additional_info
- SC364788
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-07T00:24:23-07:00
