Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 08:21 AM
08 0308_08 0307_09172018_012524.mp4
- Date
- 09/17/2018
- W/O
- 723814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00013
- PipeID
- P00354
- Time
- 1:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6027
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_723814_TV08155_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0308
- Downstream MH
- 08 0307
- Dir. of Survey
- Downstream
- Length Surveyed
- 312.4 ft.
- Total Length
- 312.4 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 186
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 310
Observation photos (4)

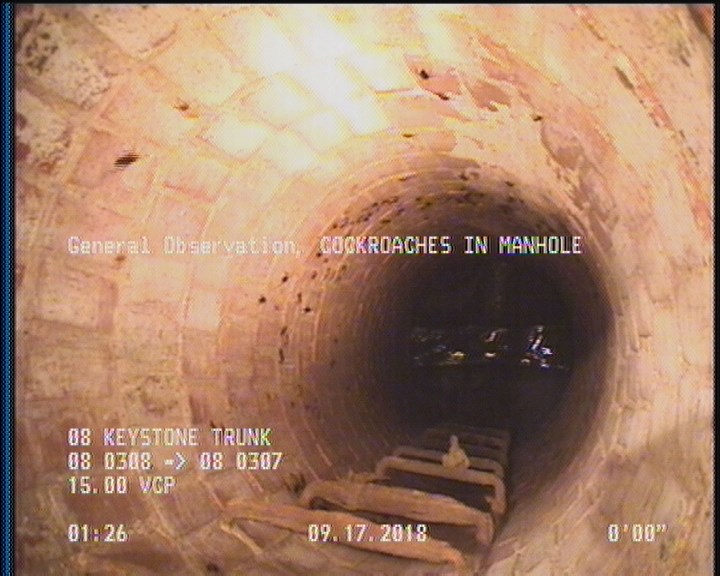

0 ft. - General Observation - COCKROACHES IN MANHOLE

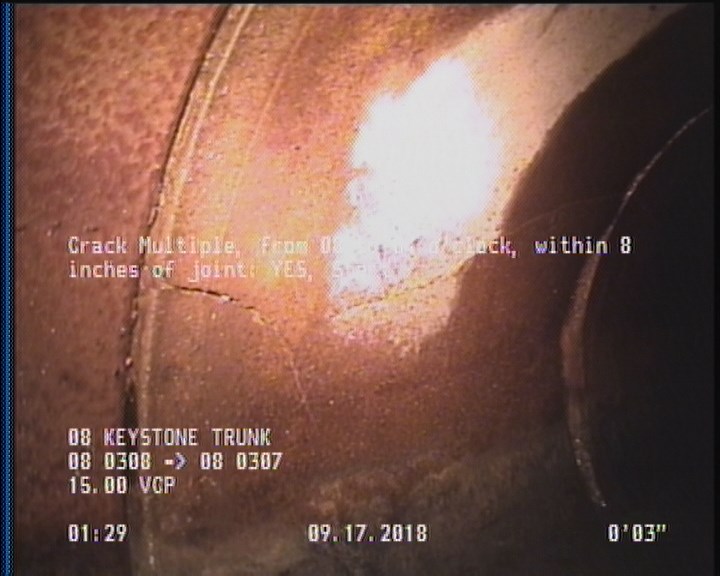

2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

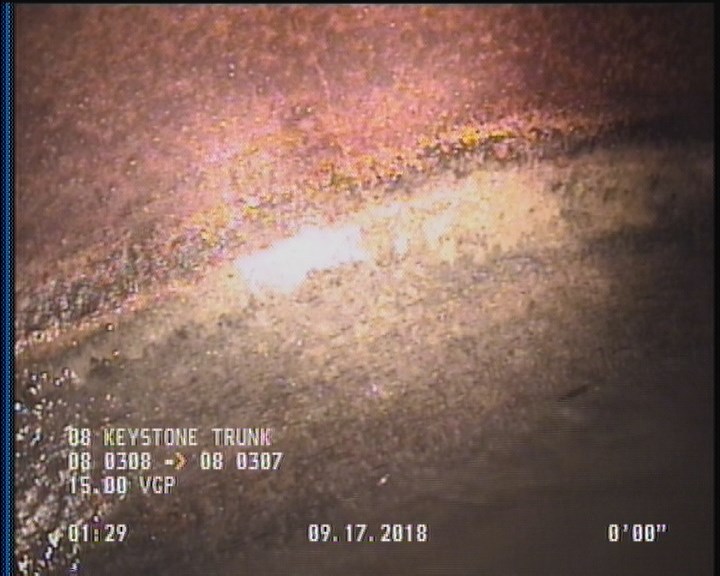

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

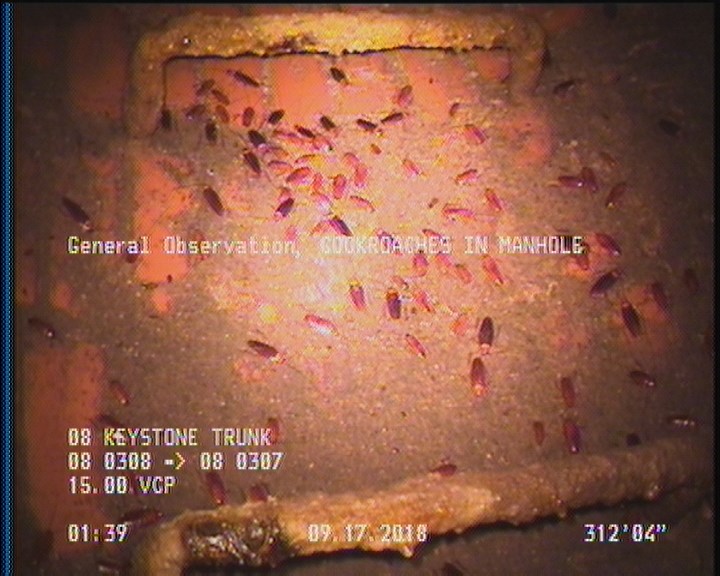

312.4 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 35.4 | TFC | — |
| 134.7 | TFC | — |
| 235 | TFC | — |
| 2 | CM | — |
| 0 | MGO | ACTIVE CONNECTION A MH 3 O'CLOCK |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 0 | AMH | 08 0308 |
| 0 | MWM | — |
| 312.4 | MGO | COCKROACHES IN MANHOLE |
| 82.2 | TFC | — |
| 282.9 | TFC | — |
| 0 | MWL | — |
| 185.9 | TFA | — |
| 309.7 | CM | — |
| 310.1 | DAGS | — |
| 312.4 | AMH | 08 0307 |
Properties (4)
- additional_info
- SC364791
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-17T01:21:38-07:00
