Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 15, 2018, 08:43 PM

  • 05 2424_05 2445_10152018_135246.mp4

Date
10/15/2018
W/O
0734331
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00431
PipeID
P21196
Time
1:43 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7828
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20181015SHO_DISTRICT_5_MAIN_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 2424
Downstream MH
05 2445
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 2424 to 05 2445
MH: 05 2424MH: 05 2445downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 24240 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. MGO - General Observation - OPEN CONNECTION @ 10 IN THE STRUCTURE2 ft. AMH - Downstream Manhole, Survey Ends - MH 2445

Observation photos (2)

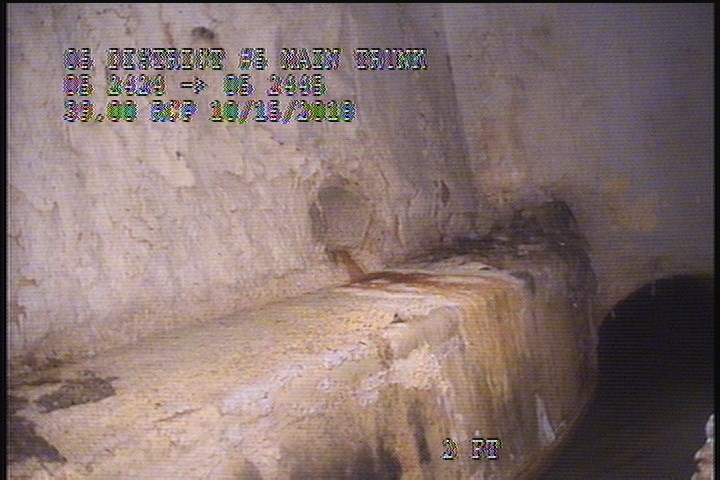

  • General Observation - OPEN CONNECTION @ 10 IN THE STRUCTURE

    2 ft. - General Observation - OPEN CONNECTION @ 10 IN THE STRUCTURE

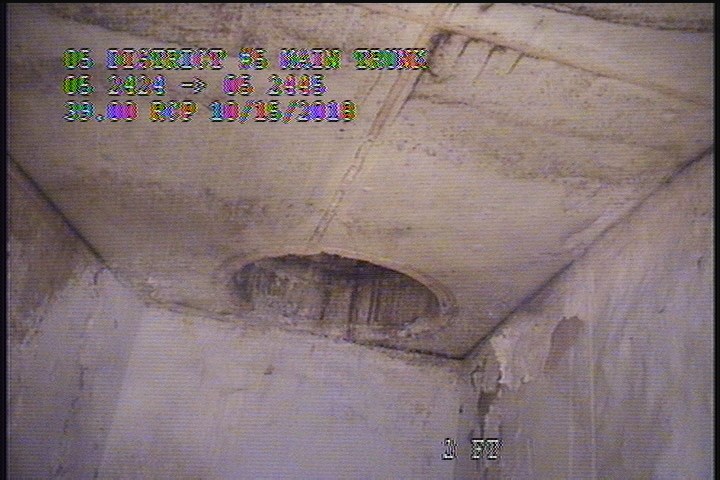

  • Downstream Manhole, Survey Ends - MH 2445

    2 ft. - Downstream Manhole, Survey Ends - MH 2445

All inspections of P21196Work order 0734331

Observations (5)

DistanceCodeObservation
0MWL—
0AMHMH 2424
2MGOOPEN CONNECTION @ 10 IN THE STRUCTURE
2AMHMH 2445
0MWM—

Properties (4)

custom_field_three
NO MAJOR DEFECTS
custom_field_two
4
customer
LACSD
datetime
2018-10-15T13:43:02-07:00
