Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 09:06 AM

  • 08 0305A_08 0305_09172018_020756.mp4

Date
09/17/2018
W/O
723785
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00352
Time
2:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6028
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_723785_TV08154_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0305A
Downstream MH
08 0305
Dir. of Survey
Downstream
Length Surveyed
193.7 ft.
Total Length
193.7 ft.
Structural Index
3
Structural Quick
533F
Structural Rating
114
O&M Index
2
O&M Quick
2G00
O&M Rating
76
Overall Index
3
Overall Quick
—
Overall Rating
190
Pipe schematic from manhole 08 0305A to 08 0305
MH: 08 0305AMH: 08 0305downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 0305A0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION A MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Start8.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"28 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start59.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"110.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"154 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"183.1 ft. HSV - Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES184.5 ft. HSV - Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES186.1 ft. HSV - Hole Soil Visible, from 11 to 12 o'clock, within 8 inches of joint: YES192 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Finish192 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish192 ft. MGO - General Observation - COCKROACHES IN MANHOLE193.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0305, RUN LIST STATES MH AT 172'.193.7 ft. MGO - General Observation - ACTIVE CONNECTION A MH 3 O'CLOCK

Observation photos (6)

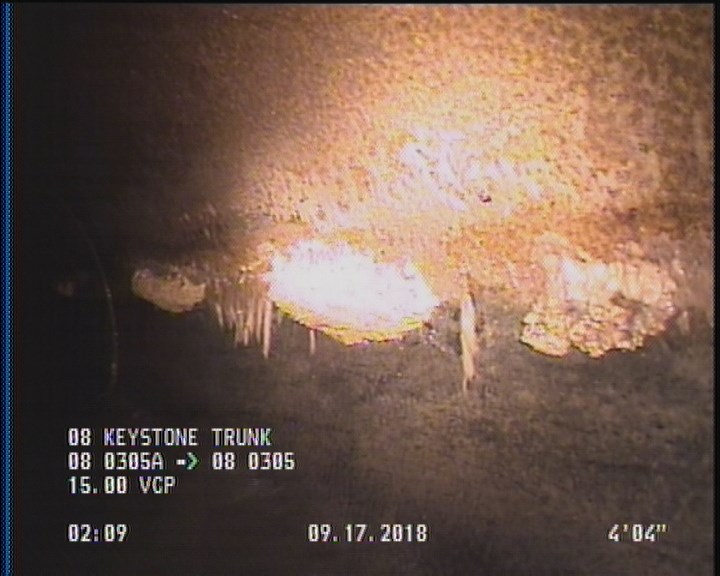

  • Deposits Attached Grease, 5 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Start

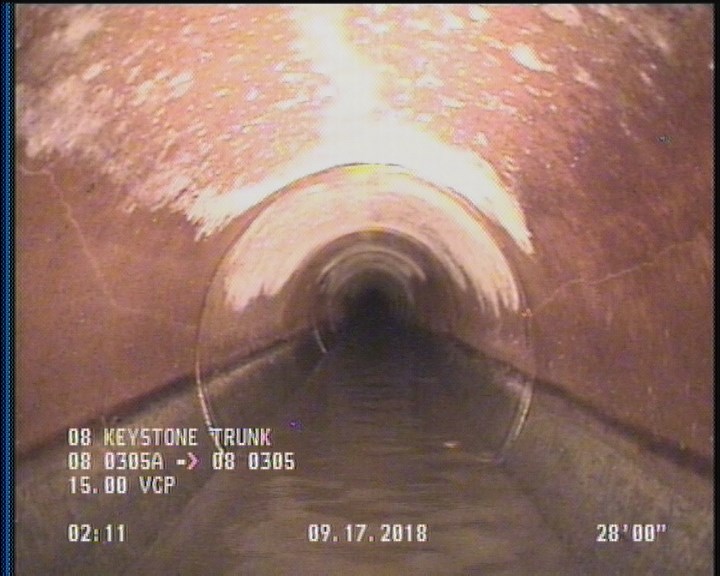

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    28 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

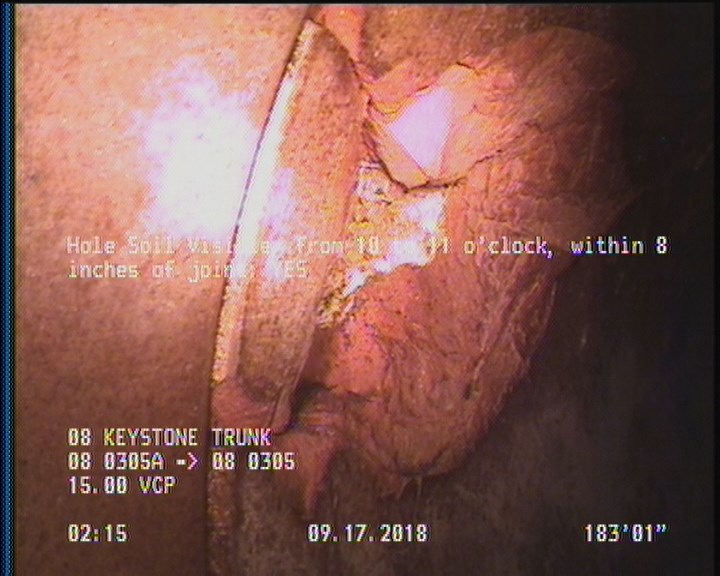

  • Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES

    183.1 ft. - Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES

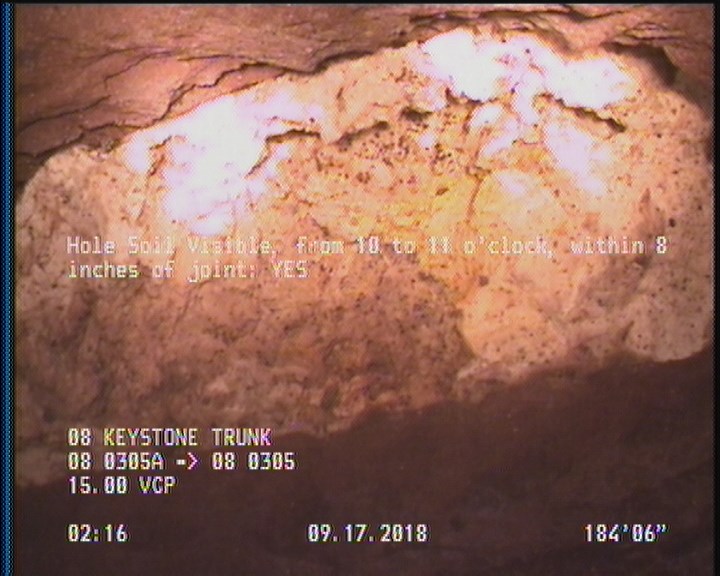

  • Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES

    184.5 ft. - Hole Soil Visible, from 10 to 11 o'clock, within 8 inches of joint: YES

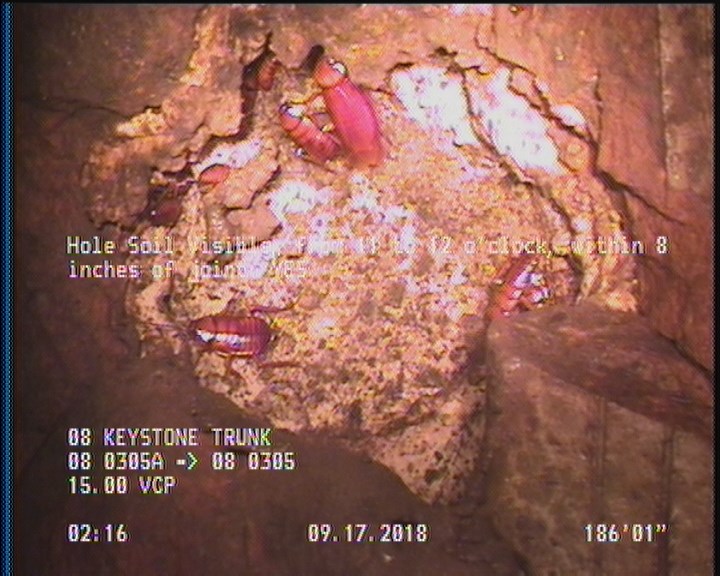

  • Hole Soil Visible, from 11 to 12 o'clock, within 8 inches of joint: YES

    186.1 ft. - Hole Soil Visible, from 11 to 12 o'clock, within 8 inches of joint: YES

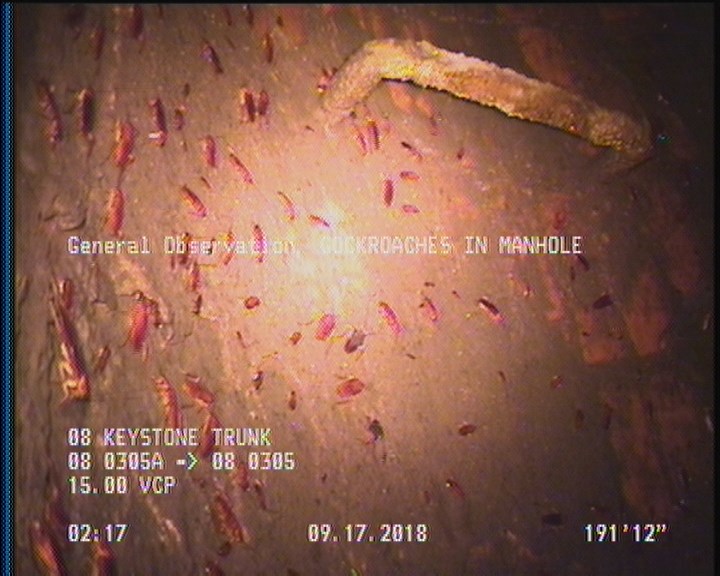

  • General Observation - COCKROACHES IN MANHOLE

    192 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00352Work order 723785

Observations (19)

DistanceCodeObservation
0AMH08 0305A
0MGOCOCKROACHES IN MANHOLE
192DAGS—
183.1HSV—
192CM—
184.5HSV—
0MWL—
193.7AMH08 0305, RUN LIST STATES MH AT 172'.
192MGOCOCKROACHES IN MANHOLE
110.2TFC—
59.4TFC—
8.2TFA—
28CM—
0MWM—
186.1HSV—
154TFC—
2DAGS—
0MGOACTIVE CONNECTION A MH 9 O'CLOCK
193.7MGOACTIVE CONNECTION A MH 3 O'CLOCK

Properties (4)

additional_info
SC364792
custom_field_two
2
customer
LACSD
datetime
2018-09-17T02:06:38-07:00
