Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 08:18 PM

  • 01 0741A_01 0741_10122018_132006.mp4

Date
10/12/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00205
PipeID
P01650
Time
1:18 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1011
Sewer Name
01 COMPTON DISPOSAL TRUNK
City
COMPTON
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20181012SHO_COMPTON_DISPOSAL_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0741A
Downstream MH
01 0741
Dir. of Survey
Downstream
Length Surveyed
218.4 ft.
Total Length
218.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0741A to 01 0741
MH: 01 0741AMH: 01 0741downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 0741A0 ft. MGO - General Observation - ACTIVE CONENCTION IN THE MH @ 90 ft. MWM - Water Mark, 35 %of cross sectional area3.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start3.2 ft. MGO - General Observation - 50% MAG COAT INTACT216.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish216.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish218.4 ft. AMH - Downstream Manhole, Survey Ends - MH 0741

Observation photos (2)

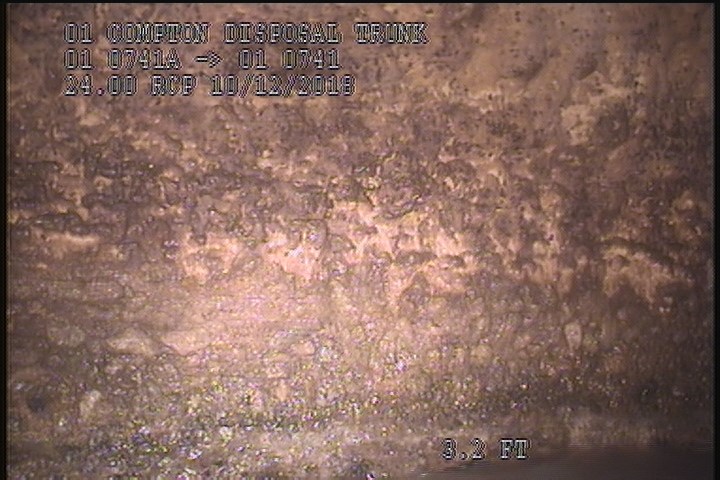

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

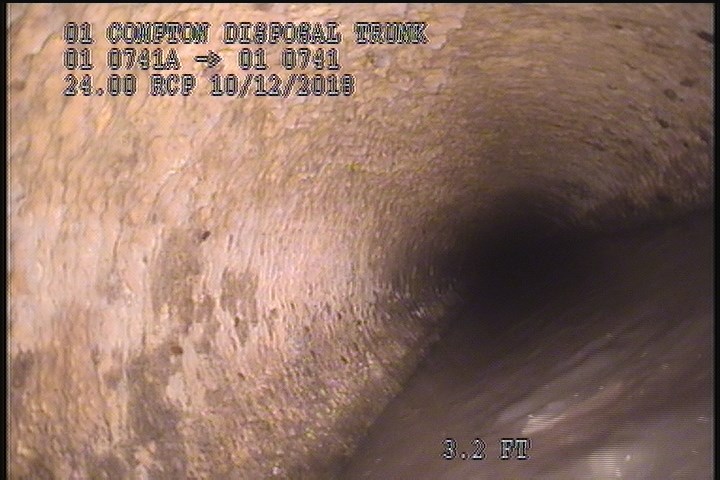

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01650Work order PENDING

Observations (10)

DistanceCodeObservation
216.6SAP—
216.6SSS—
0MWL—
3.2SAP—
0AMHMH 0741A
3.2SSS—
0MGOACTIVE CONENCTION IN THE MH @ 9
3.2MGO50% MAG COAT INTACT
218.4AMHMH 0741
0MWM—

Properties (2)

customer
LACSD
datetime
2018-10-12T13:18:43-07:00
