Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 03:55 PM

  • 01 0744_01 0743_10122018_090311.mp4

Date
10/12/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00205
PipeID
P01653
Time
8:55 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1010
Sewer Name
01 COMPTON DISPOSAL TRUNK
City
COMPTON
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20181012SHO_COMPTON_DISPOSAL_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0744
Downstream MH
01 0743
Dir. of Survey
Downstream
Length Surveyed
375.2 ft.
Total Length
375.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0744 to 01 0743
MH: 01 0744MH: 01 0743downstream0 ft. AMH - Upstream Manhole, Survey Begins - MH 07440 ft. MGO - General Observation - DROP CONNECTION IN THE MH0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 80% MAG COAT INTACT372.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish372.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish375.2 ft. AMH - Downstream Manhole, Survey Ends - MH 0743

Observation photos (2)

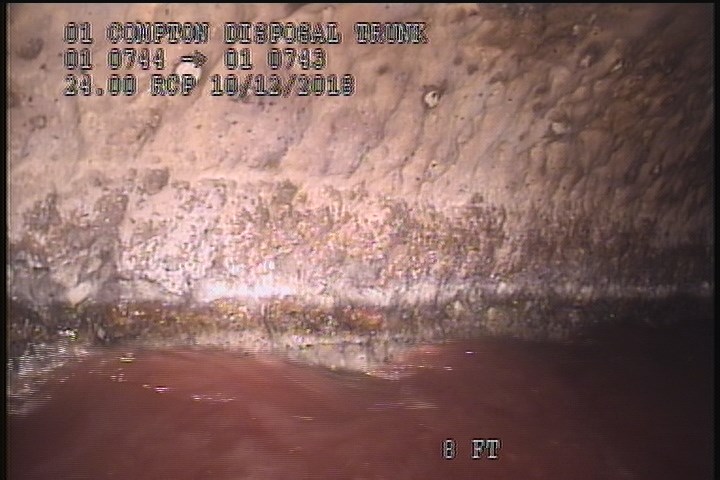

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

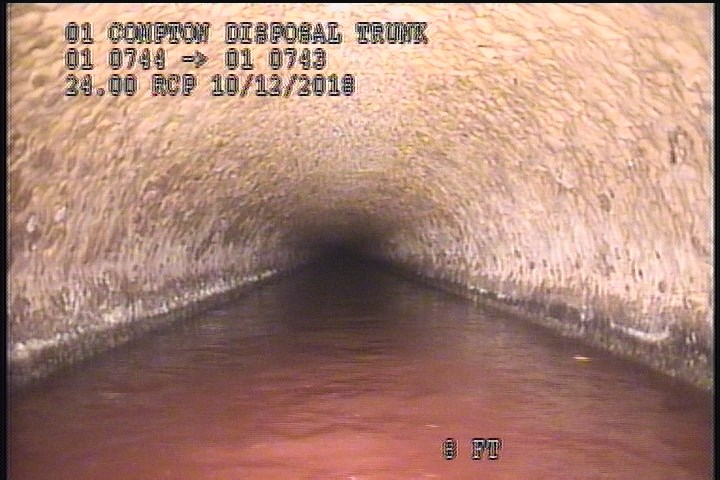

  • General Observation - 80% MAG COAT INTACT

    8 ft. - General Observation - 80% MAG COAT INTACT

All inspections of P01653Work order PENDING

Observations (10)

DistanceCodeObservation
372.4SAP—
8SAP—
372.4SSS—
0AMHMH 0744
0MGODROP CONNECTION IN THE MH
8SSS—
0MWM—
8MGO80% MAG COAT INTACT
375.2AMHMH 0743
0MWL—

Properties (4)

custom_field_three
PROJECTING AGGREGATE
custom_field_two
3
customer
LACSD
datetime
2018-10-12T08:55:25-07:00
