Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 03:12 PM

  • 01 0745_01 0744_10122018_082254.mp4

Date
10/12/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00205
PipeID
P01654
Time
8:12 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1010
Sewer Name
01 COMPTON DISPOSAL TRUNK
City
COMPTON
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20181012SHO_COMPTON_DISPOSAL_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0745
Downstream MH
01 0744
Dir. of Survey
Downstream
Length Surveyed
378.3 ft.
Total Length
378.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0745 to 01 0744
MH: 01 0745MH: 01 0744downstream0 ft. AMH - Upstream Manhole, Survey Begins - MH 07450 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - 60% MAG COAT INTACT2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start378.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish378.3 ft. MGO - General Observation - DROP CONNECTION IN THE MH @ 9378.3 ft. AMH - Downstream Manhole, Survey Ends - MH 0744378.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

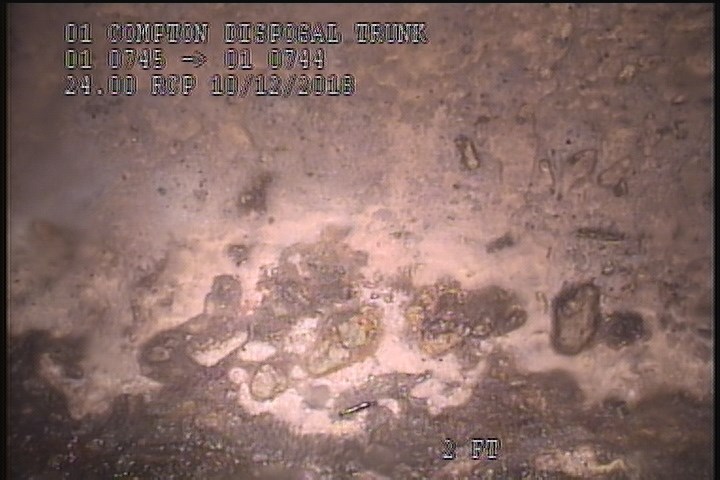

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

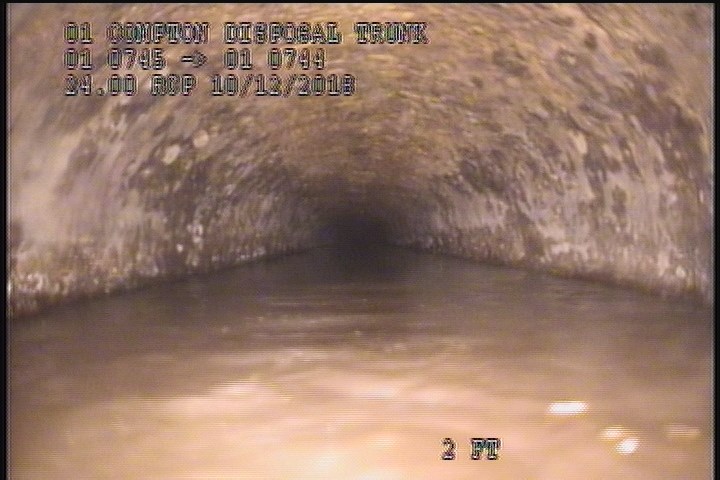

  • General Observation - 60% MAG COAT INTACT

    2 ft. - General Observation - 60% MAG COAT INTACT

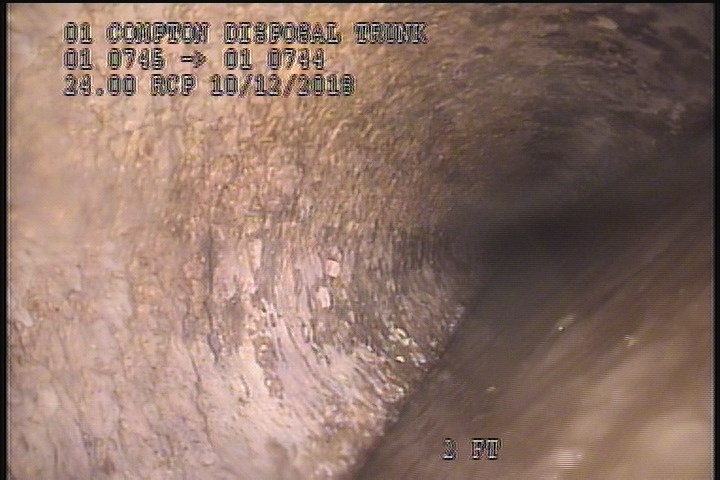

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01654Work order PENDING

Observations (10)

DistanceCodeObservation
0AMHMH 0745
0MWM—
378.3SSS—
2SAP—
2MGO60% MAG COAT INTACT
378.3MGODROP CONNECTION IN THE MH @ 9
0MWL—
2SSS—
378.3AMHMH 0744
378.3SAP—

Properties (5)

additional_info
RFIR
custom_field_three
PROJECTING AGGREGATE
custom_field_two
3
customer
LACSD
datetime
2018-10-12T08:12:41-07:00
